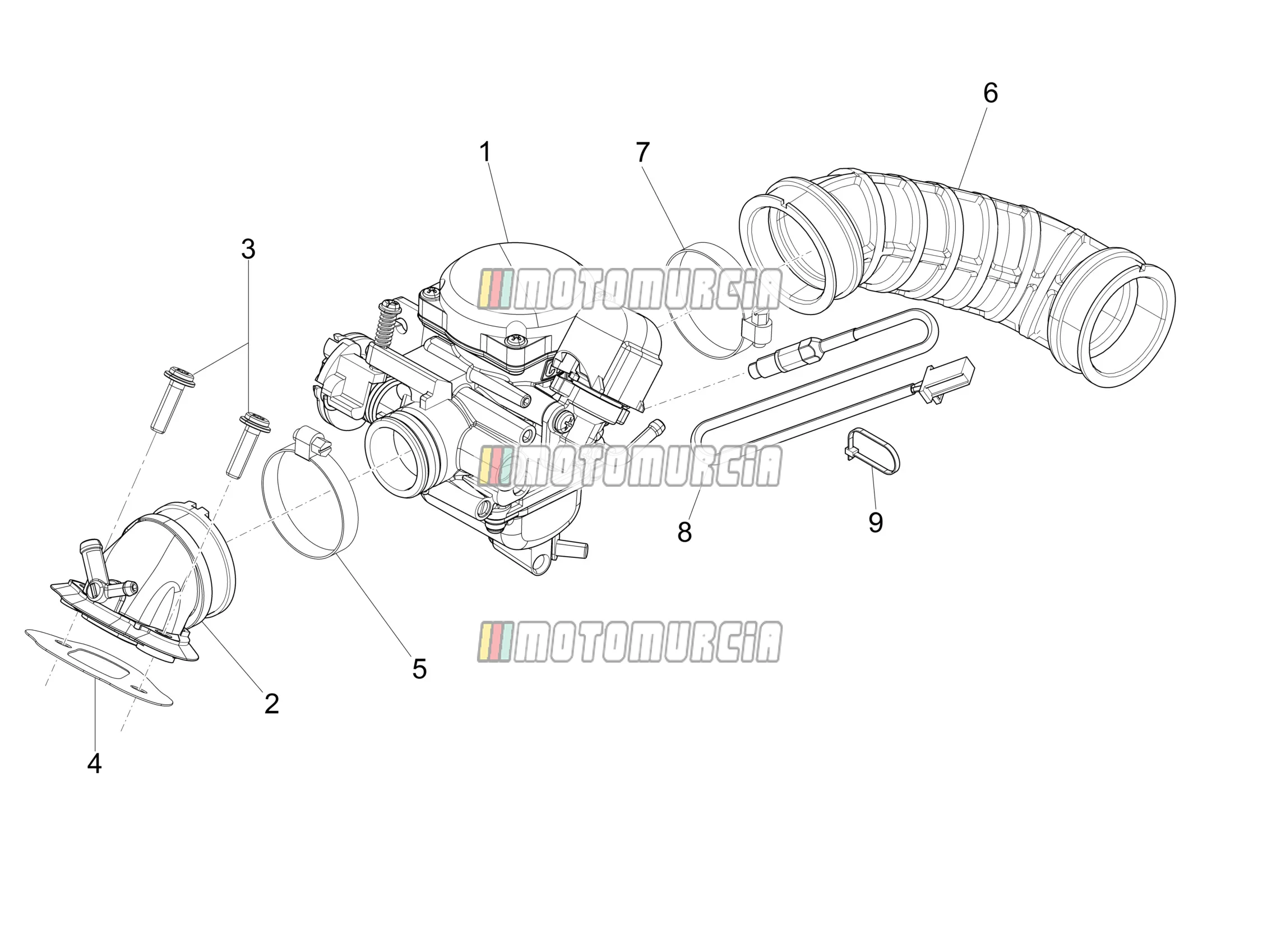

Exploded view — Carburettor, Assembly - Union Pipe

Products

1 Carburetor Keihin CVEK-2704A (P.P) CM156007 No longer available

• CM156007 Carburetor Keihin CVEK-2704A (P.P)
  No longer available

2 Intake Manifold Available 849465

•

  Intake manifold Piaggio Group · 849465 Available · Shipped in 3–5 working days

  € 28,44

  Add to cart

3 Screw Available 018639

•

  Flanged Screw M6x20 Piaggio Group · 018639 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

4 Intake manifold Gasket Available 871167

•

  Gasket Piaggio Group · 871167 Available · Shipped in 3–5 working days

  € 1,73

  Add to cart

5 Hose Clamp Available 709532

• 709532 Hose Clamp


  Clamp Piaggio Group · 1A000833 ↻ Replaces 709532, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 10,74

  Add to cart

6 Air bellow Available 829001

•

  Intake Manifold Piaggio Group · 829001 Available · Shipped in 3–5 working days

  € 30,31

  Add to cart

7 Hose Clamp Available 709532

• 709532 Hose Clamp


  Clamp Piaggio Group · 1A000833 ↻ Replaces 709532, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 10,74

  Add to cart

8 Resistor module Available 82961R

• 82961R Resistor module


  Resistor Piaggio Group · 82961R6 ↻ Replaces 82961R, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 33,64

  Add to cart

9 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart
