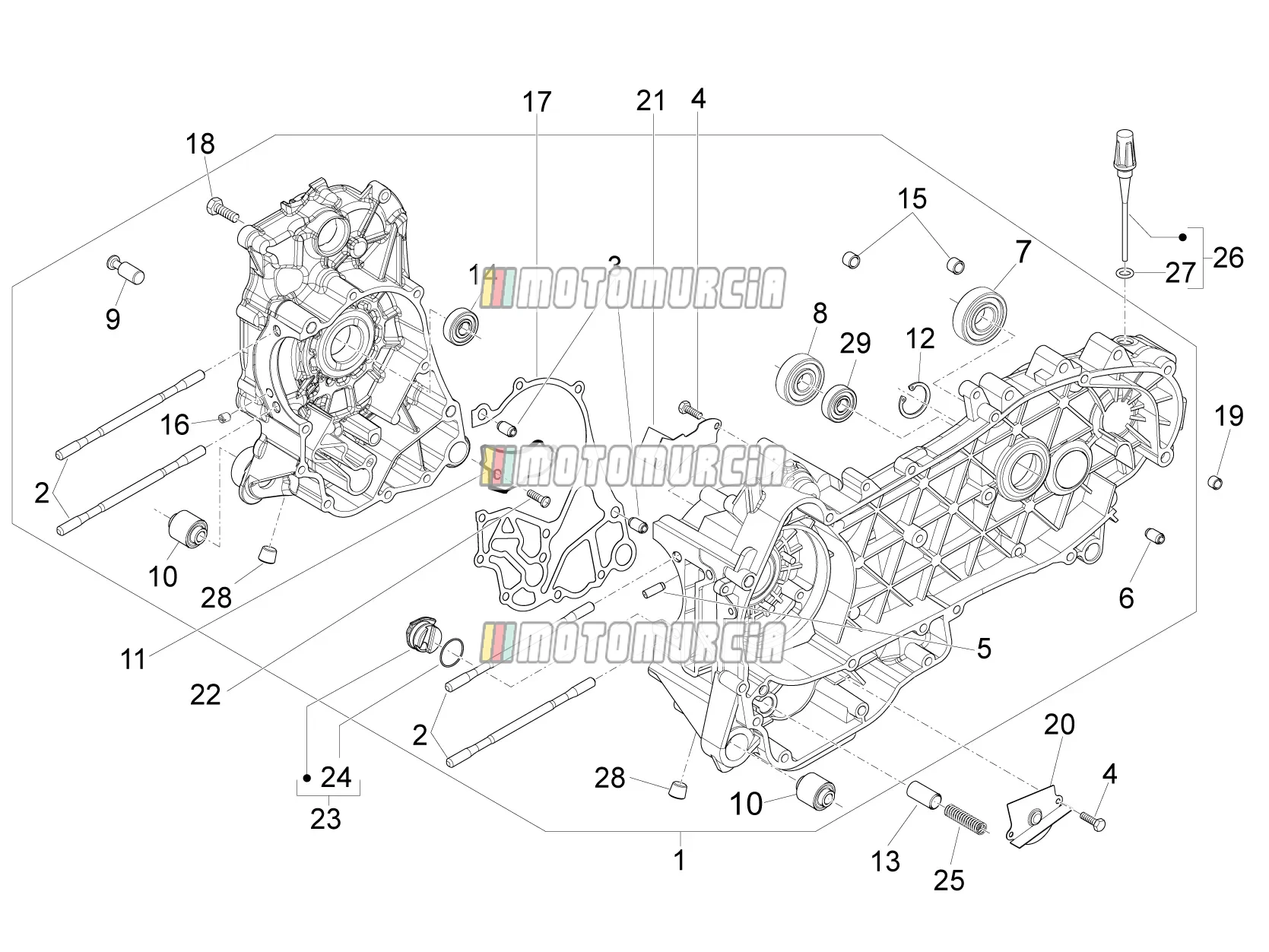

Exploded view — Crankcase

Products

1 Complete crankcase 1st category. CM1485075001 No longer available

• CM1485075001 Complete crankcase 1st category.
  No longer available
• CM1485075002 Crankcase assy
  No longer available

2 Stud bolt Available 411295

• 411295 Stud bolt Quantity needed: 4


  Spacer bolt Piaggio Group · 1A003628R ↻ Replaces 411295, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 11,52

  Add to cart
•

  Stud Screw M8x165 Piaggio Group · 877287 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 3,34

  Add to cart

3 Pin 6.5x9.5x15 mm Backorder 239388

• 239388 Pin 6.5x9.5x15 mm Quantity needed: 2


  Adapter Sleeve 9,5x15 Piaggio Group · B015956 ↻ Replaces 239388, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 1,32

  Add to cart

4 Screw Available 830061

•

  Flanged Screw M5x16 Piaggio Group · 830061 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

5 Nozzle Available 484034

•

  Jet Piaggio Group · 484034 Available · Shipped in 3–5 working days

  € 8,58

  Add to cart

6 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available · Shipped in 3–5 working days

  € 1,65

  Add to cart

7 Bearing Available 83018R

•

  Radial bearing TM6302Y, 15x42x13 mm Piaggio Group · 83018R · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 11,14

  Add to cart

8 Radial Ball Bearing Available 83023R

• 83023R Radial Ball Bearing


  Ball bearing 20x47x14 mm Piaggio Group · 1A024412R ↻ Replaces 83023R, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 12,79

  Add to cart

9 Springs fixing pin Available 483785

•

  Bolts Piaggio Group · 483785 Available · Shipped in 3–5 working days

  € 5,78

  Add to cart

10 Silentblock - engine mount Available 486081

•

  Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 10,29

  Add to cart

11 Plate Backorder 876657

•

  Guide Plate Piaggio Group · 876657 Backorder · Shipped in 2–4 weeks

  € 5,07

  Add to cart

12 Circlip 25x26.9x1.2 Available 000674

• 000674 Circlip 25x26.9x1.2


  Circlip 25x26,9x1,2 mm Piaggio Group · B015959 ↻ Replaces 000674, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

13 Oil pressure valve Available 829661

•

  Oil pressure Valve Piaggio Group · 829661 Available · Shipped in 3–5 working days

  € 12,62

  Add to cart

14 Oil seal Available 82878R

•

  Shaft Seal 20x32x7 mm Piaggio Group · 82878R Available · Shipped in 3–5 working days

  € 14,36

  Add to cart

15 Locating dowel Ø11x10 mm Available 478115

• 478115 Locating dowel Ø11x10 mm Quantity needed: 2


  Adapter Sleeve 11x8,1x10 Piaggio Group · B015957 ↻ Replaces 478115, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,26

  Add to cart

16 Nozzle D 1.1 Available 844582

•

  Jet Piaggio Group · 844582 Available · Shipped in 3–5 working days

  € 8,68

  Add to cart

17 Gasket - crankcase Available 875111

•

  Housing Gasket Piaggio Group · 875111 Available · Shipped in 3–5 working days

  € 18,11

  Add to cart

18 Screw Available B016425

•

  Flanged Screw M6x60 Piaggio Group · B016425 · Quantity needed: 11 Available · Shipped in 3–5 working days

  € 1,82

  Add to cart

19 Dowel pin Available 277916

•

  Adapter Sleeve Piaggio Group · 277916 Available · Shipped in 3–5 working days

  € 7,27

  Add to cart

20 Lower oil bulkhead Available 483767

•

  Oil Partition Plate, bottom Piaggio Group · 483767 Available · Shipped in 3–5 working days

  € 10,71

  Add to cart

21 Upper oil bulkhead Available 485047

•

  Oil Partition Plate, top Piaggio Group · 485047 Available · Shipped in 3–5 working days

  € 13,75

  Add to cart

22 Cross head cylinder head screw M5x10 Available 018575

• 018575 Cross head cylinder head screw M5x10


  Screw M5x10 Piaggio Group · 1A003111 ↻ Replaces 018575, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 3,06

  Add to cart

23 Filter door insert Available 845861

•

  Filter Insert Piaggio Group · 845861 Available · Shipped in 3–5 working days

  € 11,27

  Add to cart

24 O-Ring Available 431065

•

  Oil seal Piaggio Group · 431065 Available · Shipped in 3–5 working days

  € 1,21

  Add to cart

25 Spring Available 485655

•

  Spring Piaggio Group · 485655 Available · Shipped in 3–5 working days

  € 1,65

  Add to cart

26 Complete oil level dipstick Available 832130

•

  Oil dipstick Piaggio Group · 832130 Available · Shipped in 3–5 working days

  € 6,34

  Add to cart

27 Gasket ring Available 827085

•

  Oil seal 14,43x9,19x2,62 mm Piaggio Group · 827085 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

28 Plug M12x1.5 Available 411311

• 411311 Plug M12x1.5 Quantity needed: 2


  Screw Plug M12x1.5 Piaggio Group · B015433 ↻ Replaces 411311, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 8,86

  Add to cart

29 Oil seal Available 82898R

•

  Shaft Seal 20x30x7 mm Piaggio Group · 82898R Available · Shipped in 3–5 working days

  € 13,46

  Add to cart
