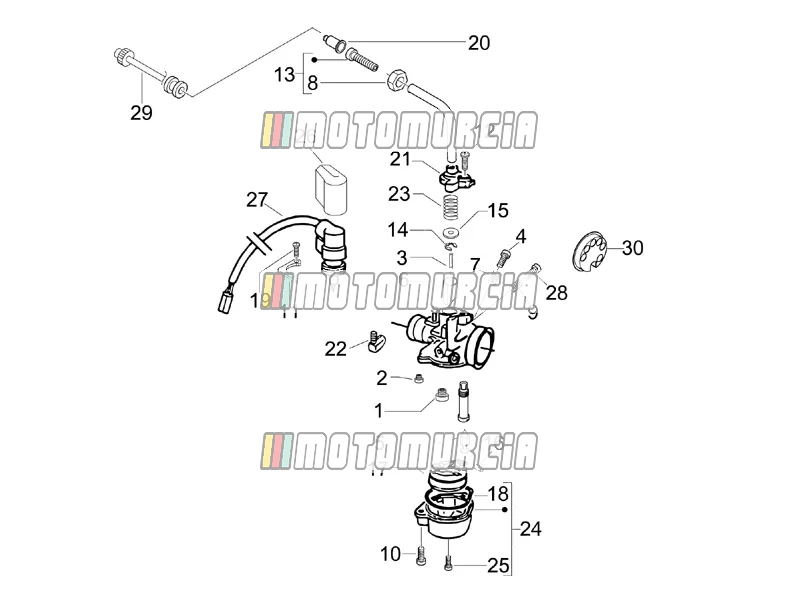

Exploded view — Carburetor's Components

‹ Back to model
Piaggio Liberty 50 2T 2008 Piaggio Liberty 50 2T 2008
Carburetor's Components

Products

1 Main jet (53) Available CM101704
2 Idle jet (32) Available CM102103
  • Idle Jet Piaggio Group · CM102103 Available
    € 4,34
3 Conical pin Available CM107510
4 Air adjuster screw Available CM107701
5 Fuel closing needle Available CM128501
  • Float Needle Piaggio Group · CM128501 Available
    € 13,94
6 Gas valve (17.5) Available CM141710
7 Spring Available 085285
  • Spring Piaggio Group · 085285 Available
    € 1,37
8 Nut Available 120074
  • Standard nut Piaggio Group · 120074 Available
    € 2,06
9 Spring Available 152608
  • Spring Piaggio Group · 152608 Available
    € 1,40
10 Screw Available 288862
  • Screw Piaggio Group · 288862 · Quantity needed: 2 Available
    € 3,36
11 Plate Available 288863
  • Bracket Piaggio Group · 288863 Available
    € 2,77
12 Screw Available 288865
  • Screw Piaggio Group · 288865 Available
    € 1,40
14 Seeger Available 288872
15 Conical pin clip Available 288873
16 Float pin Available 288881
  • Pin Piaggio Group · 288881 Available
    € 2,06
17 Float Available 482916
19 Screw Available 289575
  • Screw Piaggio Group · 289575 · Quantity needed: 2 Available
    € 2,41
20 Throttle cable cap Available 875551
  • Bonnet Piaggio Group · 875551 Available
    € 8,74
21 Gas valve cover Available 431654
22 Complete oil valve Available 436206
  • Oil Valve Piaggio Group · 436206 Available
    € 13,79
23 Valve gas return spring Available 482942
  • Spring Piaggio Group · 482942 Available
    € 1,69
24 Fuel chamber Available 484704
25 Screw Available 432456
  • Screw Piaggio Group · 432456 Available
    € 8,91
26 Auto choke Cover Backorder 485671
  • Covering Cap Piaggio Group · 485671 Backorder
    € 10,16
27 Starter plunger Available CM105905
28 Gas valve adj.screw Available 828074
29 Doub. carb. trans. Available 583334
30 Air gauger Available 827892
31 Fuel hose Backorder CM112001
