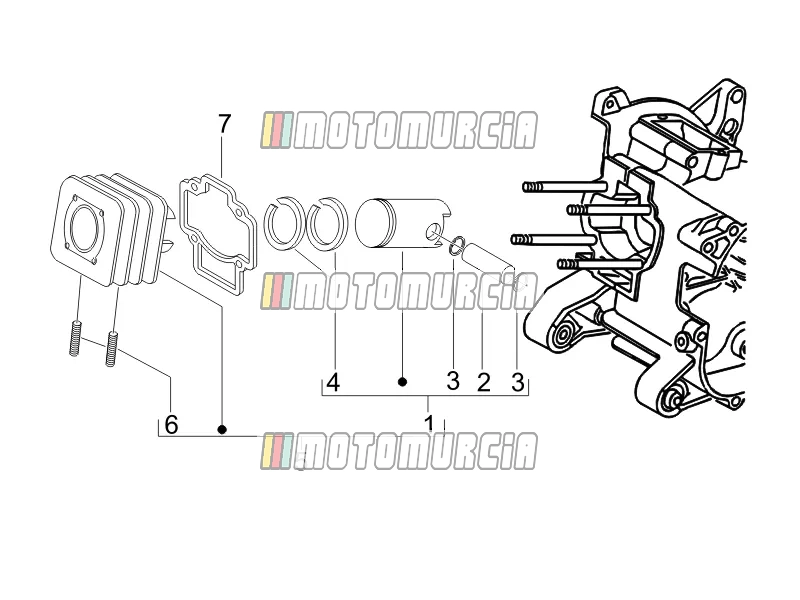

Exploded view — Cylinder-piston-wrist Pin Unit

Products

1 Piston assy 3cat.(O) Available 4878020003

•

  Piston Cat. O Piaggio Group · 4878020003 Available

  € 70,45

  Add to cart
• 487875 Piston
  No longer available
•

  Piston Cat. P Piaggio Group · 4878020004 Available

  € 70,45

  Add to cart
•

  Piston Cat. M Piaggio Group · 4878020001 Available

  € 70,45

  Add to cart
•

  Piston Cat. N Piaggio Group · 4878020002 Available

  € 70,45

  Add to cart
• 825185 Piston kit (40,00 mm, 50ccm)
  No longer available

2 Piston pin Available 239404

•

  Piston Pin Ø 12,00 mm Piaggio Group · 239404 Available

  € 5,38

  Add to cart

3 Snap ring - piston pin Available 239455

•

  Piston Clip Piaggio Group · 239455 · Quantity needed: 2 Available

  € 0,99

  Add to cart

4 Gasket ring 40mm (D=40,00 mm, 50 ccm) Available 825416

•

  Piston Ring Ø 40,00 mm, thickness: 1,40 mm Piaggio Group · 825416 · Quantity needed: 2 Available

  € 6,72

  Add to cart
•

  Piston Ring 2. oversize Ø 40,40 mm Piaggio Group · 827854 · Quantity needed: 2 Available

  € 34,19

  Add to cart

5 Cylinder kit Available 831116

•

  Cylinder Piaggio Group · 831116 Available

  € 196,32

  Add to cart

6 Stud bolt (M6) Available 239397

•

  Stud Screw M6x33 Piaggio Group · 239397 · Quantity needed: 2 Available

  € 0,99

  Add to cart

7 Gasket - cylinder base Available 286810

•

  Cylinder Base Gasket Piaggio Group · 286810 Available

  € 4,21

  Add to cart
