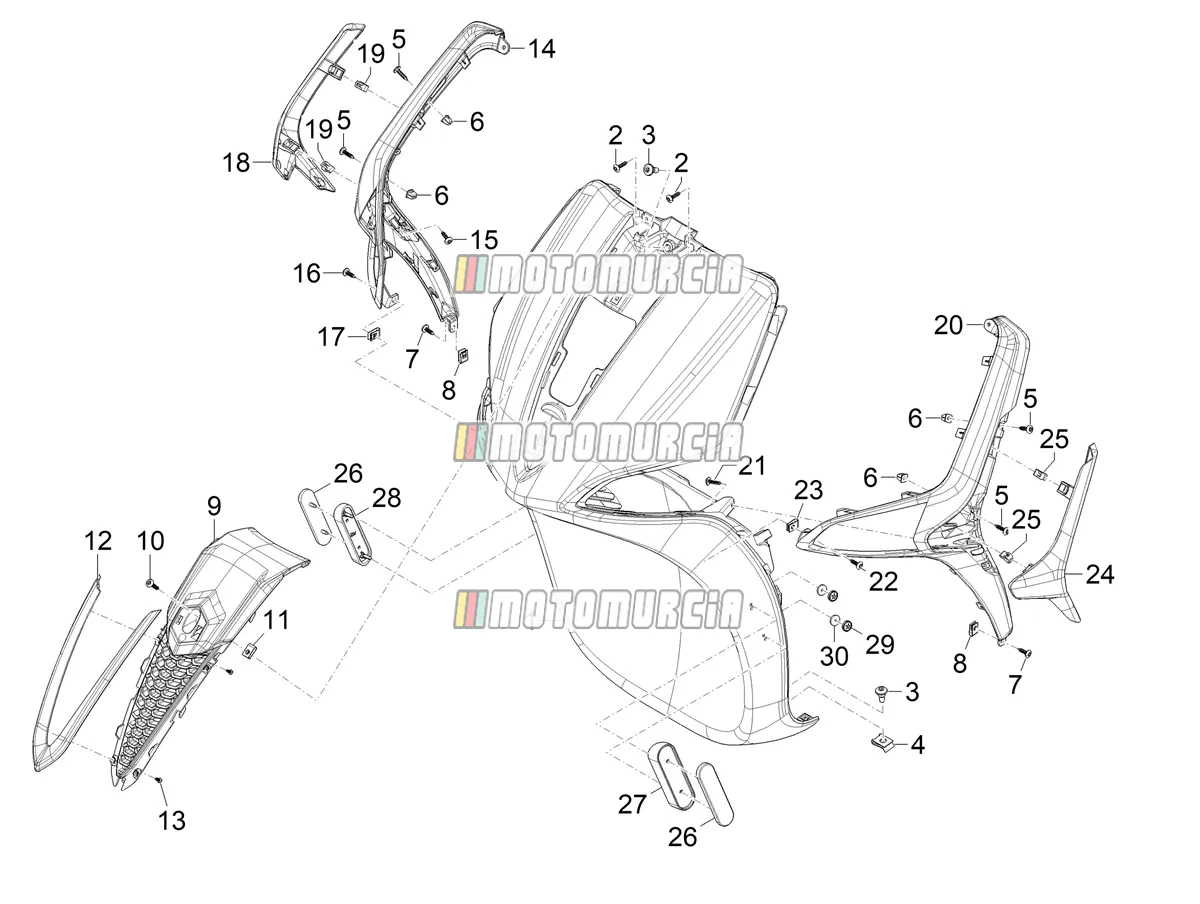

Exploded view — Front Shield

‹ Back to model
Piaggio Liberty 50 E3 (NAFTA) 2027 Piaggio Liberty 50 E3 (NAFTA) 2027
Front Shield

Products

1 1B003679410D27 1B003679410D27 No longer available
2 Screw (4x16) Available CM180701
  • Sheet Metal Screw 4x16 mm Piaggio Group · CM180701 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
3 Screw Available CM179202
  • Screw Piaggio Group · CM179202 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 1,48
4 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,04
5 Screw Available CM178605
  • Sheet Metal Screw Piaggio Group · CM178605 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 1,45
6 Headstock plug Available 157716
  • Plug Piaggio Group · 157716 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
7 Screw (4.2 x 16) Available CM178601
  • Sheet Metal Screw 4,2x16 mm Piaggio Group · CM178601 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,45
8 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
9 COPRISTERZO ANTERIORE Available 1B0116160000C
  • COPRISTERZO ANTERIORE Piaggio Group · 1B0116160000C Available · Shipped in 3–5 working days
    € 33,67
10 Self-tap screw Available CM178609
  • Thread Screw Piaggio Group · CM178609 Available · Shipped in 3–5 working days
    € 1,48
11 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 Available · Shipped in 3–5 working days
    € 0,99
12 CORNICE COPRISTERZO Backorder 1B01161500090
  • CORNICE COPRISTERZO Piaggio Group · 1B01161500090 Backorder · Shipped in 2–4 weeks
    € 20,21
  • CORNICE COPRISTERZO Piaggio Group · 1B011615000K2 Available · Shipped in 3–5 working days
    € 20,21
13 Screw Available 015727
  • Sheet Metal Screw Piaggio Group · 015727 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
14 DEFLETTORE ANTERIORE DX Available 1B0116050000C
  • DEFLETTORE ANTERIORE DX Piaggio Group · 1B0116050000C Available · Shipped in 3–5 working days
    € 20,21
15 Screw (4x16) Available CM180701
  • Sheet Metal Screw 4x16 mm Piaggio Group · CM180701 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 0,99
16 Screw (4.2 x 16) Available CM178601
17 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 Available · Shipped in 3–5 working days
    € 0,99
18 PROTEZIONE DEFLETTORE ANTERIORE DX Available 1B01161800090
19 Clip nuts Available D9004468091
  • Clamp Piaggio Group · D9004468091 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 5,15
20 DEFLETTORE ANTERIORE SX Available 1B0116040000C
  • DEFLETTORE ANTERIORE SX Piaggio Group · 1B0116040000C Available · Shipped in 3–5 working days
    € 20,21
21 Screw (4x16) Available CM180701
  • Sheet Metal Screw 4x16 mm Piaggio Group · CM180701 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 0,99
22 Screw (4.2 x 16) Available CM178601
23 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 Available · Shipped in 3–5 working days
    € 0,99
24 PROTEZIONE DEFLETTORE ANTERIORE SX Available 1B01161700090
25 Clip nuts Available D9004468091
  • Clamp Piaggio Group · D9004468091 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 5,15
26 Reflector Available 294883
  • Reflector oval, yellow Piaggio Group · 294883 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 8,58
27 LH Front reflector support 1B003604 No longer available
  • 1B003604 LH Front reflector support
    No longer available
28 RH Front reflector support 1B003605 No longer available
  • 1B003605 RH Front reflector support
    No longer available
29 Plate Available 5A000388
  • Sheet nut Piaggio Group · 5A000388 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 1,40
30 Spacer Available 5A000387
  • Spacer Piaggio Group · 5A000387 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
