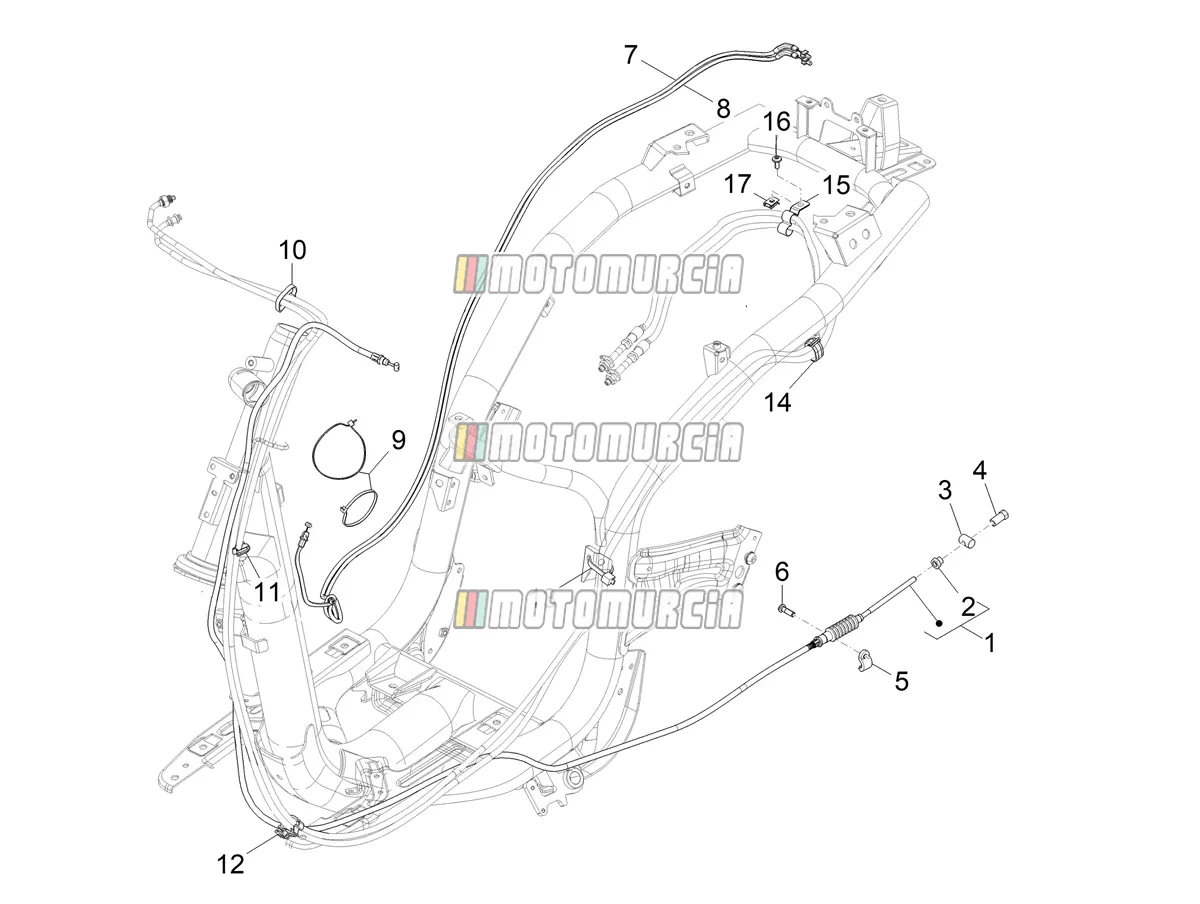

Exploded view — Transmissions

Products

1 Brake Cable Rear Available 1C005816

• 1C005816 Brake Cable Rear


  No description available Piaggio Group · 1C005816 Available · Shipped in 3–5 working days

  € 28,05

  Add to cart


  Brake Cable Rear Piaggio Group · 1C005816 Available · Shipped in 3–5 working days

  € 28,05

  Add to cart

2 REGISTRO FRENO Available 1C004821

•

  REGISTRO FRENO Piaggio Group · 1C004821 Available · Shipped in 3–5 working days

  € 10,70

  Add to cart

3 Adjuster pin Available 179640

•

  Trunnion Piaggio Group · 179640 Available · Shipped in 3–5 working days

  € 9,05

  Add to cart

4 Registro freno posteriore Available 270310

•

  Adjustment Screw Piaggio Group · 270310 Available · Shipped in 3–5 working days

  € 6,30

  Add to cart

5 Plate Available 564497

•

  Plate Piaggio Group · 564497 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

6 Screw Available B016774

•

  Hexagon Screw M6x25 Piaggio Group · B016774 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

7 Seat emergency opening transmission Available CM012855

•

  Seat release cable Piaggio Group · CM012855 Available · Shipped in 3–5 working days

  € 13,31

  Add to cart

8 Saddle cable Available CM012856

•

  Bowden cable Piaggio Group · CM012856 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 13,85

  Add to cart

9 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

10 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart

11 Strap Available 216369

• 216369 Strap


  Clamp for on-board tools Piaggio Group · 298729 ↻ Replaces 216369, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

12 Non return spring Available CM006912

•

  Clamp Piaggio Group · CM006912 Available · Shipped in 3–5 working days

  € 9,20

  Add to cart

13 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart

14 Non return spring l=27 Available CM006904

•

  Clamp length: 27mm Piaggio Group · CM006904 Available · Shipped in 3–5 working days

  € 2,95

  Add to cart

15 Wiring clip Available 1C001527

•

  Clamp Piaggio Group · 1C001527 Available · Shipped in 3–5 working days

  € 6,22

  Add to cart

16 Screw Available CM179301

•

  Screw M6x16 Piaggio Group · CM179301 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

17 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart
