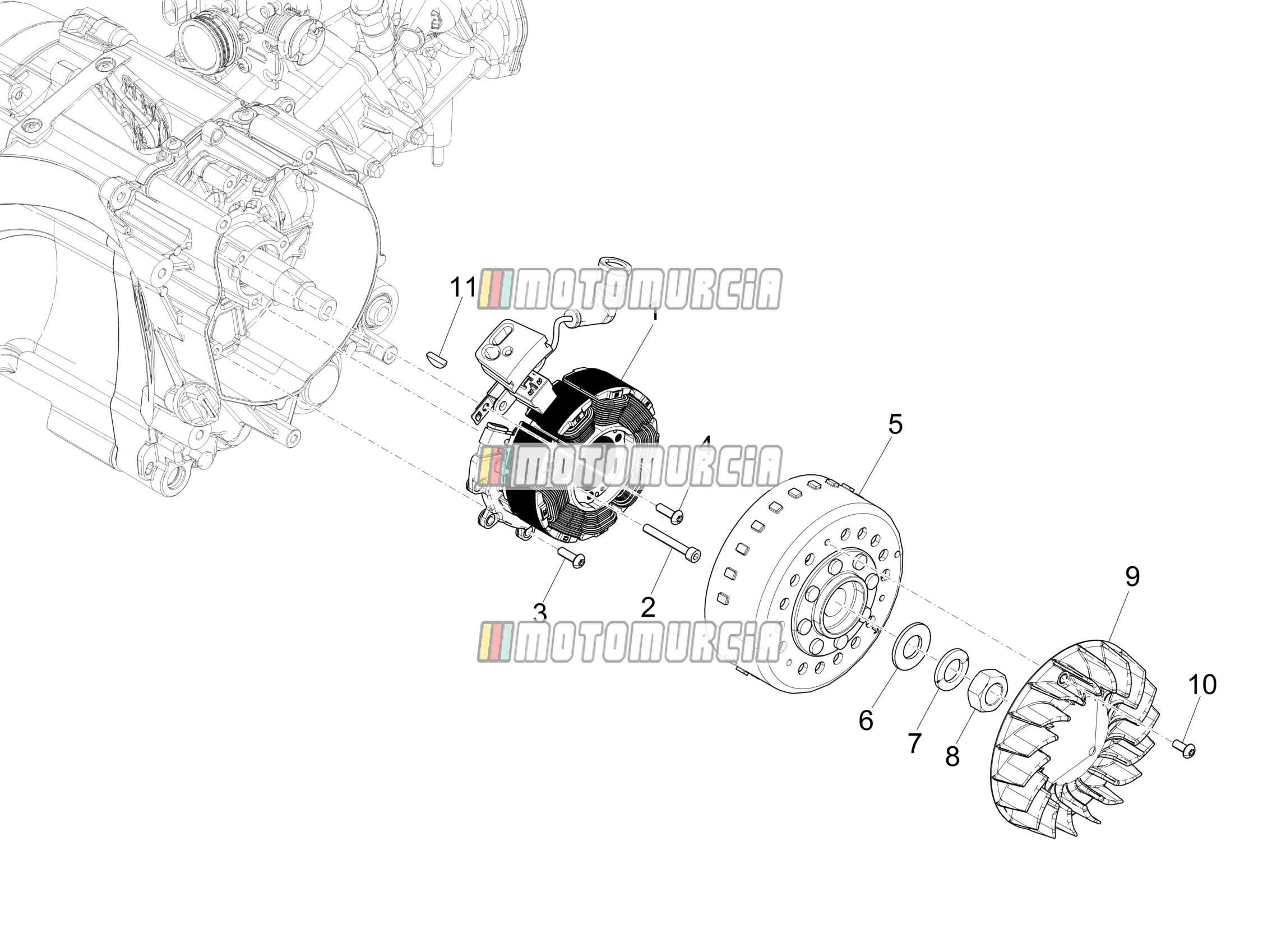

Exploded view — Flywheel Magneto

Products

1 Stator Available 1A013291

•

  Armature Plate / Stator Plate Piaggio Group · 1A013291 Available · Shipped in 3–5 working days

  € 256,65

  Add to cart

2 Screw (CYLIND) Available 1A005637

•

  Screw Piaggio Group · 1A005637 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 2,59

  Add to cart

3 Screw Available 1A003477

•

  Screw Piaggio Group · 1A003477 · Quantity needed: 5 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

4 Screw Available 1A003477

•

  Screw Piaggio Group · 1A003477 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

5 Rotor, assy. Available 1A006220

•

  Flywheel Piaggio Group · 1A006220 Available · Shipped in 3–5 working days

  € 142,37

  Add to cart

6 Flat washer 32x16,1x2.5 Available 1A003712

•

  Washer Piaggio Group · 1A003712 Available · Shipped in 3–5 working days

  € 3,18

  Add to cart

7 Belleville spring Available B018464

•

  Washer Piaggio Group · B018464 Available · Shipped in 3–5 working days

  € 8,03

  Add to cart

8 Nut M16x1,25 Available B015996

•

  Standard nut Piaggio Group · B015996 Available · Shipped in 3–5 working days

  € 5,66

  Add to cart

9 Cooling fan (generator) Available 1A006071

•

  Fan Wheel Piaggio Group · 1A006071 Available · Shipped in 3–5 working days

  € 45,39

  Add to cart

10 Screw Available 1A004975

•

  Screw Piaggio Group · 1A004975 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 2,44

  Add to cart

11 Transmission key Available B015997

• B015997 Transmission key


  Alternator wedge, 15,3x6,45x4 Piaggio Group · 000097 ↻ Replaces B015997, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 6,20

  Add to cart
