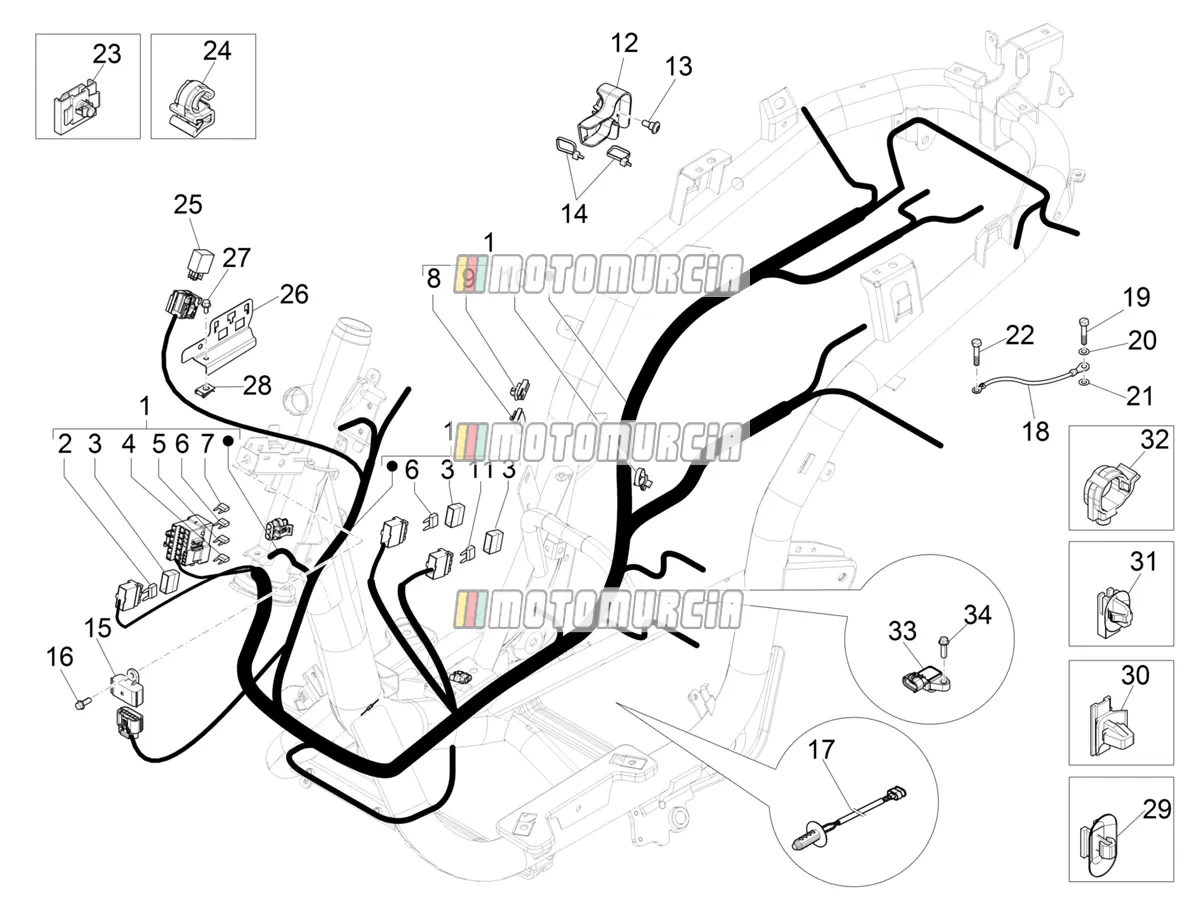

Exploded view — Main wiring harness

‹ Back to model
Piaggio Medley 150 4T ABS E3-E4 (APAC) 2025 Piaggio Medley 150 4T ABS E3-E4 (APAC) 2025
Main wiring harness

Products

1 Chassis wire unit Backorder 1D003616
  • No description available Piaggio Group · 1D003616 Backorder · Shipped in 2–4 weeks
    € 586,12
  • 1D003671 Chassis wire unit
    No longer available
2 Fuse 40A Available 640394
  • Fuse 40 A Piaggio Group · 640394 Available · Shipped in 3–5 working days
    € 4,51
3 Cover Available 290404
  • Lid Piaggio Group · 290404 Available · Shipped in 3–5 working days
    € 9,08
4 Mini fuse 5A Available CM080904
  • Fuse Mini, 5 A Piaggio Group · CM080904 Available · Shipped in 3–5 working days
    € 3,47
5 Mini fuse 7,5A Available CM080905
  • Fuse 7,5 A Piaggio Group · CM080905 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 4,08
6 Mini fuse 10A Available CM080906
  • Fuse Piaggio Group · CM080906 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 3,44
7 Mini fuse 25A Backorder CM080909
  • Fuse 25 A Piaggio Group · CM080909 Backorder · Shipped in 2–4 weeks
    € 4,19
8 Plugs spring Available 641599
  • Clip Piaggio Group · 641599 Available · Shipped in 3–5 working days
    € 4,01
9 Clamp Available 1D000129
  • Clip Piaggio Group · 1D000129 Available · Shipped in 3–5 working days
    € 2,27
10 Wiring clip Available 1D001143
  • Clamp Piaggio Group · 1D001143 · Quantity needed: 6 Available · Shipped in 3–5 working days
    € 1,45
11 10 - Fuse (15A) Available 290860
  • Fuse 15 A Piaggio Group · 290860 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,86
12 Wiring harness support Available 1D001287
  • Cable Guide Piaggio Group · 1D001287 Available · Shipped in 3–5 working days
    € 2,77
13 Screw Available CM179202
  • Screw Piaggio Group · CM179202 Available · Shipped in 3–5 working days
    € 1,48
14 Lock-strap L=180mm Available 145298
15 Cover Available 1D002621
  • Lid Piaggio Group · 1D002621 Available · Shipped in 3–5 working days
    € 15,37
16 Screw Available B016777
  • Flanged Screw M6x16 Piaggio Group · B016777 Available · Shipped in 3–5 working days
    € 1,48
17 Ambient temperature sensor Available 581142
  • Air temperature probe Piaggio Group · 581142 Available · Shipped in 3–5 working days
    € 33,66
18 Earth braid Available 581309
  • Chassis ground cable Piaggio Group · 581309 Available · Shipped in 3–5 working days
    € 15,74
19 Screw Available 641204
  • Hexagon Screw Piaggio Group · 641204 Available · Shipped in 3–5 working days
    € 1,45
20 Washer Available 016406
  • Washer 6,4x11,8x1 mm Piaggio Group · 016406 Available · Shipped in 3–5 working days
    € 1,79
21 Washer Available 003056
  • Washer 6,4x12x1 mm Piaggio Group · 003056 Available · Shipped in 3–5 working days
    € 1,84
22 Screw Available 1A000348
  • Screw M6x35 Piaggio Group · 1A000348 Available · Shipped in 3–5 working days
    € 2,12
23 Plugs spring Available 641599
  • Clip Piaggio Group · 641599 Available · Shipped in 3–5 working days
    € 4,01
24 4 - Sheet edge spring Available CM013203
  • Clamp Piaggio Group · CM013203 Available · Shipped in 3–5 working days
    € 3,18
25 Microrelay with resistance 12V 30A/10A (12V 30A/10A) Available 1D001636
26 ELECTRIC DEVICE BRACKET Backorder 1B006816
  • Bracket Piaggio Group · 1B006816 Backorder · Shipped in 2–4 weeks
    € 4,95
27 Screw Available 484123
  • Flanged Screw Piaggio Group · 484123 Available · Shipped in 3–5 working days
    € 0,99
28 Clip nuts Available 248419
  • Sheet nut M5 Piaggio Group · 248419 Available · Shipped in 3–5 working days
    € 2,35
29 Molletta Available B005629
  • Clip Piaggio Group · B005629 Available · Shipped in 3–5 working days
    € 4,48
30 Spring for connector Available 639560
  • Clamp Piaggio Group · 639560 · Quantity needed: 5 Available · Shipped in 3–5 working days
    € 4,59
31 Clamp Available 1D000129
  • Clip Piaggio Group · 1D000129 Available · Shipped in 3–5 working days
    € 2,27
32 6 - Non return spring L=23 Available CM006908
  • Clamp length: 23mm Piaggio Group · CM006908 Available · Shipped in 3–5 working days
    € 5,64
33 Air pressure sensor Available 642786
  • Pressure sensor Piaggio Group · 642786 Available · Shipped in 3–5 working days
    € 140,48
34 Screw Available 018639
  • Flanged Screw M6x20 Piaggio Group · 018639 Available · Shipped in 3–5 working days
    € 2,77
