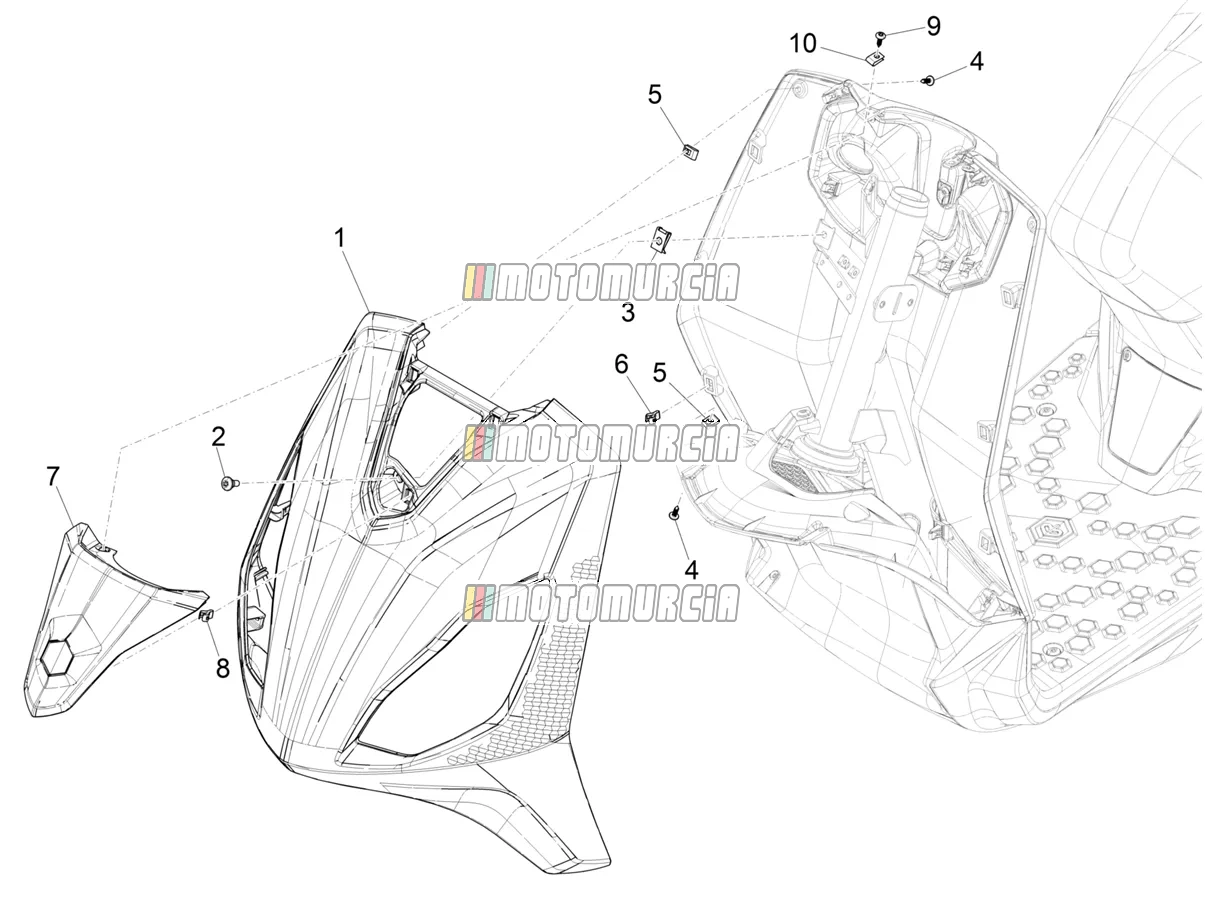

Exploded view — Front Shield

Products

1 Shield Available 1B008369000BY

•

  Front Shield, white Piaggio Group · 1B008369000BY Available

  € 266,50

  Add to cart
•

  Front Shield, black Piaggio Group · 1B008369000NZ Available

  € 266,50

  Add to cart
•

  Front Shield, primed Piaggio Group · 1B008369 Available

  € 216,48

  Add to cart
•

  Front Shield, grey Piaggio Group · 1B008369000EX Available

  € 266,50

  Add to cart

2 Screw Available CM179202

•

  Screw Piaggio Group · CM179202 Available

  € 1,48

  Add to cart

3 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

4 Screw (4.2 x 16) Available CM178601

•

  Sheet Metal Screw 4,2x16 mm Piaggio Group · CM178601 · Quantity needed: 2 Available

  € 1,45

  Add to cart

5 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available

  € 0,99

  Add to cart

7 Shield upper closing Available 1B008373000AJ

•

  Cascade, blue Piaggio Group · 1B008373000AJ Available

  € 36,09

  Add to cart
•

  Cascade, green Piaggio Group · 1B008373000VJ Available

  € 36,09

  Add to cart
•

  Cascade, blue Piaggio Group · 1B008373000AY Available

  € 36,09

  Add to cart
•

  Cascade, black Piaggio Group · 1B0083730009C Available

  € 36,09

  Add to cart
•

  Cascade, primed Piaggio Group · 1B008373 Available

  € 32,48

  Add to cart

8 Clip nuts Available D9004468091

•

  Clamp Piaggio Group · D9004468091 · Quantity needed: 6 Available

  € 5,15

  Add to cart
