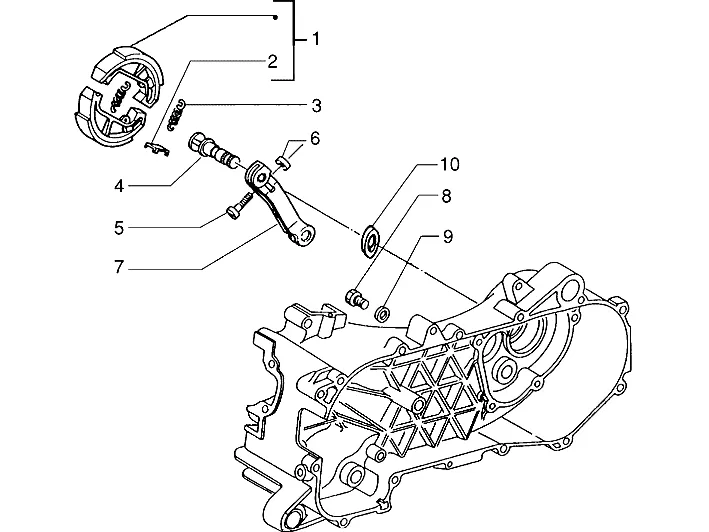

Exploded view — Brake Lever

Products

1 Brake shoe Available 82907R

•

  Brake shoe set Piaggio Group · 82907R Available

  € 24,10

  Add to cart

2 Plate Available 266724

•

  Plate Piaggio Group · 266724 · Quantity needed: 2 Available

  € 36,11

  Add to cart

3 Brake shoes return spring Available 647384

•

  Brake shoe spring Piaggio Group · 647384 · Quantity needed: 2 Available

  € 2,02

  Add to cart

4 Rear brake cam Available B014502

•

  Brake cam Piaggio Group · B014502 Available

  € 54,72

  Add to cart

5 Screw Available B016774

•

  Hexagon Screw M6x25 Piaggio Group · B016774 Available

  € 1,48

  Add to cart

6 Nut Available 709041

•

  Square nut Piaggio Group · 709041 Available

  € 0,99

  Add to cart

7 Rear brake lever Available 833428

•

  Brake Lever Piaggio Group · 833428 Available

  € 9,72

  Add to cart

8 Screw Available 269755

•

  Screw M8x12 Piaggio Group · 269755 · Quantity needed: 2 Available

  € 1,59

  Add to cart

9 Washer Available 485703

•

  Washer 8,2x12x1 mm Piaggio Group · 485703 · Quantity needed: 2 Available

  € 1,25

  Add to cart

10 Gasket ring Available 273419

•

  Oil seal Piaggio Group · 273419 · Quantity needed: 2 Available

  € 1,82

  Add to cart
