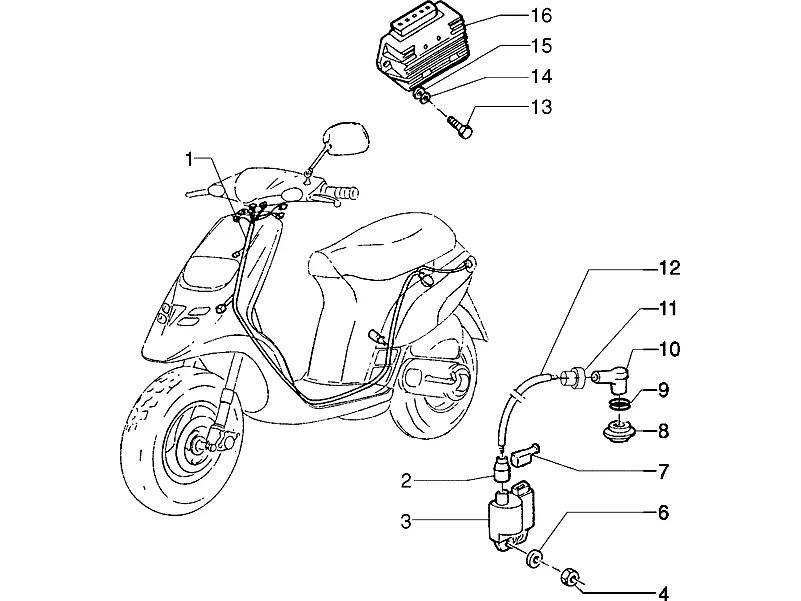

Exploded view — Electrical Devices

Products

1 Main wiring harness 580782 No longer available

• 580782 Main wiring harness
  No longer available
• 580791 Main wiring harness
  No longer available

2 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available

  € 3,84

  Add to cart

3 CDI unit Available 638678

•

  Ignition Coil Piaggio Group · 638678 Available

  € 81,24

  Add to cart

4 Nut Available 241937

•

  Standard nut Piaggio Group · 241937 Available

  € 0,99

  Add to cart

6 Washer 016686 No longer available

• 016686 Washer
  No longer available

7 Cap Available 255256

•

  Insulating Cover CDI Piaggio Group · 255256 Available

  € 5,08

  Add to cart

8 Collar Available 288633

•

  Gasket Piaggio Group · 288633 Available

  € 1,59

  Add to cart

9 Fairlead 114164 No longer available

• 114164 Fairlead
  No longer available

10 Spark plug cap Backorder 103936

•

  Spark Plug Connector Piaggio Group · 103936 Backorder

  € 10,59

  Add to cart

11 Spark plug cap Available 825186

•

  Spark Plug Connector Piaggio Group · 825186 Available

  € 29,05

  Add to cart

12 H.V. cable Available 080341

•

  Ignition Lead Piaggio Group · 080341 Available

  € 3,88

  Add to cart

13 Screw Available 015558

•

  Screw M16x16 Piaggio Group · 015558 · Quantity needed: 2 Available

  € 1,45

  Add to cart

14 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available

  € 1,79

  Add to cart

15 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

16 Voltage regulator Available 58096R

•

  Regulator, with flasher relay Piaggio Group · 58096R Available

  € 82,72

  Add to cart
