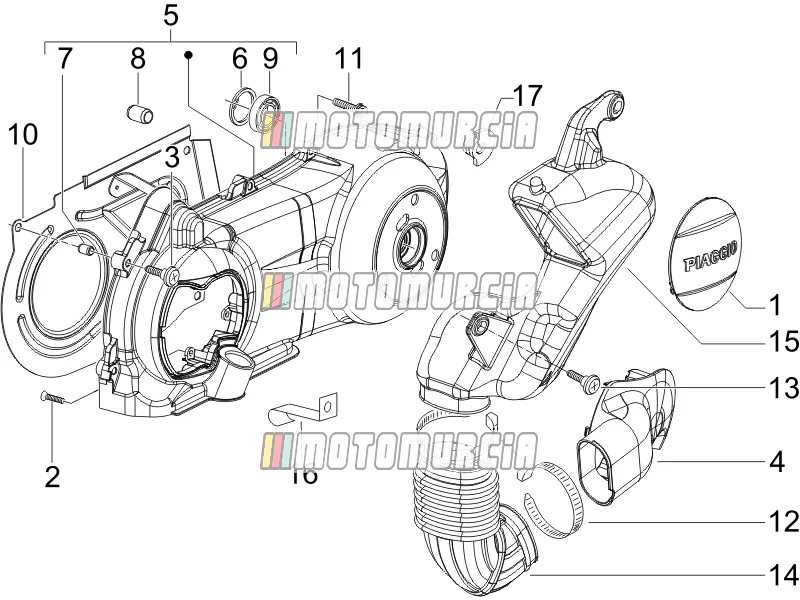

Exploded view — Crankcase Cover - Crankcase Cooling

Products

1 Plug Available CM155110

•

  Lid Piaggio Group · CM155110 Available

  € 8,55

  Add to cart

2 Screw Available 270793

•

  Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 3 Available

  € 0,99

  Add to cart

3 Screw Available 430264

•

  Oval Head Screw M5x10 Piaggio Group · 430264 · Quantity needed: 4 Available

  € 0,99

  Add to cart

4 Belt cooling cover Available 840959

•

  Lid Piaggio Group · 840959 Available

  € 7,62

  Add to cart

5 Transmission cover cpl. Available 8413805

•

  Housing cover Piaggio Group · 8413805 Available

  € 119,84

  Add to cart

6 Seeger Available 006635

•

  Snap-in Ring Piaggio Group · 006635 Available

  € 1,84

  Add to cart

7 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

  € 1,32

  Add to cart

8 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available

  € 1,65

  Add to cart

9 Bearing Available 4789853

•

  Radial bearing 15x35x11 mm Piaggio Group · 4789853 Available

  € 5,87

  Add to cart

10 Air deflector Backorder 873682

•

  Air Guide Plate Piaggio Group · 873682 Backorder

  € 17,17

  Add to cart

11 Screw Available B016792

•

  Flanged Screw M6x30 Piaggio Group · B016792 · Quantity needed: 9 Available

  € 1,48

  Add to cart

12 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 2 Available

  € 0,99

  Add to cart

13 Screw Available 259348

•

  Oval Head Screw Piaggio Group · 259348 · Quantity needed: 2 Available

  € 1,08

  Add to cart

14 Bellows Backorder 621251

•

  Intake Manifold Piaggio Group · 621251 Backorder

  € 35,49

  Add to cart

15 Cooloing box Backorder 621252

•

  Housing Piaggio Group · 621252 Backorder

  € 12,77

  Add to cart

16 4 - Hose clamp Available 844964

•

  Clamp Piaggio Group · 844964 Available

  € 2,27

  Add to cart

17 3 - Retainer buffer Available 871458

•

  Buffer Piaggio Group · 871458 · Quantity needed: 3 Available

  € 1,89

  Add to cart
