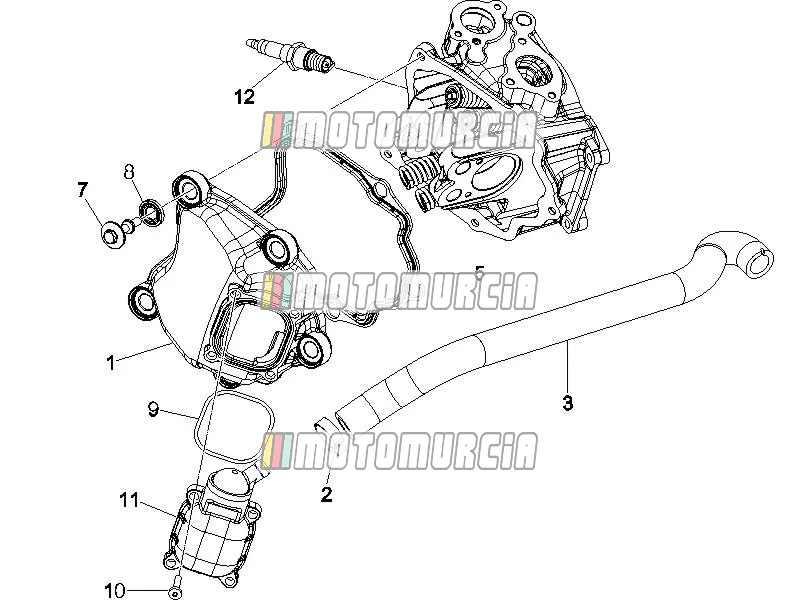

Exploded view — Cylinder Head Cover

Products

1 Head cover Available 829534

•

  Valve Cover Piaggio Group · 829534 Available

  € 98,84

  Add to cart

3 Breather pipe Available 845464

•

  Hose Piaggio Group · 845464 Available

  € 10,95

  Add to cart

5 Gasket - head cover Available 829536

•

  Cylinder Head Gasket Piaggio Group · 829536 Available

  € 14,97

  Add to cart

7 Bolt, valve head cover Available 872635

•

  Screw Piaggio Group · 872635 · Quantity needed: 5 Available

  € 2,35

  Add to cart

8 Damper drift Available 830249

•

  Washer Piaggio Group · 830249 · Quantity needed: 5 Available

  € 1,32

  Add to cart

9 Gasket - breather valve Available 1A003985

•

  Gasket Piaggio Group · 1A003985 Available

  € 5,72

  Add to cart
•

  Clamp Piaggio Group · CM001904 Available

  € 1,72

  Add to cart

10 Screw Available 877136

•

  Screw M5x20 Piaggio Group · 877136 · Quantity needed: 4 Available

  € 0,99

  Add to cart

11 Oil breather valve Available 1A010691R

•

  Oil bleed valve Piaggio Group · 1A010691R Available

  € 21,61

  Add to cart

12 Spark plug (Champion) Available 438027

•

  Spark Plugs RG4HC Piaggio Group · 438027 Available

  € 14,98

  Add to cart
•

  Spark Plugs CR8EB Piaggio Group · 638853 Available

  € 18,03

  Add to cart
