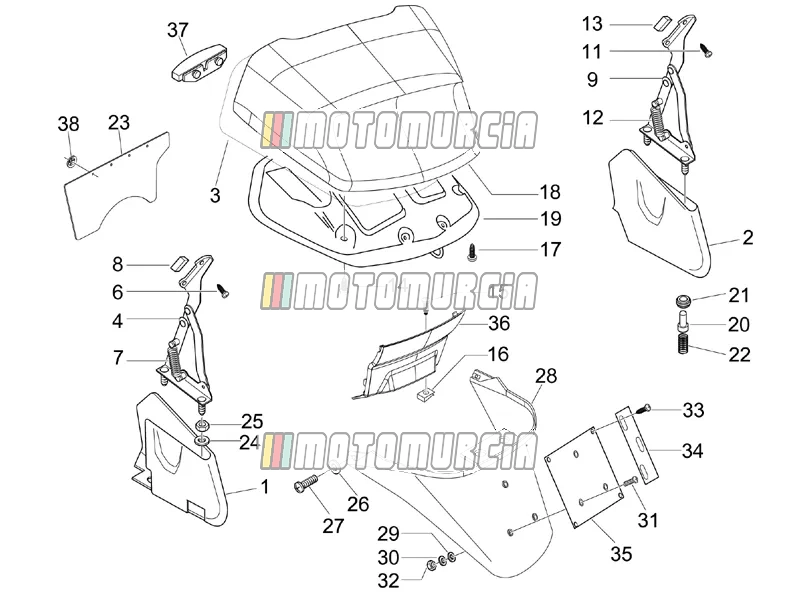

Exploded view — Rear Cover - Splash Guard

‹ Back to model
Piaggio X Evo 400 2007 Piaggio X Evo 400 2007
Rear Cover - Splash Guard

Products

1 Guard Backorder CM024201
  • Lid, left Piaggio Group · CM024201 Backorder
    € 10,21
2 Guard Available CM024202
  • Lid, right Piaggio Group · CM024202 Available
    € 10,21
3 Gasket Available 561449
  • Gasket Piaggio Group · 561449 Available
    € 69,51
4 LH HINGE Available CM1774015
  • Hinge left Piaggio Group · CM1774015 Available
    € 61,72
6 Screw Available 297498
8 Stop buffer 656083 No longer available
  • 656083 Stop buffer
    No longer available
9 RH HINGE Available CM1774025
  • Hinge right Piaggio Group · CM1774025 Available
    € 61,72
12 Spring Backorder 653896
  • Spring Piaggio Group · 653896 Backorder
    € 8,17
14 Screw Available 272836
  • Screw M6x16 Piaggio Group · 272836 · Quantity needed: 4 Available
    € 1,39
15 Screw Available 259349
  • Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available
    € 0,99
16 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available
    € 0,99
17 Screw Available 297498
  • Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 9 Available
    € 0,99
18 Boot cover 62459400XN2 No longer available
19 Counter flap Available 620758
  • Fairing Piaggio Group · 620758 Available
    € 68,97
20 Button Available 621097
  • Pin Piaggio Group · 621097 Available
    € 4,62
21 Maintenance Available 621098
  • Clip Piaggio Group · 621098 Available
    € 3,29
22 Spring Available 621099
  • Spring Piaggio Group · 621099 Available
    € 2,78
23 Engine splash guard 623641 No longer available
  • 623641 Engine splash guard
    No longer available
24 Washer Available 013880
25 Nut Available 219277
  • Standard nut Piaggio Group · 219277 · Quantity needed: 4 Available
    € 0,99
26 Washer Available 013950
  • Washer Piaggio Group · 013950 · Quantity needed: 2 Available
    € 1,43
27 Screw Available B016777
28 Splash guard 623595000C No longer available
  • 623595000C Splash guard
    No longer available
29 Washer Available 013763
  • Washer 4,2x12x1 mm Piaggio Group · 013763 · Quantity needed: 3 Available
    € 0,99
30 Washer (spring) Available 016404
31 Screw Available 015996
  • Screw M4x12 Piaggio Group · 015996 · Quantity needed: 3 Available
    € 0,99
32 Nut M4 Available 020104
  • Standard nut Piaggio Group · 020104 · Quantity needed: 3 Available
    € 0,99
33 Screw Available 268596
  • Screw Piaggio Group · 268596 · Quantity needed: 4 Available
    € 0,99
34 Number-plate extension Available 584877
  • Bracket Piaggio Group · 584877 · Quantity needed: 2 Available
    € 6,96
35 License plate holder Available 584884
36 Rear side closing 62359100BR No longer available
37 Gasket connection Available 621347
  • Gasket Piaggio Group · 621347 Available
    € 13,33
38 Washer Available 230359
  • Washer Piaggio Group · 230359 · Quantity needed: 3 Available
    € 1,22
