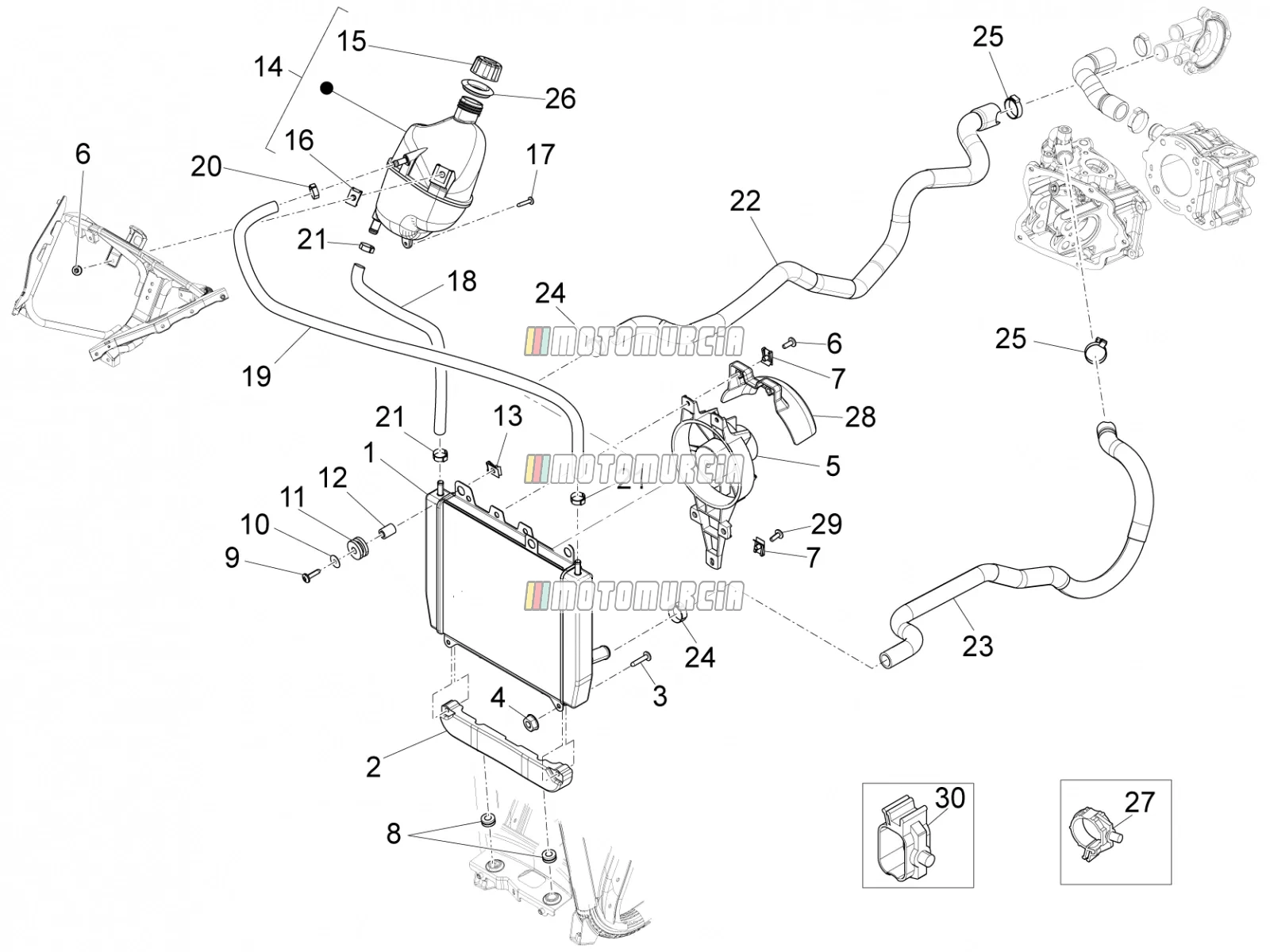

Exploded view — Cooling System
‹ Back to model
Piaggio X10 350 4V I.E. 2012
Products
1 Radiator - water cooler Backorder
-
Radiator Piaggio Group · 674244 Backorder · Shipped in 2–4 weeks€ 251,00
2 Radiator grill closure Available
-
Lock Piaggio Group · 674245 Available · Shipped in 3–5 working days€ 23,46
3 Screw (M6x30) Available
-
- Country: Indonesia
Screw M6x30 Piaggio Group · CM179303 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,48
4 Nut Available
-
- Taiwan version
Collar nut M6 Piaggio Group · 288245 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
5 Cooling fan Available
-
Fan Piaggio Group · 58211R Available · Shipped in 3–5 working days€ 235,59
6 Screw M6x25 Available
-
- Country: Indonesia
Screw M6x25 Piaggio Group · CM179305 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,45
8 Damper Available
-
Buffer Piaggio Group · 258904 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,17
10 Washer d6,2x20x1 Available
-
- ABS version
- ABS version
Washer 6,2x20x1 mm Piaggio Group · 013092 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,26
11 Upper rubber Available
-
Buffer Piaggio Group · 351782 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,67
12 Spacer Available
-
- ABS version
Spacer Piaggio Group · 273288 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,18
13 Clip nuts (M6) Available
-
- Year of manufacture: 2012
- Year of manufacture: 2013
Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,04
14 Coolant tank Available
-
Coolant Reservoir Piaggio Group · 674030 Available · Shipped in 3–5 working days€ 70,54
15 Tank cap Available
-
Tank Cap Piaggio Group · 623673 Available · Shipped in 3–5 working days€ 19,66
17 Screw Available
-
- Colour: Special Edition
- Enjoy 2015
- Enjoy 2016
Sheet Metal Screw Piaggio Group · CM178606 Available · Shipped in 3–5 working days€ 10,19
18 Water rad.feed pipe Available
-
Hose Piaggio Group · CM007020 Available · Shipped in 3–5 working days€ 22,23
19 Radiator return pipe Available
-
Return Pipe Piaggio Group · CM007019 Available · Shipped in 3–5 working days€ 36,26
20 Clamp Available
-
Clamp Piaggio Group · CM001904 Available · Shipped in 3–5 working days€ 1,72
21 Clamp Available
-
CM001902 Clamp Quantity needed: 3
- 400 cc version
- 500 cc version
Clamp Piaggio Group · CM0019026 ↻ Replaces CM001902, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,60
22 Pump-radiator pipe fitting
-
674007 Pump-radiator pipe fittingNo longer available
23 Radiator-head pipe fitting link Available
-
Radiator hose, from cylinder head to radiator Piaggio Group · 6758435 Available · Shipped in 3–5 working days€ 139,20
24 Clamp Available
-
Clamp Piaggio Group · CM001915 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,27
25 Clamp Available
-
- Year of manufacture: 2012
- Year of manufacture: 2013
Hose Clamp Piaggio Group · AP8104097 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 4,40
26 Gasket ring Available
-
Filler cap seal Piaggio Group · 620737 Available · Shipped in 3–5 working days€ 2,60
27 Non return spring Available
-
Clip Piaggio Group · CM006914 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 3,47
28 Fan shroud Available
-
Air Guide Plate Piaggio Group · 672464 Available · Shipped in 3–5 working days€ 16,30
29 Screw Available
-
- Country: Indonesia
- Country: Japan
Screw M6x16 Piaggio Group · CM179301 Available · Shipped in 3–5 working days€ 1,48
30 Non return spring L=33 Available
-
Clamp length: 33mm Piaggio Group · CM006906 Available · Shipped in 3–5 working days€ 5,01
