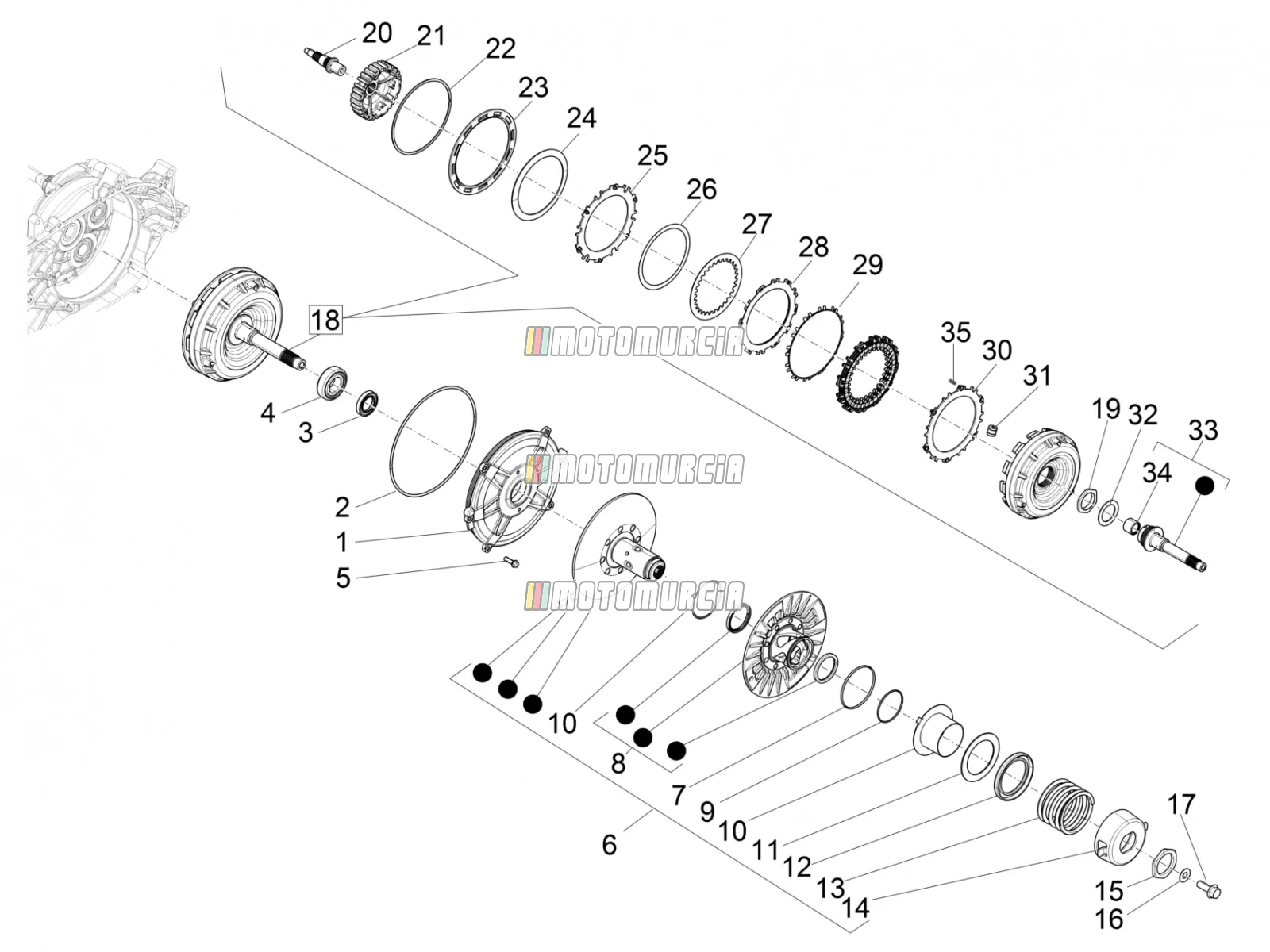

Exploded view — Driven Pulley
‹ Back to model
Piaggio X10 350 4V I.E. 2012
Products
1 Clutch cover Available
-
Clutch Cover Piaggio Group · B019116 Available€ 45,18
2 Gasket Available
-
Oil seal thickness: 2,10 mm Piaggio Group · B015679 Available€ 15,88
3 Oil seal 25x40x7 Available
-
Shaft Seal Piaggio Group · 873931 Available€ 17,47
4 Bearing Available
-
Radial bearing Piaggio Group · 878881 Available€ 14,36
5 Screw Available
-
Flanged Screw M6x20 Piaggio Group · 018639 · Quantity needed: 6 Available€ 2,77
6 Clutch driven pulley assy. Available
-
Pulley rear Piaggio Group · B015114 Available€ 456,41
7 Gasket Available
-
Oil seal Piaggio Group · B013688 Available€ 7,55
8 Adjustable pulley, half
-
879389 Adjustable pulley, halfNo longer available
9 Gasket Available
-
Oil seal Piaggio Group · 878162 Available€ 7,55
10 Pulley side cap Backorder
-
Spring Mount Piaggio Group · B014906 Backorder€ 27,58
11 Sliding washer Available
-
Washer Piaggio Group · B014599 Available€ 3,99
12 Spring seat Available
-
Spring Mount Piaggio Group · B015110 Available€ 17,70
13 Variator spring Available
-
Clutch spring Converter Piaggio Group · B015119 Available€ 32,07
14 Spring seat Backorder
-
Spring Mount Piaggio Group · B015109 Backorder€ 27,91
15 Clutch nut Available
-
Standard nut Piaggio Group · 433232 Available€ 14,90
16 Washer Available
-
Washer Piaggio Group · 878953 Available€ 17,33
17 Screw Available
-
Flanged Screw Piaggio Group · 878950 Available€ 3,28
18 Centrifugal clutch assembly Available
-
Clutch Shoes Piaggio Group · 1A024672 Available€ 448,28
19 Ring nut Available
-
Standard nut Piaggio Group · B014882 Available€ 12,44
20 Drive shaft Available
-
Clutch Shaft Piaggio Group · 878741 Available€ 147,40
21 Clutch hub
-
B013469 Clutch hubNo longer available
22 Snap ring Available
-
Locking Ring Piaggio Group · 876986 Available€ 38,74
23 Discs retaining ring Available
-
Clutch Disk Piaggio Group · 876987 Available€ 34,68
24 Belleville spring Available
-
Clutch Disk Piaggio Group · B014176 Available€ 27,38
25 Upper spring holder disc Available
-
Upper spring holder disc Piaggio Group · 1A021188 Available€ 12,33
26 Covered duct plate
-
876976 Covered duct plate Quantity needed: 2No longer available
27 Driven clutch disc Available
-
Clutch plates driven Piaggio Group · 1A022992 · Quantity needed: 2 Available€ 7,04
28 Driving clutch disc Available
-
Clutch plates driving Piaggio Group · 1A024675 · Quantity needed: 3 Available€ 36,07
29 Snap ring Available
-
Snap-in Ring Piaggio Group · B014186 · Quantity needed: 4 Available€ 10,79
30 Lower spring holder disc Available
-
Lower spring holder disc Piaggio Group · 1A021251 Available€ 15,65
31 12 - roller complete Available
-
Pulley 16x16 mm, 22,0 g, Content: 1 Stk Piaggio Group · 876977 · Quantity needed: 12 Available€ 3,34
32 Washer Available
-
Washer Piaggio Group · 878743 Available€ 5,66
33 Driven pulley shaft Available
-
Input Shaft Piaggio Group · 878718 Available€ 329,34
34 Needle bearing Available
-
Needle bearing Piaggio Group · 878782 Available€ 29,56
35 Spring Available
-
Clutch Spring Piaggio Group · B019008 Available€ 2,15
-
877001 Clutch springNo longer available
