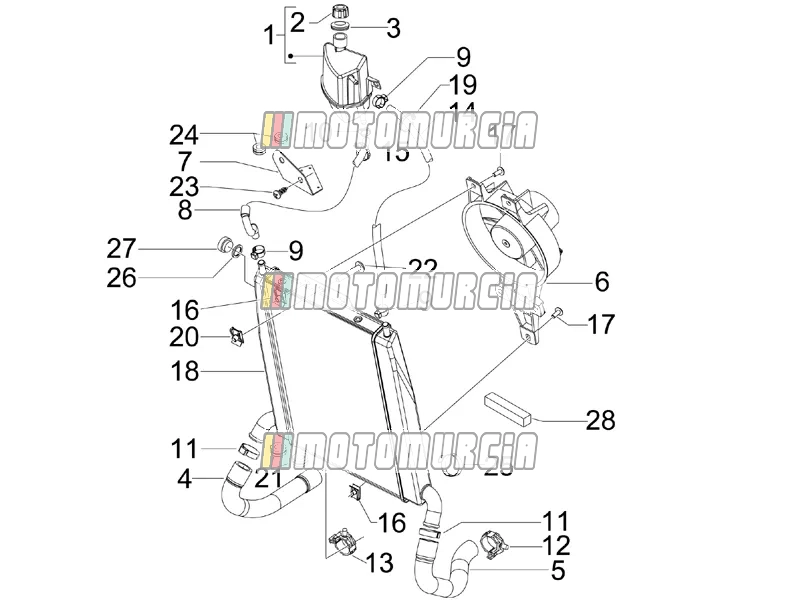

Exploded view — Cooling System

Products

1 Coolant tank Available 655527

•

  Coolant Reservoir Piaggio Group · 655527 Available

  € 51,91

  Add to cart

2 Tank cap Available 623673

•

  Tank Cap Piaggio Group · 623673 Available

  € 19,66

  Add to cart

3 Gasket ring Available 620737

•

  Filler cap seal Piaggio Group · 620737 Available

  € 2,60

  Add to cart

4 RADIATOR FEED PIPE Backorder 623746

•

  Return Pipe Piaggio Group · 623746 Backorder

  € 47,52

  Add to cart

5 Radiator-head pipe fitting link Backorder 623747

•

  Radiator pipe Piaggio Group · 623747 Backorder

  € 48,38

  Add to cart

6 Cooling fan Available 58211R

•

  Fan Piaggio Group · 58211R Available

  € 235,59

  Add to cart

7 Fuel tank bracket Backorder 653778

•

  Bracket Piaggio Group · 653778 Backorder

  € 10,87

  Add to cart

8 Cooler-tank return pipe Backorder 655440

•

  Return Pipe Piaggio Group · 655440 Backorder

  € 30,06

  Add to cart

9 Clamp Available CM001903

•

  Hose Clamp Piaggio Group · CM001903 · Quantity needed: 3 Available

  € 2,18

  Add to cart

10 Clamp Available CM001904

•

  Clamp Piaggio Group · CM001904 Available

  € 1,72

  Add to cart

11 Clamp Available CM001907

•

  Hose Clamp Piaggio Group · CM001907 · Quantity needed: 2 Available

  € 2,19

  Add to cart

12 Clamp Available CM001908

•

  Hose Clamp Piaggio Group · CM001908 Available

  € 2,35

  Add to cart

13 10 - Fairlead Available CM006903

•

  Clamp Piaggio Group · CM006903 · Quantity needed: 3 Available

  € 4,51

  Add to cart

14 Cooler-tank return pipe Backorder CM007017

•

  Radiator hose Piaggio Group · CM007017 Backorder

  € 29,12

  Add to cart

15 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 3 Available

  € 0,99

  Add to cart

17 Screw Available 272836

•

  Screw M6x16 Piaggio Group · 272836 · Quantity needed: 3 Available

  € 1,39

  Add to cart

18 Radiator - water cooler Available 57312R

•

  Radiator Piaggio Group · 57312R Available

  € 299,15

  Add to cart

19 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

  € 1,43

  Add to cart

20 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

21 Damper Available 258904

•

  Buffer Piaggio Group · 258904 · Quantity needed: 2 Available

  € 2,17

  Add to cart

22 Screw Available 259708

•

  Sheet Metal Screw M6x35 Piaggio Group · 259708 Available

  € 1,29

  Add to cart

23 Screw Available 268596

•

  Screw Piaggio Group · 268596 · Quantity needed: 3 Available

  € 0,99

  Add to cart

25 4 - Clamp Available CM001922

•

  Hose Clamp Piaggio Group · CM001922 Available

  € 2,27

  Add to cart

26 Copper gasket Available 168077

•

  Copper Flange Gasket Piaggio Group · 168077 Available

  € 5,63

  Add to cart

27 Cover Available 621365

•

  Screw M14x1.5 Piaggio Group · 621365 Available

  € 3,04

  Add to cart

28 Damper Available 583310

•

  Buffer Piaggio Group · 583310 Available

  € 8,08
