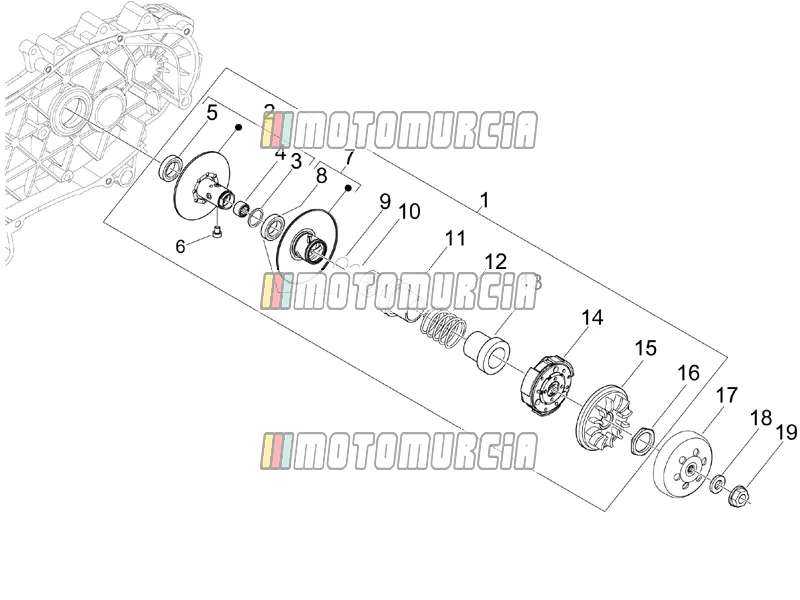

Exploded view — Driven Pulley

Products

1 Secondary pulley Available CM316301

•

  Pulley rear Piaggio Group · CM316301 Available · Shipped in 3–5 working days

  € 262,63

  Add to cart

2 Sec. fixed sheave, complete Available 1A013202

•

  Pulley halves Piaggio Group · 1A013202 Available · Shipped in 3–5 working days

  € 152,53

  Add to cart

3 Gasket ring Available 483226

•

  Snap-in Ring Piaggio Group · 483226 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

4 Needle bearing Available 82518R

•

  Needle bearing 20x29x18 mm Piaggio Group · 82518R Available · Shipped in 3–5 working days

  € 30,29

  Add to cart

5 Bearing Available 82753R

•

  Ball bearing 17x30x7 mm Piaggio Group · 82753R Available · Shipped in 3–5 working days

  € 23,72

  Add to cart

6 Guide pin L=12,5 Available 828717

•

  Pin length: 13mm Piaggio Group · 828717 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 2,09

  Add to cart

7 Sec.sliding sheave Available 1A013204

•

  Pulley halves Piaggio Group · 1A013204 Available · Shipped in 3–5 working days

  € 142,25

  Add to cart

8 Oil seal Available 431089

•

  Oil seal Piaggio Group · 431089 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 9,66

  Add to cart

9 O-Ring Available 430585

•

  Oil seal Piaggio Group · 430585 Available · Shipped in 3–5 working days

  € 1,32

  Add to cart

10 O-Ring Available 855636

•

  Oil seal 50,52x1,78 mm Piaggio Group · 855636 Available · Shipped in 3–5 working days

  € 5,29

  Add to cart

11 Cup Available 833674

•

  Spring Mount Piaggio Group · 833674 Available · Shipped in 3–5 working days

  € 33,94

  Add to cart

12 Spring Available 833673

• • 200 cc version
  • Engine numbering CA04
  • From engine CA03-7002144


  Converter spring Piaggio Group · 833673 Available · Shipped in 3–5 working days

  € 12,73

  Add to cart

13 Clutch side cap Available 487936

•

  Spring Mount Piaggio Group · 487936 Available · Shipped in 3–5 working days

  € 9,79

  Add to cart

14 Clutch Available CM3117015

•

  Clutch Shoes Piaggio Group · CM3117015 Available · Shipped in 3–5 working days

  € 108,33

  Add to cart

15 Fan Available 482305

•

  Flywheel/ Stator Piaggio Group · 482305 Available · Shipped in 3–5 working days

  € 8,70

  Add to cart

16 Clutch nut Available 433232

•

  Standard nut Piaggio Group · 433232 Available · Shipped in 3–5 working days

  € 14,90

  Add to cart

17 Clutch bell Available 8440494

•

  Clutch Case Piaggio Group · 8440494 Available · Shipped in 3–5 working days

  € 79,10

  Add to cart

18 Washer (22x12,1x19) Available 274246

• • With 30 mm seal


  Washer 22x12,1x1 mm Piaggio Group · 274246 Available · Shipped in 3–5 working days

  € 1,26

  Add to cart

19 Nut Available 486324

•

  Standard nut M12x1.25 Piaggio Group · 486324 Available · Shipped in 3–5 working days

  € 1,31

  Add to cart
