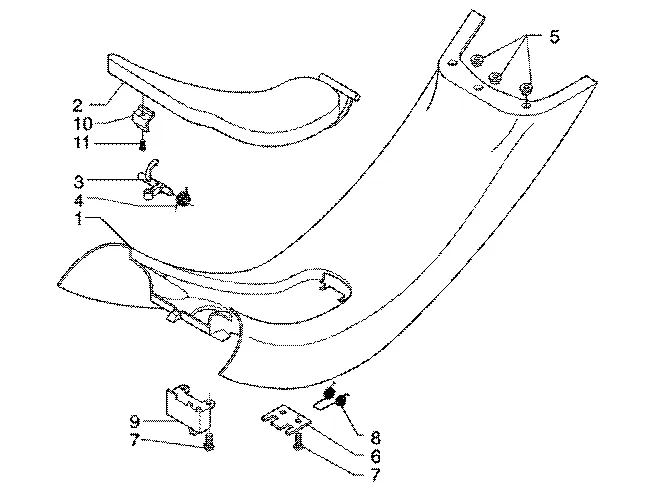

Exploded view — Central Part

‹ Back to model

Piaggio X9 200 1998–2005

Piaggio X9 200 1998–2005

Central Part

Products

1 CENTRAL COVER Backorder 575558000P

Footwell Cover Piaggio Group · 575558000P Backorder

€ 75,85

2 SERVICE DOOR 575559000P No longer available

575559000P SERVICE DOOR
No longer available

3 Fuel door lever Backorder 575606

Hooks Piaggio Group · 575606 Backorder

€ 2,95

4 Spring Available 575604

Spring Piaggio Group · 575604 Available

€ 3,27

5 Spacer Available 830056

Sleeve Piaggio Group · 830056 Available

€ 1,48

6 Plate 575605 No longer available

575605 Plate
No longer available

7 Screw Available 297498

Sheet Metal Screw Piaggio Group · 297498 Available

€ 0,99

8 Spring Available 621507

Spring Piaggio Group · 621507 Available

€ 8,55

9 Maintenance 575847 No longer available

575847 Maintenance
No longer available

10 Square Available AP8161182

Sheet nut Piaggio Group · AP8161182 Available

€ 16,70

11 Screw Available 270793

Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 4 Available

€ 0,99
