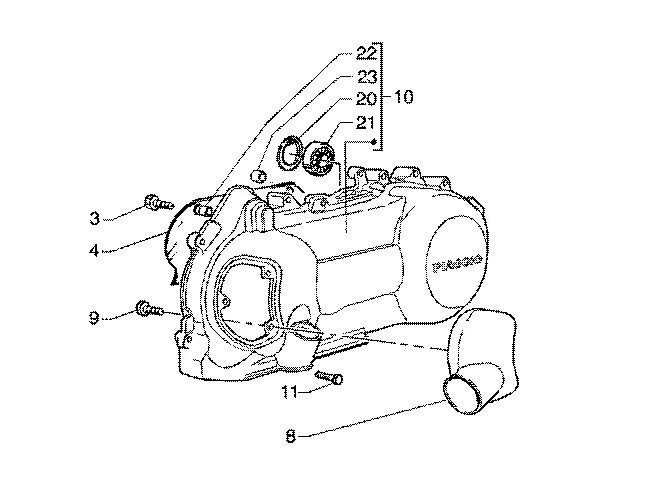

Exploded view — Crankcase Cooling

Products

3 Screw Available 430264

•

  Oval Head Screw M5x10 Piaggio Group · 430264 · Quantity needed: 5 Available

  € 0,99

  Add to cart

4 Air deflector Available 834266

•

  Air Guide Plate Piaggio Group · 834266 Available

  € 22,74

  Add to cart

8 Cover Available 827400

•

  Nozzle Piaggio Group · 827400 Available

  € 10,24

  Add to cart

9 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 2 Available

  € 0,99

  Add to cart

10 Cover 8255275 No longer available

• 8255275 Cover
  No longer available
• 8403255 Transmission cover
  No longer available

11 Screw Available B016792

•

  Flanged Screw M6x30 Piaggio Group · B016792 · Quantity needed: 8 Available

  € 1,48

  Add to cart

20 Seeger Available 006635

•

  Snap-in Ring Piaggio Group · 006635 Available

  € 1,84

  Add to cart

21 Bearing Available 4789853

•

  Radial bearing 15x35x11 mm Piaggio Group · 4789853 Available

  € 5,87

  Add to cart

22 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

  € 1,32

  Add to cart

23 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available

  € 1,65

  Add to cart
