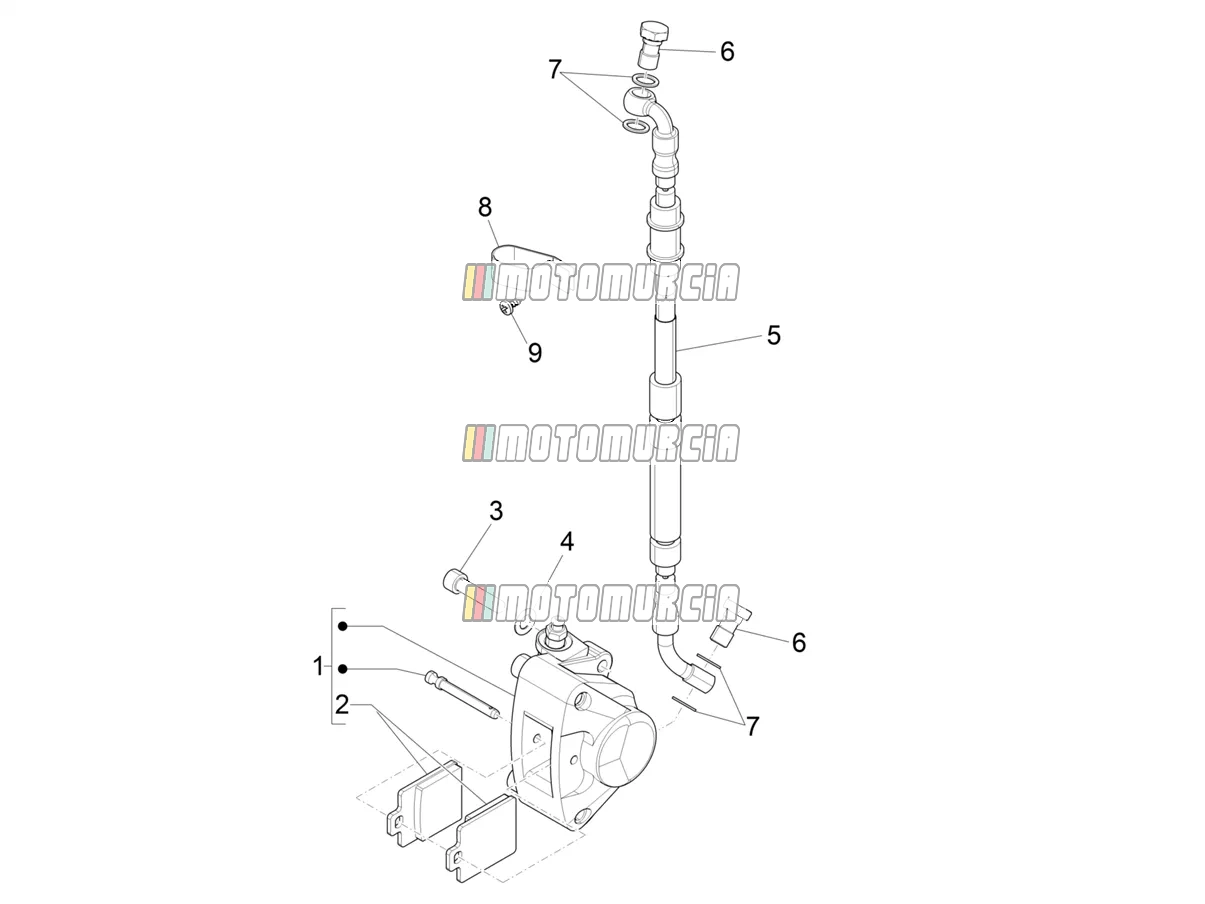

Exploded view — Brakes Pipes - Calipers

‹ Back to model

Piaggio Zip 50 4T 2021

Piaggio Zip 50 4T 2021

Brakes Pipes - Calipers

Products

1 Brake caliper (Heng-Tong) Available CM065704

Brake Caliper bottom connection, Heng Tong, front Piaggio Group · CM065704 Available

€ 71,40

2 Brake pads (Heng Tong) Available 651356

Brake pad set Heng Tong Piaggio Group · 651356 Available

€ 23,21

3 Screw Available 597150

Screw M8x25 Piaggio Group · 597150 · Quantity needed: 2 Available

€ 1,72

4 Washer Available 709047

Washer Piaggio Group · 709047 · Quantity needed: 2 Available

€ 0,99

5 Brake hose Available 564417

Brake line, front Piaggio Group · 564417 Available

€ 80,37

6 Oil pipe screw M10x18 Available 265451

Hollow screw M10x18 Piaggio Group · 265451 Available

€ 4,91

7 Washer gasket Available 127927

Copper Flange Gasket 10x16x1 mm Piaggio Group · 127927 · Quantity needed: 2 Available

€ 1,31

8 Hose clamp Available 271536

Clamp Piaggio Group · 271536 · Quantity needed: 2 Available

€ 4,86

9 Screw Available 008432

Screw 3,5x9,5 mm Piaggio Group · 008432 · Quantity needed: 2 Available

€ 1,48
