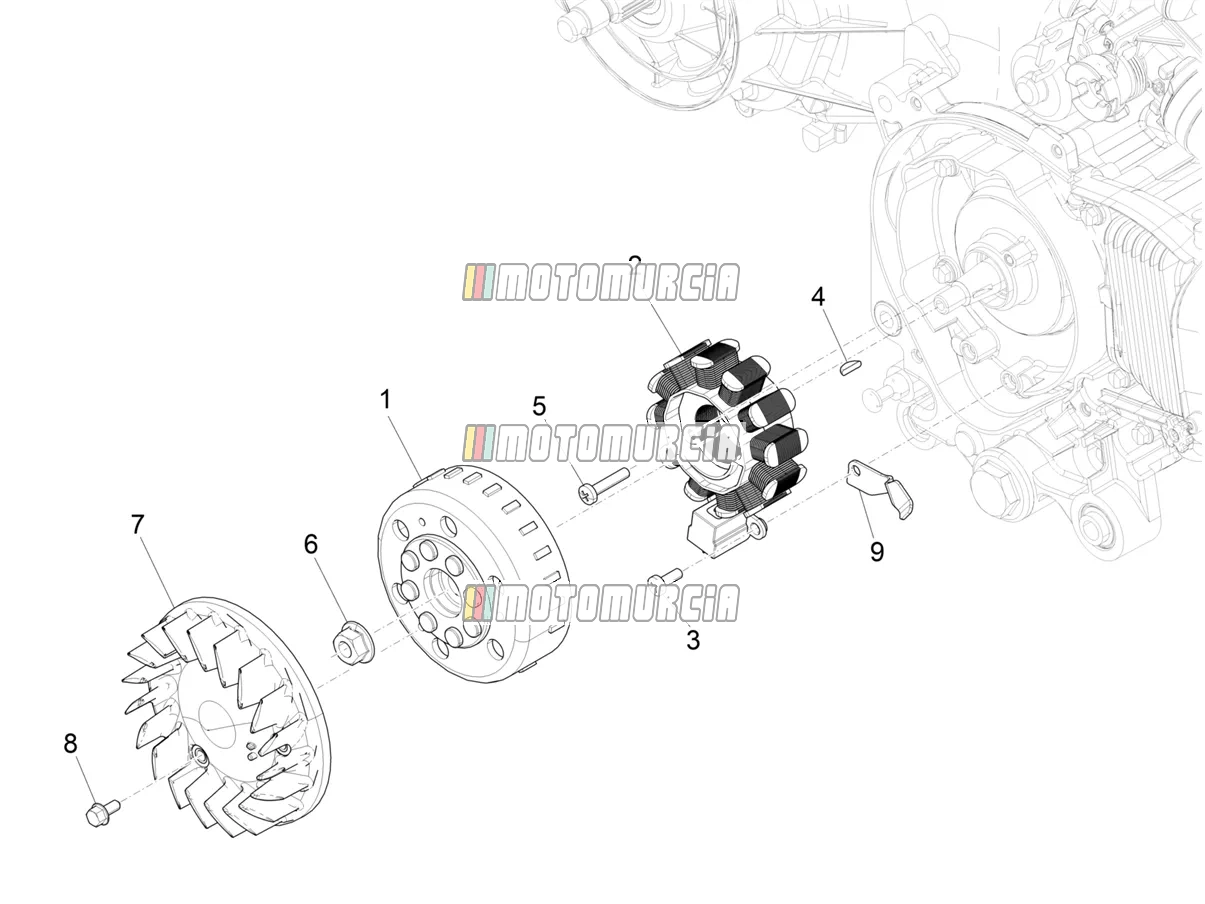

Exploded view — Flywheel Magneto

‹ Back to model

Piaggio Zip 50 4T 2021

Piaggio Zip 50 4T 2021

Flywheel Magneto

Products

1 Rotor complete with hub Available 1A003819

Flywheel Piaggio Group · 1A003819 Available

€ 87,64

2 Stator Available 1D000981

Armature Plate / Stator Plate Piaggio Group · 1D000981 Available

€ 117,67

3 Screw Available 873979

Screw M5x14 Piaggio Group · 873979 · Quantity needed: 2 Available

€ 1,45

4 Woodruff key Available 000267

Alternator wedge, 12,6x5x3 Piaggio Group · 000267 Available

€ 2,77

5 Screw Available 015597

Screw M5x25 Piaggio Group · 015597 · Quantity needed: 2 Available

€ 1,75

6 Flanged nut Available 289005

Standard nut Piaggio Group · 289005 Available

€ 1,25

7 Fan (generator) Available 1A011563

Fan Wheel Piaggio Group · 1A011563 Available

€ 47,12

8 Screw Available 484123

Flanged Screw Piaggio Group · 484123 · Quantity needed: 3 Available

€ 0,99

9 Plate Available 1A007030

Mounting Piaggio Group · 1A007030 Available

€ 1,28
