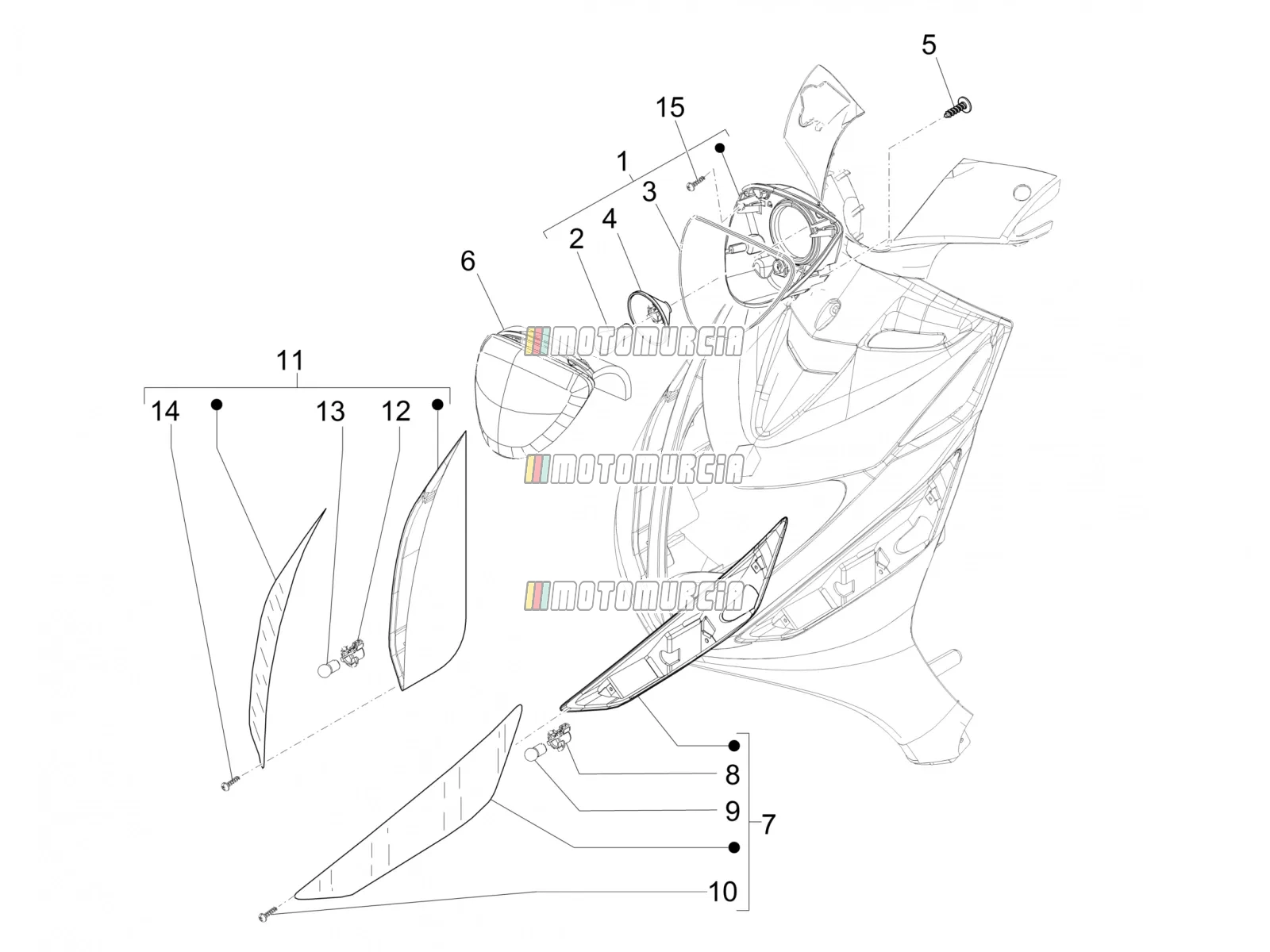

Exploded view — Front Headlamps - Turn Signal Lamps

‹ Back to model

Piaggio Zip 50 4T 2021

Piaggio Zip 50 4T 2021

Front Headlamps - Turn Signal Lamps

Products

1 Headlight Available 638553

Head Lights Piaggio Group · 638553 Available

€ 102,95

2 Bulb (BA20D 12V 35/35W) Available 219528

Bulbs Bulb, 12 V, 35/35 W, BA20d Piaggio Group · 219528 Available

€ 10,09

3 Gasket 494979 No longer available

494979 Gasket
No longer available

4 Lampholder Available 582490

Light Bracket Piaggio Group · 582490 Available

€ 19,41

5 Screw Available 270793

Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 5 Available

€ 0,99

6 Glass Available 638554

Cover Piaggio Group · 638554 Available

€ 82,04

7 Glass Available CM062701

Indicator front, left Piaggio Group · CM062701 Available

€ 35,25

9 Bulb (BA15S 12V 10W) Available 181746

Bulbs Bulb, 12 V, 10 W, BA15s Piaggio Group · 181746 Available

€ 3,17

10 Screw Backorder 581569

Screw Piaggio Group · 581569 · Quantity needed: 2 Backorder

€ 1,26

11 Glass Available CM062702

Indicator front, right Piaggio Group · CM062702 Available

€ 35,25

12 Lampholder Available 250521

Lamp socket Piaggio Group · 250521 Available

€ 11,25

15 Screw Available 008999

Screw Piaggio Group · 008999 · Quantity needed: 2 Available

€ 1,45
