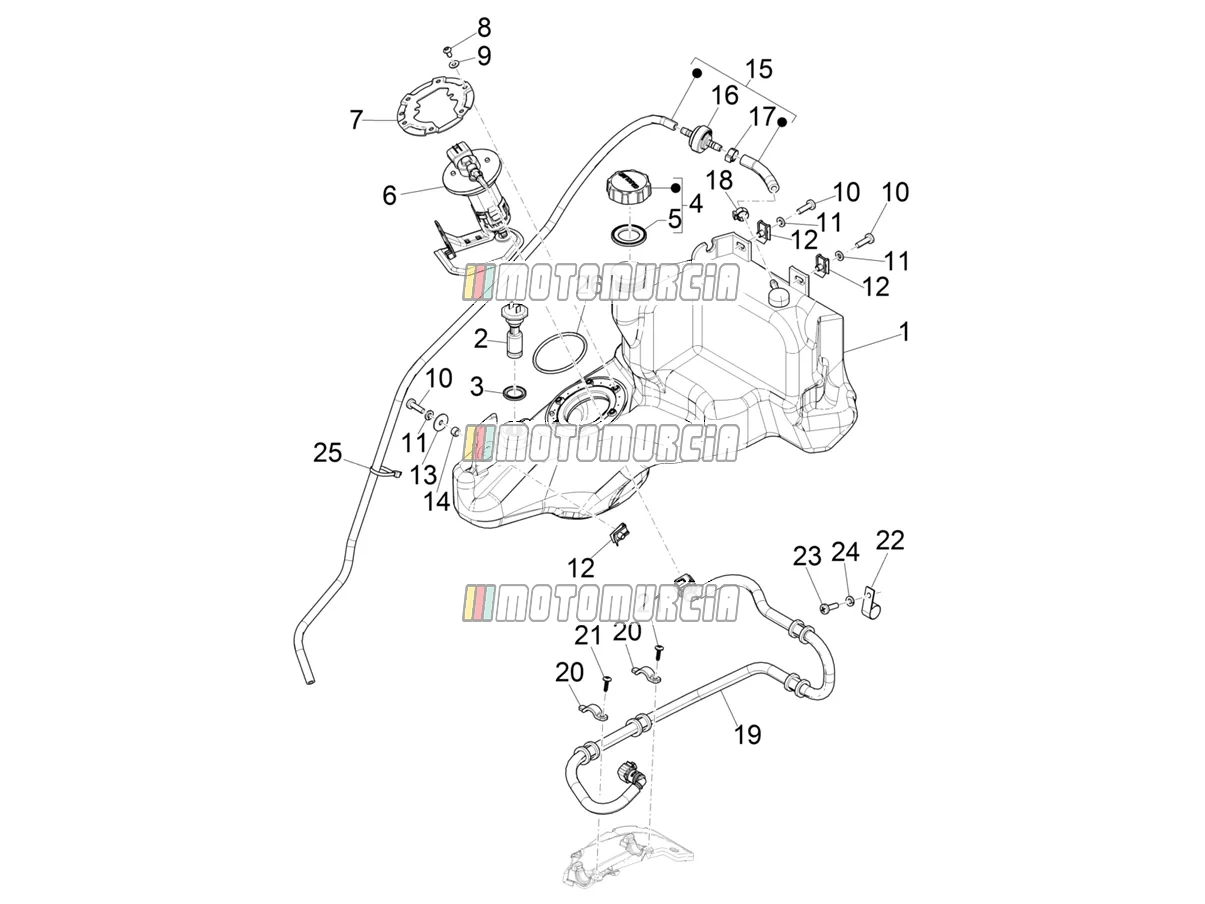

Exploded view — Fuel Tank

Products

1 Fuel tank Available 1B004699

•

  Petrol Tank Piaggio Group · 1B004699 Available

  € 379,27

  Add to cart

2 Fuel level gauge Available 297221

•

  Petrol Guage Piaggio Group · 297221 Available

  € 52,30

  Add to cart

3 Gasket Available 1B005110

•

  Gasket Piaggio Group · 1B005110 Available

  € 2,57

  Add to cart

4 Plug Available 656022

•

  Tank Cap Piaggio Group · 656022 Available

  € 40,51

  Add to cart

5 Tank cover gasket Available 656021

•

  Gasket Piaggio Group · 656021 Available

  € 22,94

  Add to cart

6 Fuel pump Available 1D001375

•

  Petrol Pump Piaggio Group · 1D001375 Available

  € 297,95

  Add to cart

7 Fuel pump spring holder Available 1B005066

•

  Flange Piaggio Group · 1B005066 Available

  € 14,41

  Add to cart

8 Screw Available AP8152267

•

  Screw M5x12 Piaggio Group · AP8152267 · Quantity needed: 6 Available

  € 2,54

  Add to cart

9 Washer Available 006078

•

  Washer 12x5,2x1 mm Piaggio Group · 006078 · Quantity needed: 6 Available

  € 0,99

  Add to cart

10 Screw Available 015759

•

  Screw M6x20 Piaggio Group · 015759 · Quantity needed: 3 Available

  € 1,39

  Add to cart

11 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 3 Available

  € 1,79

  Add to cart

12 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 3 Available

  € 2,04

  Add to cart

13 Washer Available 270216

•

  Washer Piaggio Group · 270216 Available

  € 0,99

  Add to cart

14 Spacer Available 622306

•

  Spacer Piaggio Group · 622306 Available

  € 1,44

  Add to cart

15 Complete breather pipe Backorder 1B005133

•

  Breather Pipe Piaggio Group · 1B005133 Backorder

  € 133,02

  Add to cart

16 Safety valve Available 576748

•

  Valve Piaggio Group · 576748 Available

  € 48,56

  Add to cart

18 Clamp Available CM001914

•

  Clamp Piaggio Group · CM001914 Available

  € 1,65

  Add to cart

19 Fuel hose Available 1B004942

•

  Petrol pipe Piaggio Group · 1B004942 Available

  € 157,91

  Add to cart

20 Fuel pump retainer Available 1B005004

•

  Clamp Piaggio Group · 1B005004 · Quantity needed: 2 Available

  € 3,30

  Add to cart

21 Screw Available 270793

•

  Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 2 Available

  € 0,99

  Add to cart

22 Clamp Available 1B004945

•

  Clamp Piaggio Group · 1B004945 · Quantity needed: 2 Available

  € 1,61

  Add to cart

23 Screw Available 969296

•

  Flanged Screw M6x10 Piaggio Group · 969296 Available

  € 1,48

  Add to cart

25 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

  € 1,43

  Add to cart

26 Gasket (fuel pump) Available 1B002953

•

  Gasket Piaggio Group · 1B002953 Available

  € 2,83

  Add to cart
