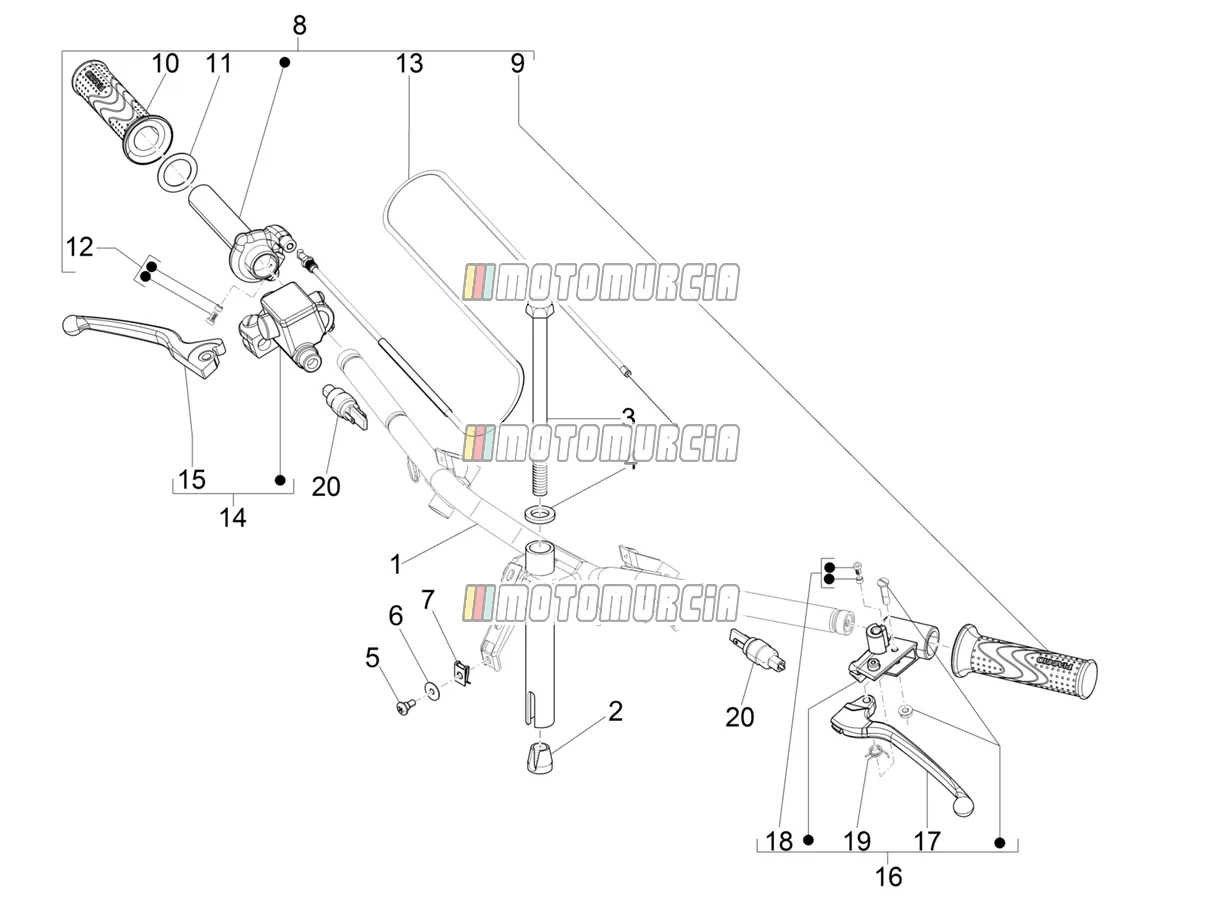

Exploded view — Handlebars - Master Cil.

Products

1 Handlebar Available 5830684

•

  Handlebar Piaggio Group · 5830684 Available · Shipped in 3–5 working days

  € 75,84

  Add to cart

2 Cone Available 583840

•

  Cone Piaggio Group · 583840 Available · Shipped in 3–5 working days

  € 7,99

  Add to cart

3 Screw Available 582446

•

  Screw Piaggio Group · 582446 Available · Shipped in 3–5 working days

  € 4,15

  Add to cart

4 Washer Available 563327

•

  Washer Piaggio Group · 563327 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

5 Screw Available 259348

•

  Oval Head Screw Piaggio Group · 259348 Available · Shipped in 3–5 working days

  € 1,08

  Add to cart

6 Washer d6,2x20x1 Available 013092

• • ABS version
  • ABS version


  Washer 6,2x20x1 mm Piaggio Group · 013092 Available · Shipped in 3–5 working days

  € 1,26

  Add to cart

7 Clip nuts (M6) Available 254485

• • Year of manufacture: 2012
  • Year of manufacture: 2013


  Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart

8 Throttle cable Available 1C004734

•

  Throttle grip Piaggio Group · 1C004734 Available · Shipped in 3–5 working days

  € 60,32

  Add to cart

9 Grip Left Available 274489

•

  Rubber Grip left Piaggio Group · 274489 Available · Shipped in 3–5 working days

  € 9,12

  Add to cart

10 Grip Right Available 274491

•

  Rubber Grip right Piaggio Group · 274491 Available · Shipped in 3–5 working days

  € 9,12

  Add to cart

11 Ring 38,3x27x1,2 Available 562923

•

  Washer Piaggio Group · 562923 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

13 Throttle cable Available 1C003164

• 1C003164 Throttle cable


  Throttle cable Piaggio Group · 1C004733 ↻ Replaces 1C003164, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 30,00

  Add to cart

14 Brakes pump Available CM064304

•

  Master brake cylinder Heng Tong, right Piaggio Group · CM064304 Available · Shipped in 3–5 working days

  € 169,90

  Add to cart

15 Brake lever (Heng Tong) Available 497041

•

  Brake Lever black, Heng Tong (x 18) Piaggio Group · 497041 Available · Shipped in 3–5 working days

  € 12,10

  Add to cart

  Alternatives from other brands



  Lever Set Black 2torq · AGDS612 Available · Shipped in 4–7 working days

  € 8,95

  Add to cart



  Black Brake Lever 2torq · AGDS605 Available · Shipped in 4–7 working days

  € 8,95

  Add to cart

16 Brake lever Available CM293401

•

  Brake Handle left Piaggio Group · CM293401 Available · Shipped in 3–5 working days

  € 33,89

  Add to cart

17 Brake lever Available 564682

•

  Brake Lever left Piaggio Group · 564682 Available · Shipped in 3–5 working days

  € 10,49

  Add to cart

  Alternatives from other brands



  Rear Brake Lever Black 2torq · AGS72 Available · Shipped in 4–7 working days

  € 8,95

  Add to cart

  LEVER Domino · 313061 Backorder · Shipped in 2–5 weeks

  € 7,26

  Add to cart

18 Screw Available 123394

•

  Screw Piaggio Group · 123394 Available · Shipped in 3–5 working days

  € 2,86

  Add to cart

19 Spring Available 267948

•

  Spring Piaggio Group · 267948 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,44

  Add to cart

20 Brake light switch Available 642032

• • AJP brake system
  • ABS version


  Stop light switch Piaggio Group · 642032 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 11,54

  Add to cart
