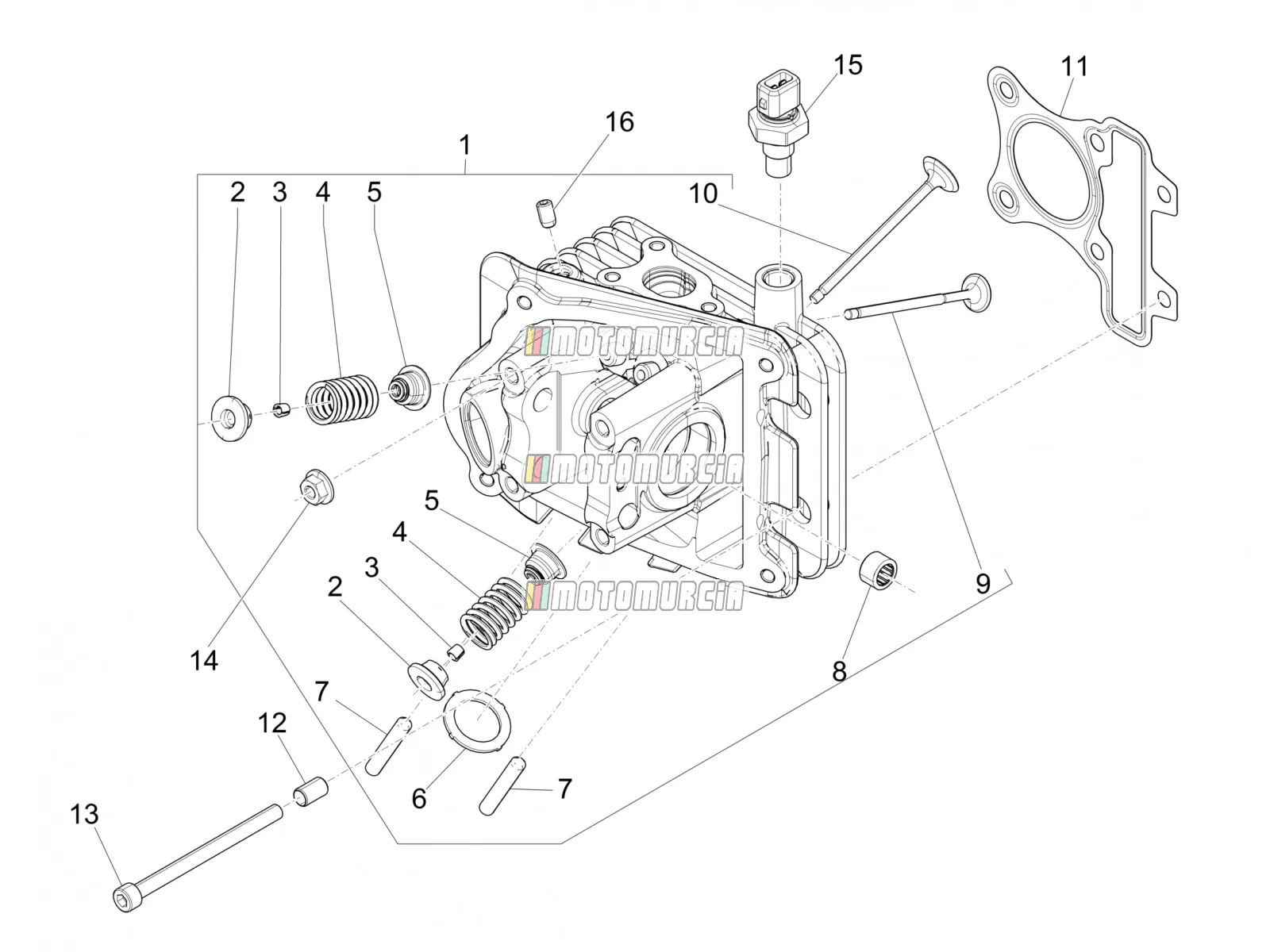

Exploded view — Head Unit - Valve

‹ Back to model
Piaggio Zip 50 4T 2021 Piaggio Zip 50 4T 2021
Head Unit - Valve

Products

1 Cylinder head assembly 1A004831 No longer available
  • 1A004831 Cylinder head assembly
    No longer available
2 Upper cap Available 871889
  • Spring Mount Piaggio Group · 871889 · Quantity needed: 3 Available
    € 5,00
3 Valve half-cone Available 843338
  • Sleeve Piaggio Group · 843338 · Quantity needed: 6 Available
    € 11,53
4 Spring Available 845951
  • Spring Piaggio Group · 845951 · Quantity needed: 3 Available
    € 11,59
5 Valve stem seal Available 1A004845
  • Oil seal Piaggio Group · 1A004845 · Quantity needed: 3 Available
    € 8,68
6 Exhaust gasket Available 845776
  • Gasket Piaggio Group · 845776 Available
    € 13,13
7 Stud bolt Available 016060
  • Screw M6x37 Piaggio Group · 016060 · Quantity needed: 2 Available
    € 7,09
8 Roller cage 9x13x8 Available 1A000511
9 Valve (IN) Available 1A003878
  • Inlet valve Piaggio Group · 1A003878 · Quantity needed: 2 Available
    € 24,20
10 Valve (EX) Available 1A003803
  • Exhaust valve Piaggio Group · 1A003803 Available
    € 65,46
11 Cylinder head gasket (0,25 mm) Available 872627
12 Dowel pin Available 277916
  • Adapter Sleeve Piaggio Group · 277916 · Quantity needed: 2 Available
    € 7,27
13 Screw Available 319242
  • Screw M6x80 Piaggio Group · 319242 · Quantity needed: 2 Available
    € 1,77
14 Nut Available 969224
  • Standard nut Piaggio Group · 969224 · Quantity needed: 4 Available
    € 0,99
15 Water temperature switch Available 58273R
16 2 - Plug M6x10 (M6x10) Available 842360
