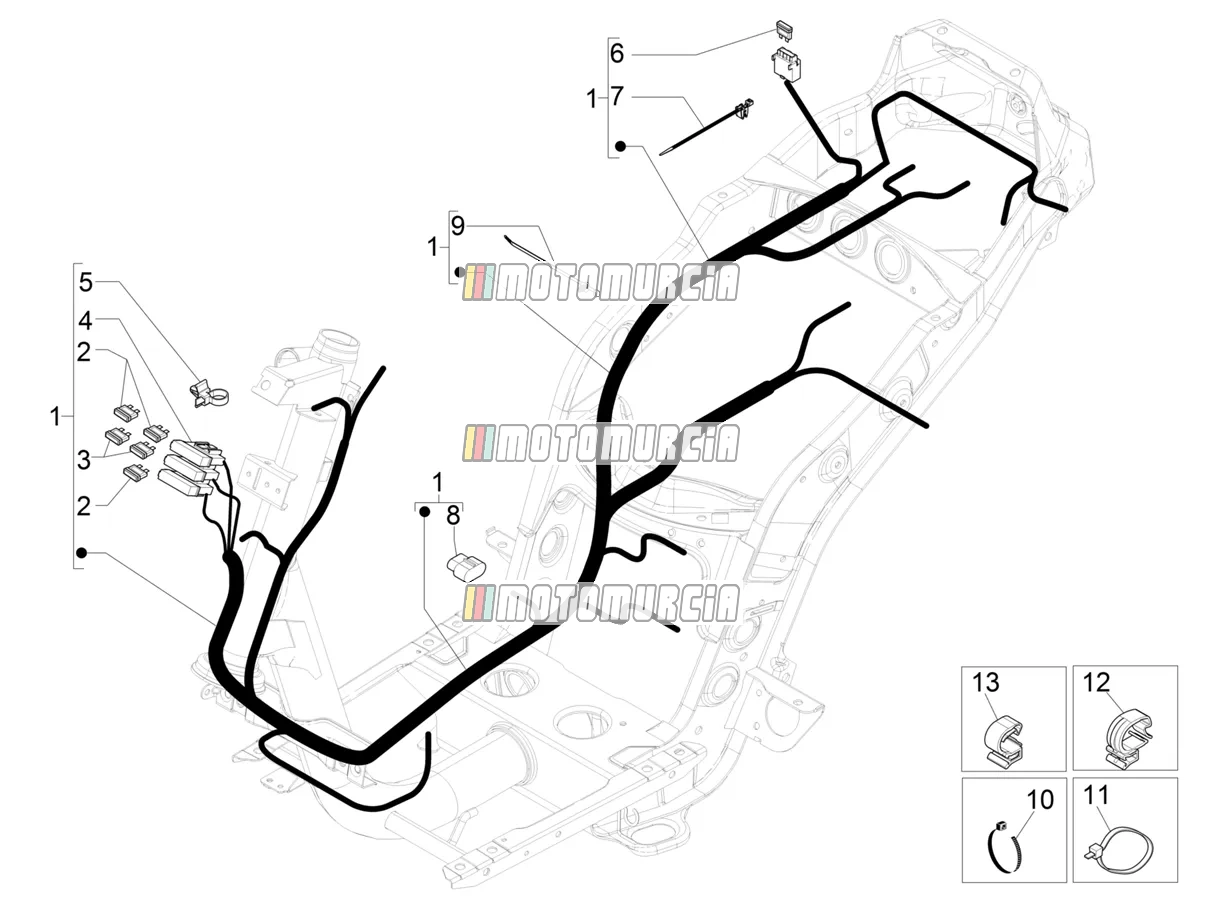

Exploded view — Main Cable Harness

Products

1 Cable harness Available 1D002448

•

  Wiring harness Piaggio Group · 1D002448 Available

  € 965,68

  Add to cart

2 Fuse (5A) Available 293256

•

  Fuse 5 A Piaggio Group · 293256 · Quantity needed: 3 Available

  € 2,09

  Add to cart

3 Fuse (7,5A) Available 252945

•

  Fuse 7,5 A Piaggio Group · 252945 · Quantity needed: 2 Available

  € 2,86

  Add to cart

4 Fuse holder Available 580653

•

  Fuse Box Piaggio Group · 580653 · Quantity needed: 3 Available

  € 14,21

  Add to cart

5 Clamp Available 640879

•

  Clamp Piaggio Group · 640879 Available

  € 5,83

  Add to cart

6 Fuse (20A) Available 580561

•

  Fuse 20 A Piaggio Group · 580561 Available

  € 6,01

  Add to cart

7 Clamp Available 668762

•

  Clamp Piaggio Group · 668762 Available

  € 2,63

  Add to cart

8 Plug connect diagnos ECU Available 582928

•

  Covering Cap, for diagnostic connector Superseal Piaggio Group · 582928 Available

  € 3,34

  Add to cart

9 Wiring clip Available 1D001143

•

  Clamp Piaggio Group · 1D001143 · Quantity needed: 3 Available

  € 1,45

  Add to cart

10 Clamp Available 191117

•

  Clamp Piaggio Group · 191117 · Quantity needed: 7 Available

  € 1,45

  Add to cart

11 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 4 Available

  € 0,99

  Add to cart
•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 4 Available

  € 1,43

  Add to cart

12 Pipes/cables retainer spring Available CM013202

•

  Clamp Piaggio Group · CM013202 Available

  € 3,13

  Add to cart

13 Clamp Available CM013201

•

  Clamp Piaggio Group · CM013201 Available

  € 1,32

  Add to cart
