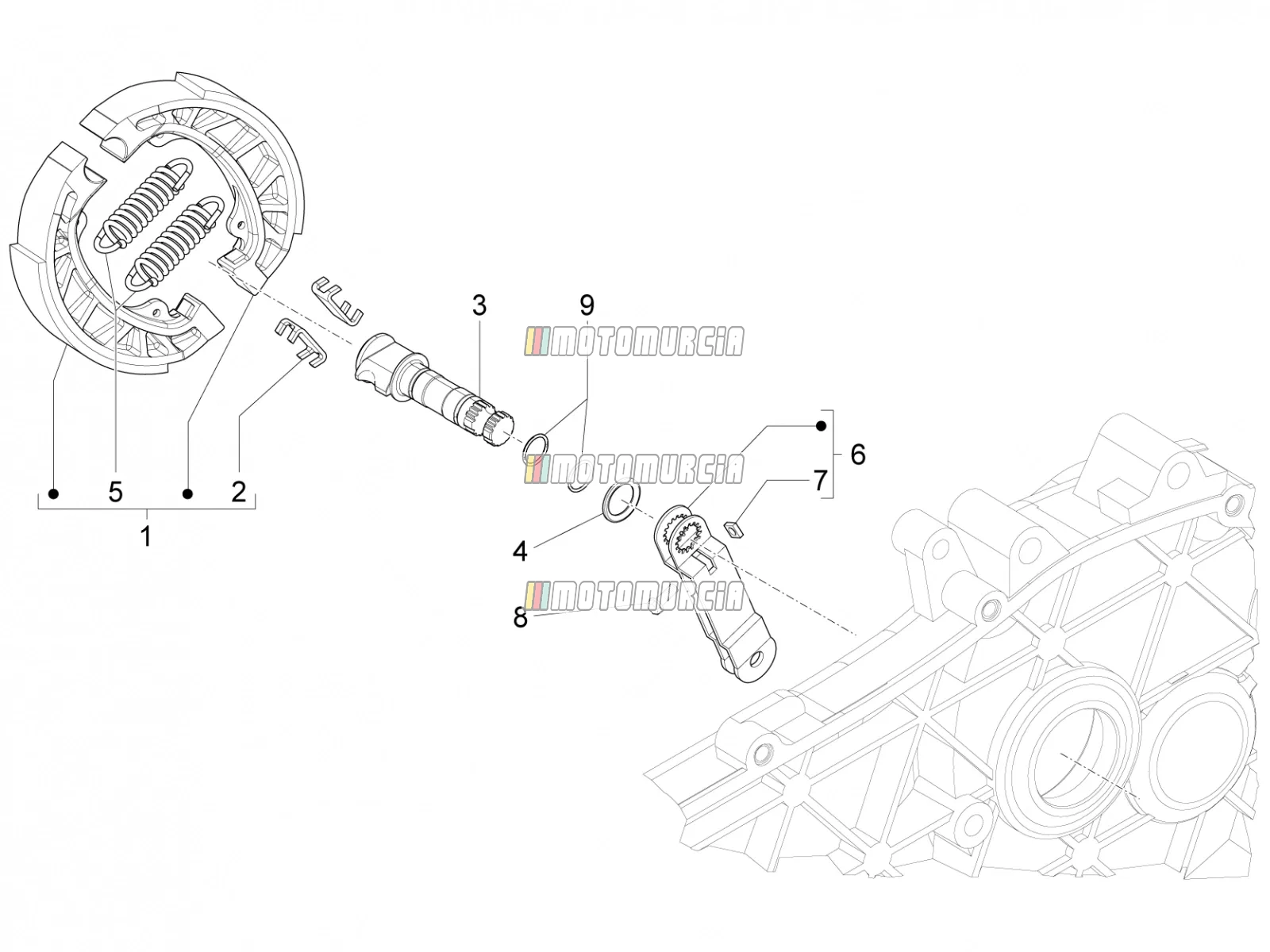

Exploded view — Rear Brake - Brake Jaw

‹ Back to model

Piaggio Zip 50 4T 2021

Piaggio Zip 50 4T 2021

Rear Brake - Brake Jaw

Products

1 Brake shoe Available 82907R

Brake shoe set Piaggio Group · 82907R Available

€ 24,10

2 Plate Available 266724

Plate Piaggio Group · 266724 · Quantity needed: 2 Available

€ 36,11

3 Rear brake cam Available B014502

Brake cam Piaggio Group · B014502 Available

€ 54,72

4 Gasket ring Available 273419

Oil seal Piaggio Group · 273419 Available

€ 1,82

5 Brake shoes return spring Available 647384

Brake shoe spring Piaggio Group · 647384 · Quantity needed: 2 Available

€ 2,02

6 Rear brake lever Available 833788

Brake Lever Piaggio Group · 833788 Available

€ 41,39

7 Nut Available 828862

Square nut Piaggio Group · 828862 Available

€ 2,31

8 Screw Available B011784

Screw Piaggio Group · B011784 Available

€ 2,60

9 Packing Available B014507

Oil seal Piaggio Group · B014507 · Quantity needed: 2 Available

€ 0,99
