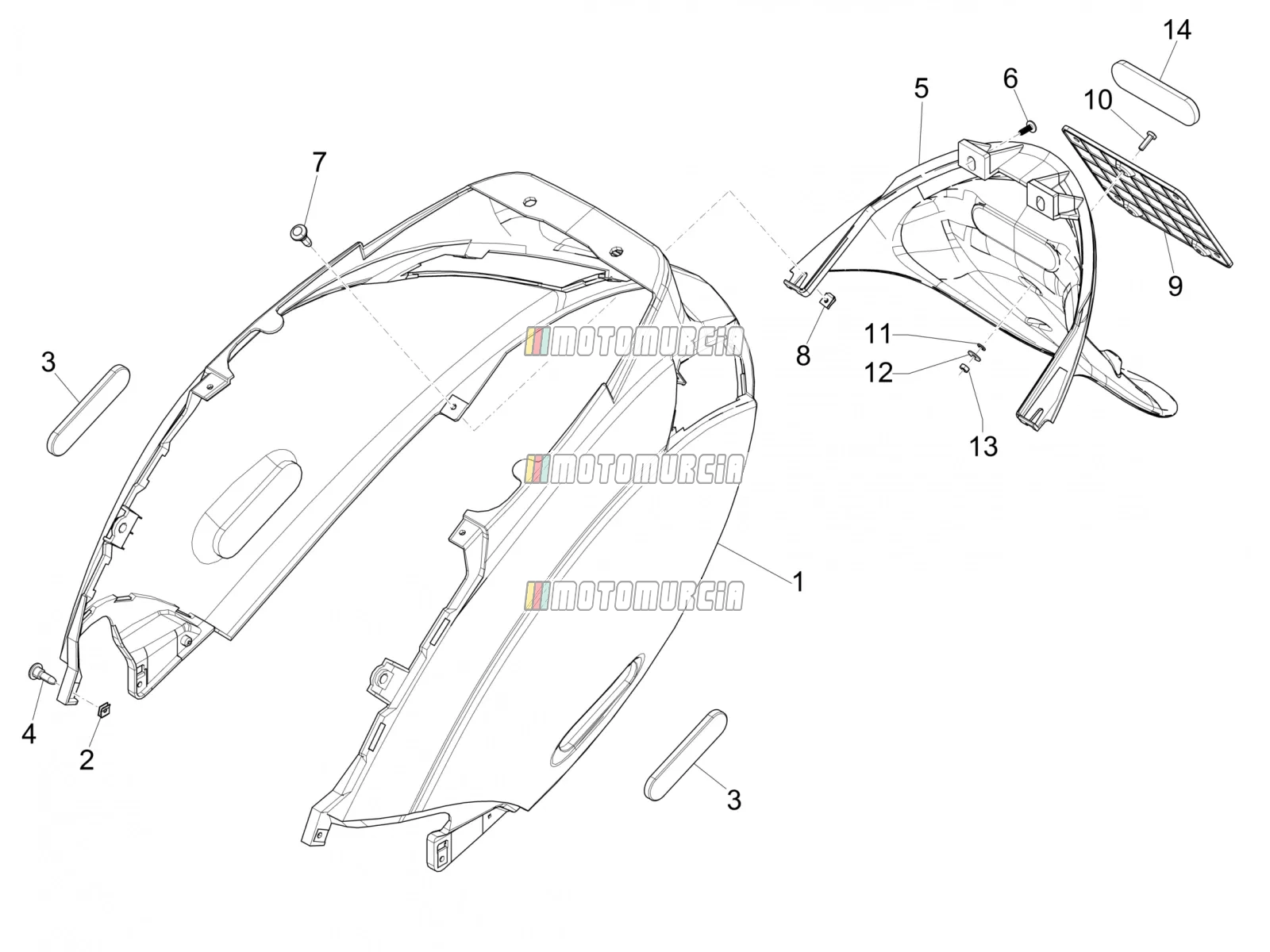

Exploded view — Rear Cover - Splash Guard

Products

1 Rear protection Available 1B005483000EZ

•

  Rear Fairing, grey, Suffix: EZ_grey titan 742/B Piaggio Group · 1B005483000EZ Available

  € 122,60

  Add to cart
•

  Rear Fairing, white, Suffix: 87_white optic 724 Piaggio Group · 1B00548300087 Available

  € 122,60

  Add to cart
•

  Rear Fairing, black, Suffix: 90_black shiny 094 Piaggio Group · 1B00548300090 Available

  € 122,60

  Add to cart
•

  Rear Fairing, primed Piaggio Group · 1B005483 Backorder

  € 402,86

  Add to cart
•

  Rear Fairing, blue, Suffix: DZ_284/A blue matt Piaggio Group · 1B005483000DZ Available

  € 111,77

  Add to cart

2 Clip nuts Available CM017403

•

  Sheet nut Piaggio Group · CM017403 · Quantity needed: 4 Available

  € 1,25

  Add to cart

3 Lateral reflector Available 58231R5

•

  Reflector Piaggio Group · 58231R5 · Quantity needed: 2 Available

  € 13,83

  Add to cart

5 Splash guard Available 576175000C

•

  Number Plate Holder, black, dyed Piaggio Group · 576175000C Available

  € 57,66

  Add to cart
•

  Number Plate Holder, black, dyed Piaggio Group · 575409000C Available

  € 43,44

  Add to cart

6 Screw Available 259349

•

  Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available

  € 0,99

  Add to cart

7 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 · Quantity needed: 2 Available

  € 0,99

  Add to cart

8 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available

  € 0,99

  Add to cart

9 License plate (Plastica 121x141) Available 638833

•

  License Plate Holder 121x141 mm, plastic Piaggio Group · 638833 Available

  € 7,02

  Add to cart

10 Screw Available 015996

•

  Screw M4x12 Piaggio Group · 015996 · Quantity needed: 3 Available

  € 0,99

  Add to cart

11 Washer Available 013763

•

  Washer 4,2x12x1 mm Piaggio Group · 013763 · Quantity needed: 3 Available

  € 0,99

  Add to cart

12 Washer (spring) Available 016404

•

  Washer 4,2x7,6x0,9 mm Piaggio Group · 016404 · Quantity needed: 3 Available

  € 0,99

  Add to cart

13 Nut M4 Available 020104

•

  Standard nut Piaggio Group · 020104 · Quantity needed: 3 Available

  € 0,99

  Add to cart

14 Rear retroreflector Available 58233R5

•

  Reflector red Piaggio Group · 58233R5 Available

  € 14,87
