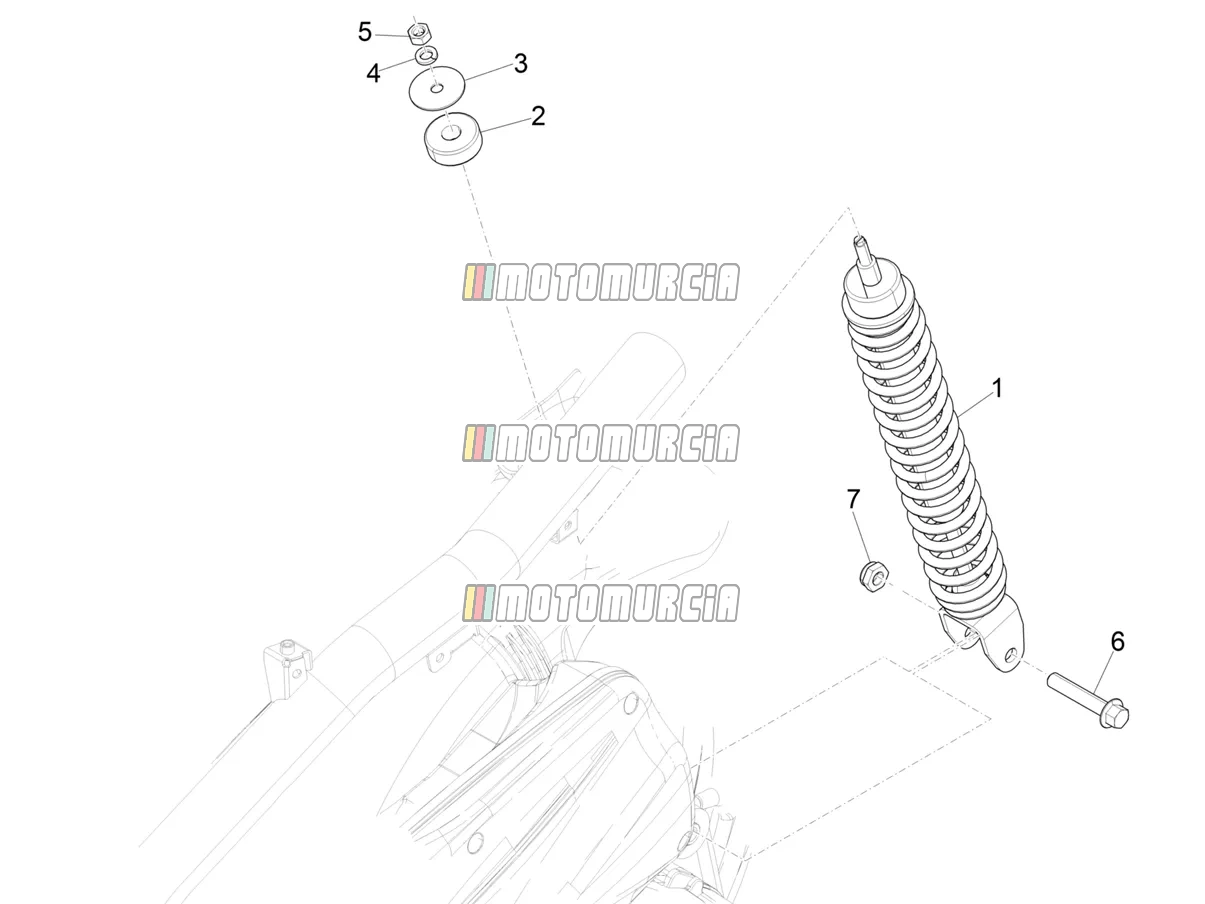

Exploded view — Rear Suspension - Shock Absorber/s

‹ Back to model

Piaggio Zip 50 4T 2021

Piaggio Zip 50 4T 2021

Rear Suspension - Shock Absorber/s

Products

1 Rear shock absorber Available 1C003150

Shocks rear Piaggio Group · 1C003150 Available

€ 229,15

2 Silentblock Available 178150

Buffer Piaggio Group · 178150 Available

€ 3,27

3 Washer Available 267038

Washer Piaggio Group · 267038 Available

€ 1,29

4 Washer (spring) Available 016408

Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 Available

€ 1,84

5 Nut Available 021108

Standard nut Piaggio Group · 021108 Available

€ 1,48

6 Screw Available 268158

Flanged Screw M10 Piaggio Group · 268158 Available

€ 2,18

7 Nut Available 002440

Standard nut M10 Piaggio Group · 002440 Available

€ 1,11
