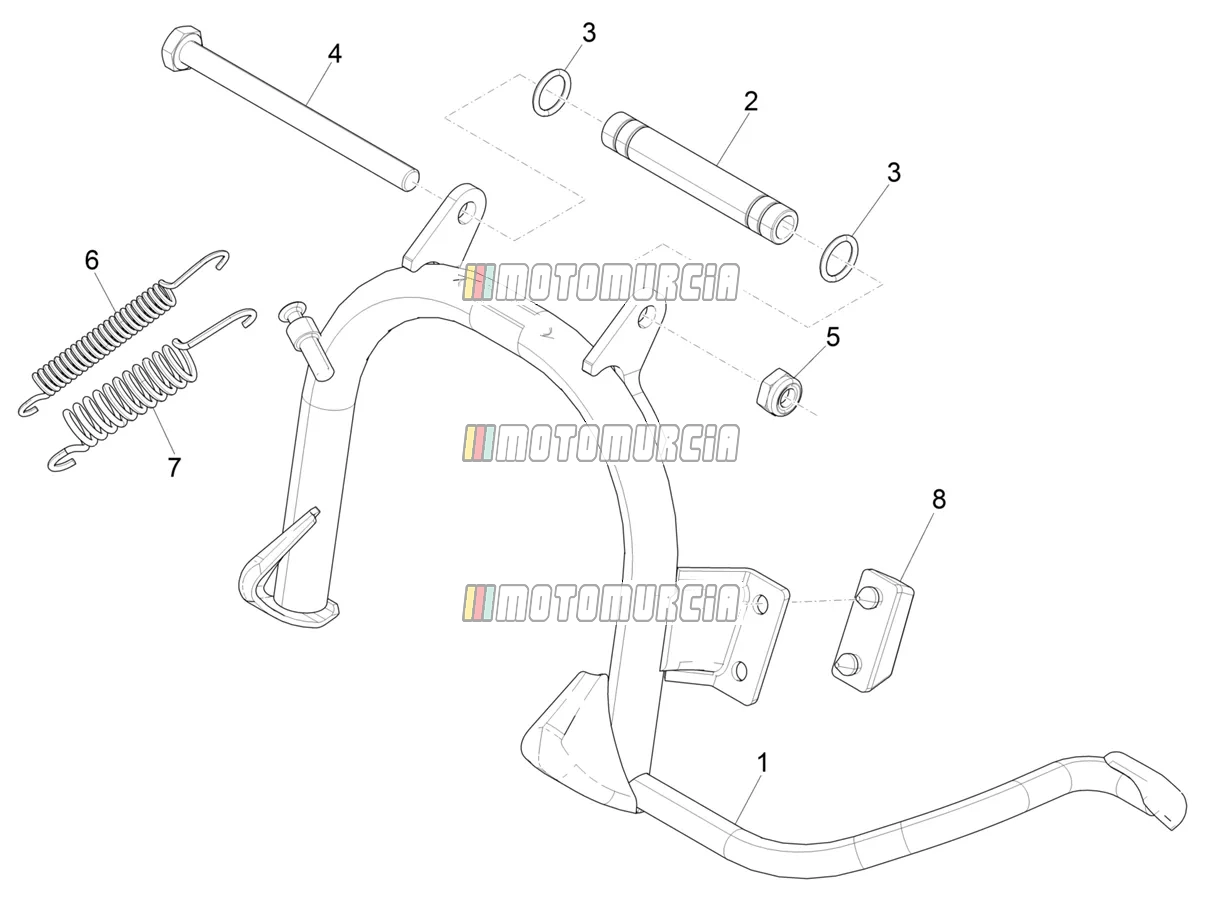

Exploded view — Stand/s

‹ Back to model

Piaggio Zip 50 4T 2021

Piaggio Zip 50 4T 2021

Stand/s

Products

1 Main Stand comp. Available 582060

Centre stand Piaggio Group · 582060 Available

€ 57,25

2 Spacer Available 582298

Spacer Piaggio Group · 582298 Available

€ 16,90

3 O-Ring Available 273754

O-Ring Piaggio Group · 273754 · Quantity needed: 2 Available

€ 0,99

4 Screw Available 030115

Hexagon Screw M10x130 Piaggio Group · 030115 Available

€ 4,09

5 Nut Available 002440

Standard nut M10 Piaggio Group · 002440 Available

€ 1,11

6 Spring Available 582505

Spring for main stand Piaggio Group · 582505 Available

€ 7,55

7 Spring Available 582504

Spring for main stand Piaggio Group · 582504 Available

€ 4,08

8 Pad Available 563984

Rubber stop Piaggio Group · 563984 Available

€ 3,18
