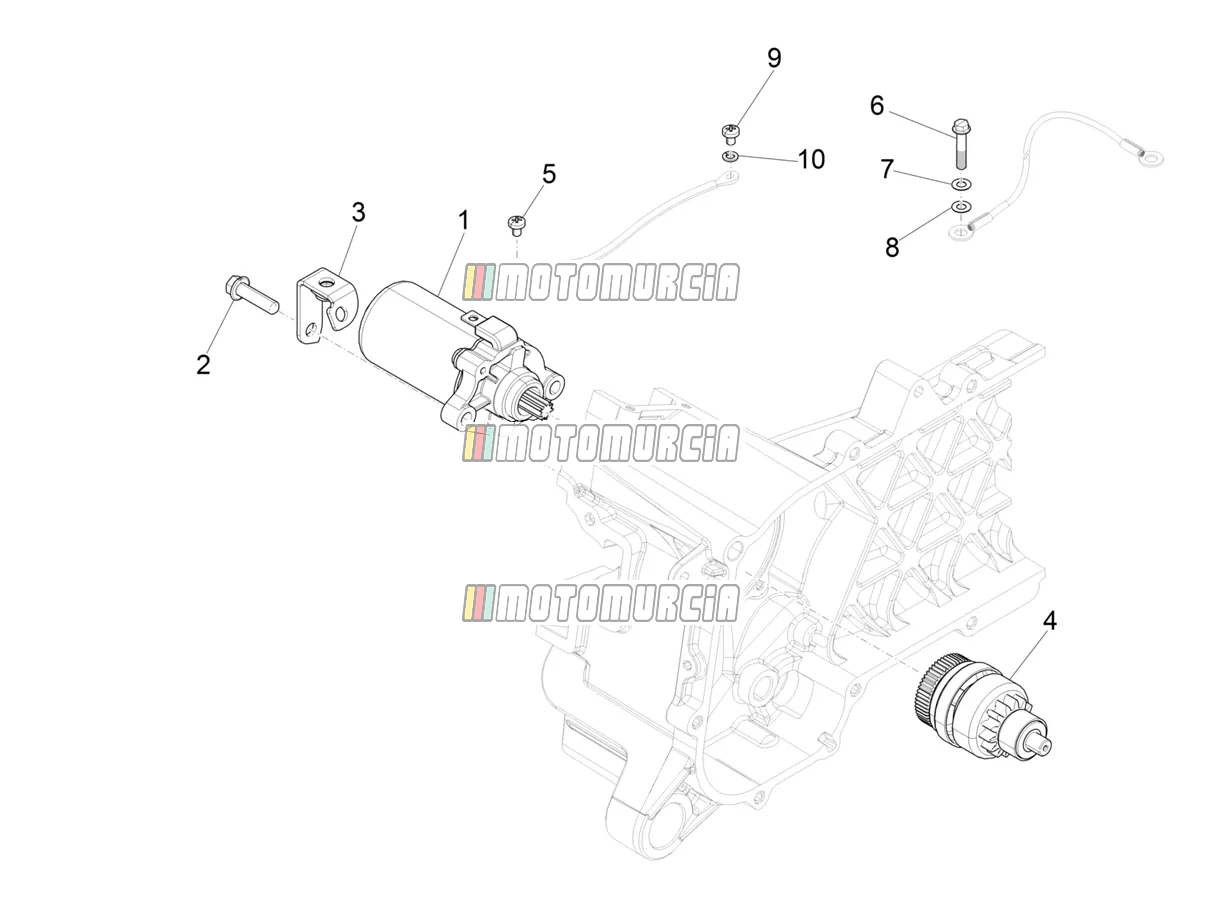

Exploded view — Stater - Electric Starter

Products

1 Starter motor Available 1D001194

•

  Starter Motor Piaggio Group · 1D001194 Available · Shipped in 3–5 working days

  € 117,30

  Add to cart

  Alternatives from other brands

  Starter Motor Mitsuba PMDD Piaggio WAI · 30932N Available · Shipped in 4–7 working days

  € 41,31

  Add to cart

2 Screw Available B016793

•

  Screw M6x22 Piaggio Group · B016793 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,63

  Add to cart

3 Bracket with U.P. Available 1A011045

•

  Shackle Piaggio Group · 1A011045 Available · Shipped in 3–5 working days

  € 16,88

  Add to cart

4 Starter bendix gear Available 289202

•

  Starter Clutch Piaggio Group · 289202 Available · Shipped in 3–5 working days

  € 92,69

  Add to cart

5 Screw Available 969296

• • ABS version
  • E3
  • E4


  Flanged Screw M6x10 Piaggio Group · 969296 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

6 Screw Available 641204

•

  Hexagon Screw Piaggio Group · 641204 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

7 Washer Available 016406

• • Taiwan


  Washer 6,4x11,8x1 mm Piaggio Group · 016406 Available · Shipped in 3–5 working days

  € 1,79

  Add to cart

8 Washer Available 003056

• • Enjoy 2015


  Washer 6,4x12x1 mm Piaggio Group · 003056 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

9 Screw Available 018644

• • Year of manufacture: 2009


  Screw Piaggio Group · 018644 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

10 Washer (spring) Available 016404

• • Switzerland version E3
  • Year of manufacture: 2011


  Washer 4,2x7,6x0,9 mm Piaggio Group · 016404 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart
