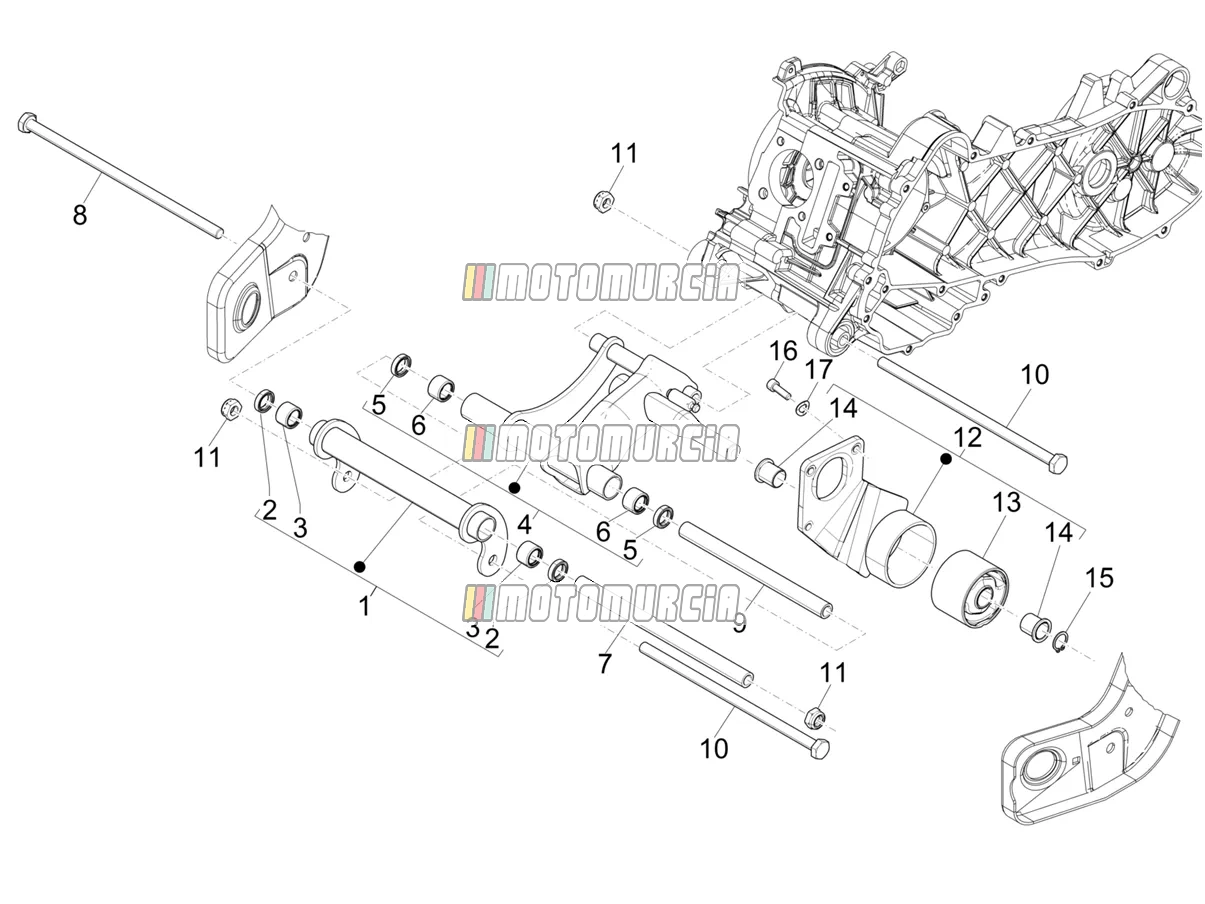

Exploded view — Swinging Arm

Products

1 Complete swinging arm on frame side Available 1C003075

•

  Swingarm Piaggio Group · 1C003075 Available

  € 86,70

  Add to cart

2 Gasket Available 1C001341

•

  Shaft Seal 15x21x5 mm Piaggio Group · 1C001341 · Quantity needed: 2 Available

  € 8,16

  Add to cart

3 Needle bearing Available 56127R

•

  Needle bearing HK 15/14 RS, 14x15x21 mm Piaggio Group · 56127R · Quantity needed: 2 Available

  € 10,13

  Add to cart

4 Complete swinging arm on engine side Available 1C003077

•

  Swingarm Piaggio Group · 1C003077 Available

  € 210,55

  Add to cart

7 Spacer Available CM067802

•

  Spacer length: 21,5cm, Ø 15,00 mm Piaggio Group · CM067802 Available

  € 27,07

  Add to cart

8 Screw Available 563977

•

  Hexagon Screw M10x245 Piaggio Group · 563977 Available

  € 17,33

  Add to cart

9 Spacer (183 mm) Available CM067801

•

  Spacer length: 18,3cm, Ø 15,00 mm Piaggio Group · CM067801 Available

  € 20,12

  Add to cart

10 Screw Available 271807

•

  Hexagon Screw M10x202 Piaggio Group · 271807 · Quantity needed: 2 Available

  € 11,82

  Add to cart

11 Nut Available 002440

•

  Standard nut M10 Piaggio Group · 002440 · Quantity needed: 3 Available

  € 1,11

  Add to cart

12 Silentblock support bracket Backorder 1C003097

•

  Bracket Piaggio Group · 1C003097 Backorder

  € 164,55

  Add to cart

13 Silentblock - engine mount Available 272750

•

  Silentblock Piaggio Group · 272750 Available

  € 48,19

  Add to cart

14 Bush Available 273460

•

  Sleeve Piaggio Group · 273460 · Quantity needed: 2 Available

  € 1,29

  Add to cart

15 Seeger Available 006416

•

  Locking Ring Piaggio Group · 006416 Available

  € 1,65

  Add to cart

16 Screw Available 269755

•

  Screw M8x12 Piaggio Group · 269755 · Quantity needed: 3 Available

  € 1,59

  Add to cart

17 Washer Available 709047

•

  Washer Piaggio Group · 709047 · Quantity needed: 3 Available

  € 0,99

  Add to cart
