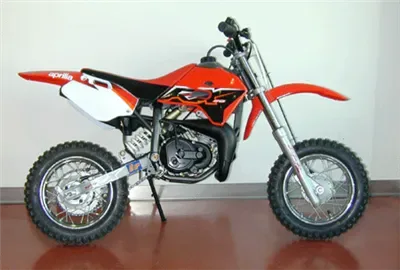

Original spare parts catalog for the Aprilia Mini RX Entry (2003) - find OEM parts for Aprilia Mini RX Entry 50

Version: Mini RX Entry

Year: 2003

Select other model

Original spare parts catalog for the Aprilia Mini RX Entry (2003) - find OEM parts for Aprilia Mini RX Entry 50

Looking for an other year or version of the Aprilia Mini RX Entry 50?

Select other model

Aprilia Mini RX Entry 50 2003 exploded views

Use the buttons below to filter drawings by group
Carburettor Aprilia Carburettor AP8350475 carburettor AP8350043 gas valve AP8350044 conical pin AP8350040 needle valve AP8350014 main jet AP8350028 idle jet AP8350035 starter jet AP8350016 screw AP8350039 cover AP8350042 gas valve spring AP8350032 conical pin clip AP8350031 clip AP8350009 cap AP8350008 spring AP8350036 adj.min.eng.speed screw AP8350050 screw AP8350053 carburetor, float assy AP8350030 float chamber AP8350034 screw AP8350046 gasket envelope AP8350047 choke control AP8350007 screw Carburettor

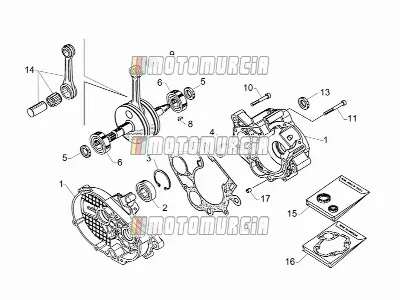

Crank-case-connect.rod Group Aprilia Crank-case-connect.rod Group AP8350089 crankcase assy AP8350095 bearing AP8350074 snap ring AP8350080 sealed bearing AP8350076 gasket AP8350094 bearing AP8350066 crankshaft AP8350096 flywheel key AP8350114 cage AP8350201 screw AP8350200 screw AP8350128 gasket AP8350077 gasket AP8350081 connecting rod AP8350174 pi seal rings, set AP8350175 gaskets set AP8350181 pin Crank-case-connect.rod Group
Exhaust Unit Aprilia Exhaust Unit AP8350483 exhaust pipe AP8350429 exhaust AP8350341 clamp AP8350442 spring AP8350342 spring AP8350349 nut AP8350287 screw AP8350280 silent-block Exhaust Unit

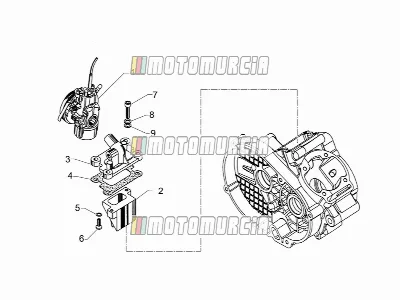

Fuel Supply Aprilia Fuel Supply AP8350475 carburettor AP8350191 reed valve assy AP8350161 intake manifold AP8350130 gasket AP8350168 washer AP8350207 screw AP8350197 screw AP8350170 washer AP8350162 washer Fuel Supply

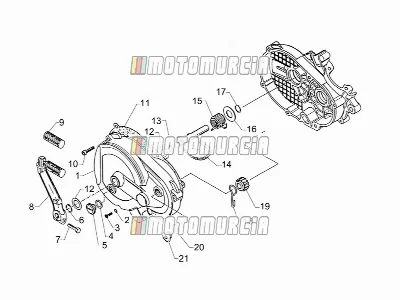

Kick-start Lev.cpl-clutch Cov. Aprilia Kick-start Lev.cpl-clutch Cov. AP8350091 clutch cover AP8350124 gasket AP8350208 screw AP8350123 gasket AP8350184 cover AP8350073 ring AP8350202 screw AP8350136 lever AP8350115 spacer (rubber) AP8350199 screw AP8350127 gasket AP8350164 washer AP8350078 ring AP8350067 kick starter shaft AP8350140 spring AP8350165 washer AP8350070 ring AP8350145 spring AP8350135 gear AP8350122 gasket AP8350185 cover Kick-start Lev.cpl-clutch Cov.

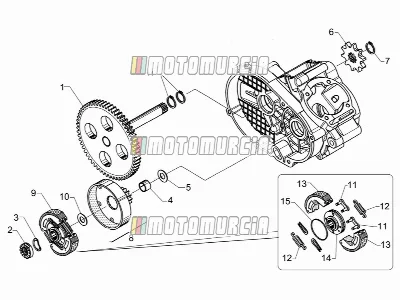

Transmission-clutch Aprilia Transmission-clutch AP8350088 chain ring AP8350105 nut AP8350143 spring AP8350083 bushing AP8350163 washer AP8350153 pinion AP8350072 ring AP8350134 clutch drum AP8350137 hub AP8350106 spacer AP8350086 washer AP8350139 spring AP8350100 brake shoe AP8350146 hub AP8350079 o-ring Transmission-clutch
Air Box Aprilia Air Box AP8350391 air box AP8350303 screw AP8350439 shock absorber cover AP8350392 air filter AP8350384 cover AP8350350 nut AP8350300 screw AP8350001 hose AP8350322 clamp Air Box

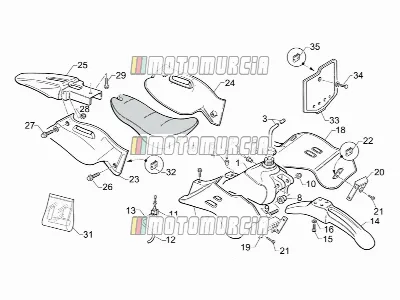

Body Aprilia Body AP8350373 tank AP8350374 cover AP8350273 breather pipe AP8350389 bush AP8350286 screw AP8350376 spacer AP8350282 screw AP8350388 spacer AP8350284 screw AP8350320 nut AP8350375 fuel tap AP8350274 fuel pipe AP8350347 clamp AP8350364 front mudguard AP8350298 screw AP8350309 washer AP8350366 rh air duct AP8350367 lh air duct AP8350420 net panel (r) AP8350419 net panel (l) AP8350299 screw AP8350348 nut AP8350368 rh side panel AP8350369 lh side panel AP8350424 mudguard rear AP8350303 screw AP8350319 nut AP8350302 screw AP8350372 saddle assy AP8350479 sticker kit AP8350365 number plate AP8350301 screw AP8350349 nut Body

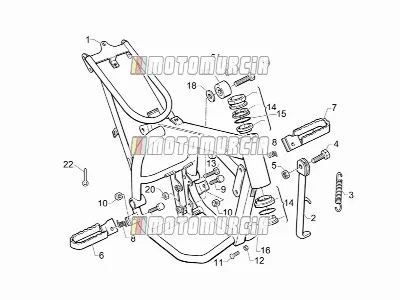

Frame Aprilia Frame AP8350443 frame AP8350394 main stand comp. AP8350385 spring AP8350294 screw AP8350313 nut AP8350486 footrest right AP8350487 footrest left AP8350055 spring AP8350054 screw AP8350312 nut AP8350295 screw AP8350400 nut AP8350397 ball ring set, complete AP8350276 o-ring AP8350277 ring AP8350447 chain tensioner roller AP8350310 washer AP8350288 screw AP8350321 nut AP8350353 spacer AP8350323 split pin Frame
Front Fork Aprilia Front Fork AP8350454 front fork AP8350222 rh hub AP8350223 lh hub AP8350218 fork upper plate AP8350217 stem base AP8350220 u-bolt AP8350226 gasket envelope Front Fork
Handlebar Cpl. Aprilia Handlebar Cpl. AP8350356 handlebar AP8350357 throttle AP8350416 grip AP8350358 brake lever AP8350211 brake lever AP8350359 rear brake lever AP8350212 rear brake lever AP8350360 brake cable front AP8350361 brake cable AP8350362 engine stop switch AP8350377 throttle cable AP8350393 guard Handlebar Cpl.

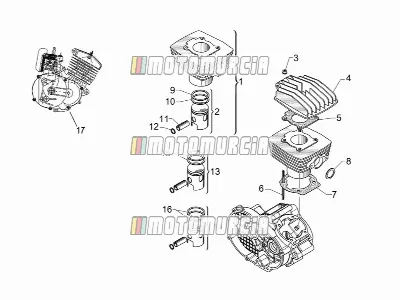

Head - Cylinder - Piston Aprilia Head - Cylinder - Piston AP8350209 cylinder kit AP8350150 piston AP8350103 nut AP8350186 cylinder head AP8350125 gasket AP8350156 stud bolt AP8350126 gasket AP8350131 gasket AP8350177 ring AP8350178 ring AP8350180 piston pin d AP8350069 ring AP8350151 piston AP8350152 piston AP8350172 piston ring set AP8350173 piston ring set AP8350489 engine (complete) Head - Cylinder - Piston
Swing Arm Aprilia Swing Arm AP8350481 swingarm AP8350381 bushing AP8350471 spacer AP8350296 screw AP8350315 nut AP8350449 shock absorber AP8350401 spacer AP8350289 screw AP8350290 screw AP8350386 chain guide plate AP8350293 screw AP8350316 nut AP8350363 chain guide AP8350281 screw AP8350314 nut Swing Arm

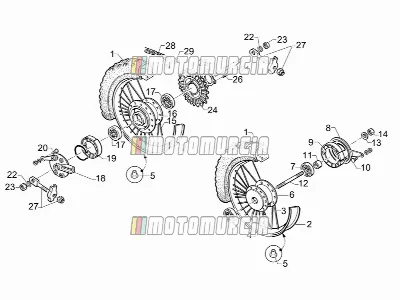

Wheels-brakes Aprilia Wheels-brakes AP8350261 tyre AP8350343 wheel AP8350337 spoke AP8350338 spoke AP8350329 nipple AP8350459 hub AP8350260 bearing AP8350446 shoe holder plate AP8350006 brake shoe AP8350003 spacer AP8350004 front wheel spindle front AP8350005 washer AP8350328 nut AP8350336 spoke AP8350480 rear hub AP8350407 cover AP8350408 brake shoe AP8350325 screw AP8350404 front wheel spindle front AP8350311 washer AP8350409 chain ring AP8350327 washer AP8350324 screw AP8350371 chain tensioner AP8350268 chain AP8350259 connecting link Wheels-brakes

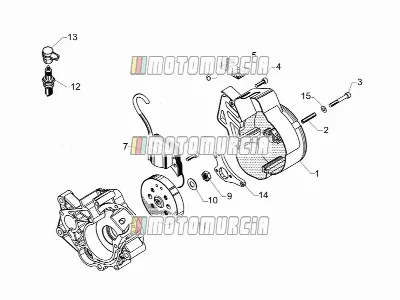

Ignition Unit Aprilia Ignition Unit AP8350092 flywheel side cover AP8350133 dowel AP8350196 screw AP8350195 screw AP8350118 spacer (rubber) AP8350119 spacer (rubber) AP8350107 coil AP8350194 screw AP8350104 nut AP8350166 washer AP8350190 flywheel AP8350097 spark plug AP8350160 sparkplug cap AP8350183 bracket AP8350171 washer Ignition Unit
