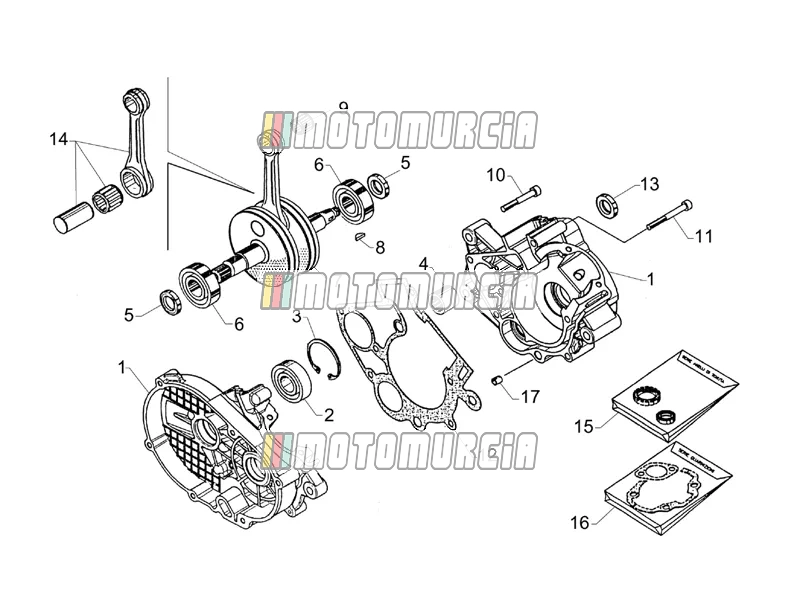

Exploded view — Crank-case-connect.rod Group

Products

1 Crankcase assy AP8350089 No longer available

• AP8350089 Crankcase assy
  No longer available

2 Bearing AP8350095 No longer available

• AP8350095 Bearing
  No longer available

3 Snap ring AP8350074 No longer available

• AP8350074 Snap ring
  No longer available

4 Sealed bearing AP8350080 No longer available

• AP8350080 Sealed bearing
  No longer available

5 Gasket AP8350076 No longer available

• AP8350076 Gasket Quantity needed: 2
  No longer available

6 Bearing AP8350094 No longer available

• AP8350094 Bearing Quantity needed: 2
  No longer available

7 Crankshaft AP8350066 No longer available

• AP8350066 Crankshaft
  No longer available

8 Flywheel key AP8350096 No longer available

• AP8350096 Flywheel key
  No longer available

9 Cage AP8350114 No longer available

• AP8350114 Cage
  No longer available

10 Screw AP8350201 No longer available

• AP8350201 Screw
  No longer available

11 Screw AP8350200 No longer available

• AP8350200 Screw Quantity needed: 7
  No longer available

12 Gasket AP8350128 No longer available

• AP8350128 Gasket
  No longer available

13 Gasket AP8350077 No longer available

• AP8350077 Gasket
  No longer available

14 Connecting rod AP8350081 No longer available

• AP8350081 Connecting rod
  No longer available

15 PI seal rings, set AP8350174 No longer available

• AP8350174 PI seal rings, set
  No longer available

16 Gaskets set AP8350175 No longer available

• AP8350175 Gaskets set
  No longer available

17 Pin AP8350181 No longer available

• AP8350181 Pin Quantity needed: 2
  No longer available
