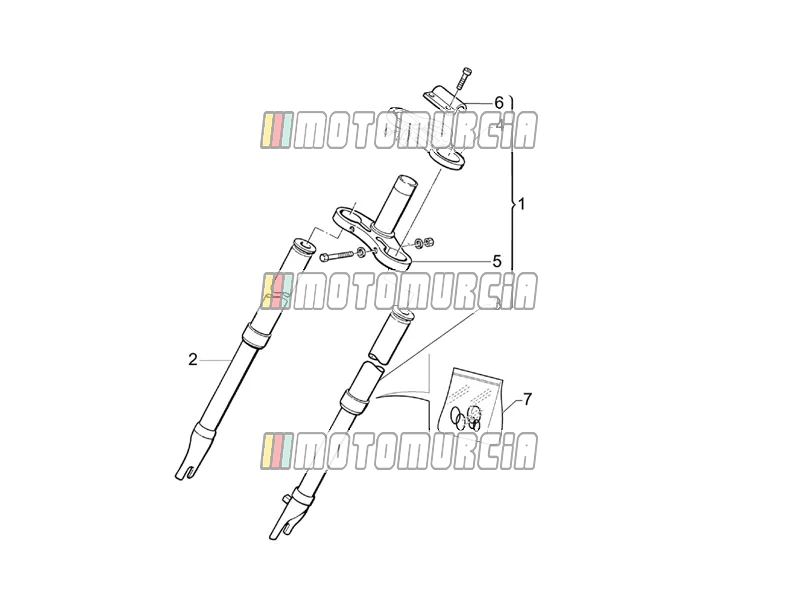

Exploded view — Front Fork

Products

1 Front fork AP8350454 No longer available

• AP8350454 Front fork
  No longer available

2 RH hub AP8350222 No longer available

• AP8350222 RH hub
  No longer available

3 LH hub AP8350223 No longer available

• AP8350223 LH hub
  No longer available

4 Fork upper plate AP8350218 No longer available

• AP8350218 Fork upper plate
  No longer available

5 Stem base AP8350217 No longer available

• AP8350217 Stem base
  No longer available

6 U-bolt AP8350220 No longer available

• AP8350220 U-bolt
  No longer available

7 Gasket envelope AP8350226 No longer available

• AP8350226 Gasket envelope
  No longer available
