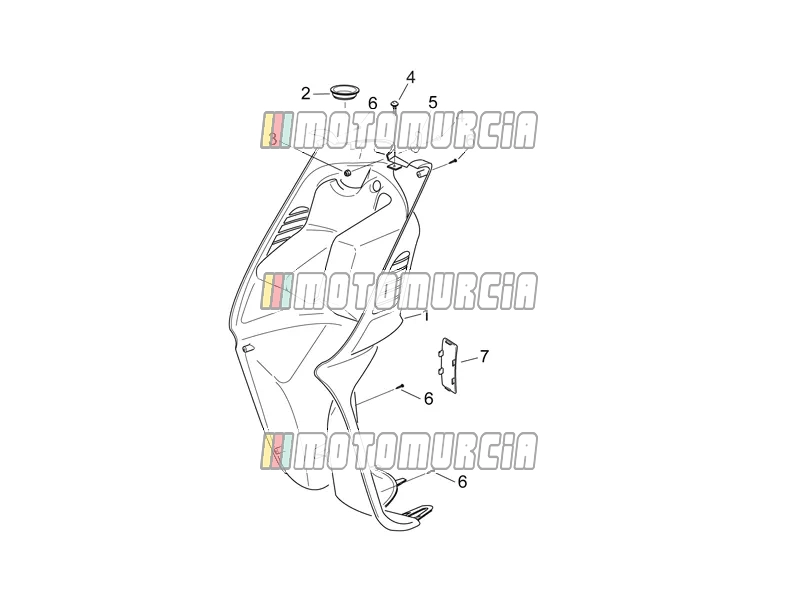

Exploded view — Central Body I - Int. Shield

Products

1 Front leg shield plate Backorder AP8248896

•

  Leg-shield inside, black Piaggio Group · AP8248896 Backorder

  € 73,13

  Add to cart
•

  Leg-shield inside, grey Piaggio Group · AP8239997 Backorder

  € 76,98

  Add to cart
• AP8239290 Internal shield, violet
  No longer available
• AP8248332 Internal shield, fuchsia
  No longer available
• AP8248353 Internal shield, blue
  No longer available

2 Plug, fuchsia AP8248333 No longer available

• AP8248333 Plug, fuchsia
  No longer available
•

  Lock Piaggio Group · AP8248897 Available

  € 6,75

  Add to cart
• AP8220519 Plug, purple
  No longer available
• AP8248354 Plug, blue
  No longer available

3 Nut Available AP8150451

•

  Standard nut Piaggio Group · AP8150451 Available

  € 1,88

  Add to cart

4 Screw Available AP8152298

•

  Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 2 Available

  € 3,80

  Add to cart

5 Bag holder hook AP8239306 No longer available

• AP8239306 Bag holder hook
  No longer available

6 Screw Available AP8150413

•

  Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 6 Available

  € 1,69

  Add to cart

7 Type appr.data cover, grey (grey) AP8248001 No longer available

• AP8248001 Type appr.data cover, grey (grey)
  No longer available
•

  Lid Piaggio Group · AP8248900 Backorder

  € 5,86

  Add to cart
• AP8248357 Type appr.data cover, blue (blue)
  No longer available
• AP8239293 Type appr.data cover, violet (violet)
  No longer available
• AP8248336 Type appr.data cover, fuchsia (fuchsia)
  No longer available
