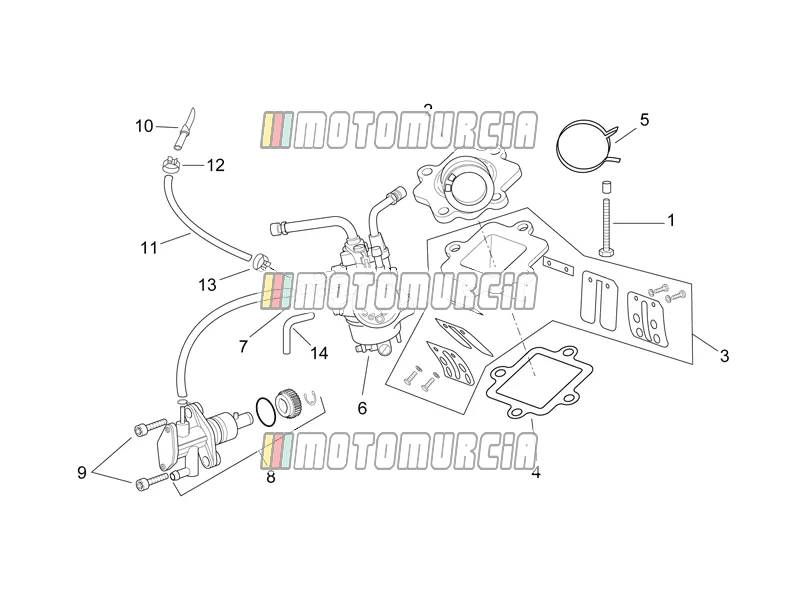

Exploded view — Supply - Oil Pump

Products

1 Screw AP8502564 No longer available

• AP8502564 Screw
  No longer available

2 Intake Manifold AP8206466 No longer available

• AP8206466 Intake Manifold
  No longer available
• AP8206565 Intake manifold D12
  No longer available

3 Reed valve AP8206557 No longer available

• AP8206557 Reed valve
  No longer available

4 Intake manifold Gasket AP8206486 No longer available

• AP8206486 Intake manifold Gasket
  No longer available

5 Clamp AP8206181 No longer available

• AP8206181 Clamp
  No longer available

6 Carburettor phbn 12-Gs AP8206995 No longer available

• AP8206995 Carburettor phbn 12-Gs
  No longer available
• AP8206817 Carburettor phbn 12-Gs
  No longer available
• AP8206812 Carburettor phbn 12-Gs
  No longer available
• AP8206810 Carburettor phbn 12-Gs
  No longer available
• AP8206811 Carburettor phbn 12-Gs
  No longer available
• AP8106917 Carburettor phbn 12-Gs
  No longer available
• AP8206885 Carburettor
  No longer available
• AP8176076 Carburettor phbn 12-Gs
  No longer available
• AP8206809 Carburettor phbn 12-Gs
  No longer available

7 Clamp AP8206711 No longer available

• AP8206711 Clamp
  No longer available

8 Oil pump AP8206119 No longer available

• AP8206119 Oil pump
  No longer available

9 Screw AP8508887 No longer available

• AP8508887 Screw Quantity needed: 2
  No longer available

10 Anti-condensate breather AP8220548 No longer available

• AP8220548 Anti-condensate breather
  No longer available

11 Fuel pipe 5,5x10 (5,5x10) Available 896544

•

  Petrol Hose 5,5x10 mm Piaggio Group · 896544 Available

  € 32,88

  Add to cart

12 Clamp Available AP8102378

•

  Clamp Ø 11,30 mm Piaggio Group · AP8102378 Available

  € 4,51

  Add to cart

13 Clamp Available AP8201225

•

  Hose clamp 8,5x5,5 mm Piaggio Group · AP8201225 Available

  € 2,12

  Add to cart

14 Pipe Available AP8220507

•

  Hose Piaggio Group · AP8220507 Available

  € 13,08

  Add to cart
