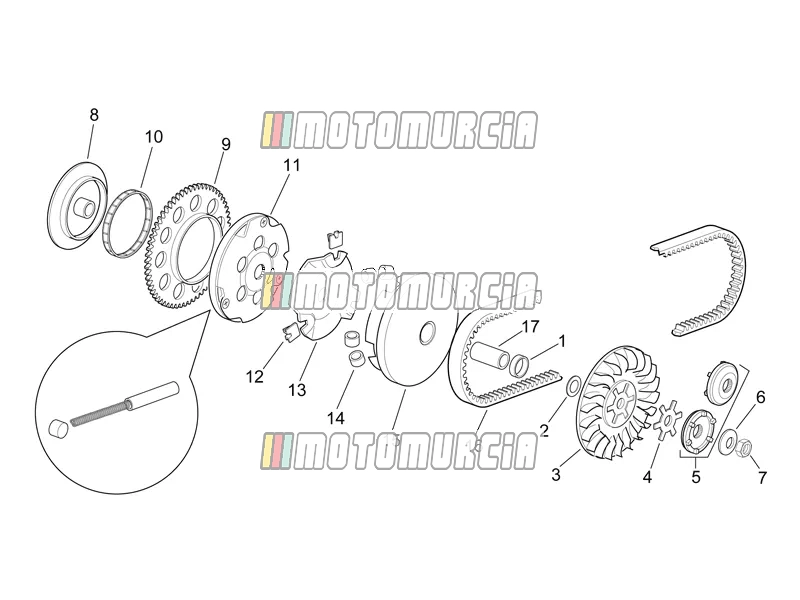

Exploded view — Variator

Products

1 Spacer D18x23x3,5 AP8222458 No longer available

• AP8222458 Spacer D18x23x3,5
  No longer available
• AP8206420 Spacer D18x23x6,5
  No longer available
• AP8221326 Spacer (18x23x5)
  No longer available

2 Blue steel washer D13,2x20 AP8222337 No longer available

• AP8222337 Blue steel washer D13,2x20
  No longer available

3 V-Belt Pulley AP8206116 No longer available

• AP8206116 V-Belt Pulley
  No longer available

4 Front pulley drive plate AP8206140 No longer available

• AP8206140 Front pulley drive plate
  No longer available

5 Teethed bush Available AP8206141

•

  TOOTHED START CLUTCH CUP Piaggio Group · AP8206141 Available

  € 25,00

  Add to cart

6 Washer AP8206204 No longer available

• AP8206204 Washer
  No longer available

7 Nut AP8206183 No longer available

• AP8206183 Nut
  No longer available

8 Spacer AP8206479 No longer available

• AP8206479 Spacer
  No longer available

9 Starter motor gear Z=71 AP8206144 No longer available

• AP8206144 Starter motor gear Z=71
  No longer available

10 Cage D57x61x10 AP8206210 No longer available

• AP8206210 Cage D57x61x10
  No longer available

11 Clutch, one way AP8206147 No longer available

• AP8206147 Clutch, one way
  No longer available

12 Variator slider AP8206698 No longer available

• AP8206698 Variator slider Quantity needed: 3
  No longer available

13 Ramp plate Available AP8206136

•

  Calotte Piaggio Group · AP8206136 Available

  € 22,19

  Add to cart

14 Pin roller D8,8 AP8206701 No longer available

• AP8206701 Pin roller D8,8 Quantity needed: 6
  No longer available
• AP8206852 Pin roller D5 Quantity needed: 6
  No longer available
•

  Variator roller 15x12 mm, 9,5 g, Content: 1 Stk Piaggio Group · AP8206430 · Quantity needed: 6 Backorder

  € 5,29

  Add to cart

15 Pulley assy., driving AP8222335 No longer available

• AP8222335 Pulley assy., driving
  No longer available

16 V-Belt AP8206818 No longer available

• AP8206818 V-Belt
  No longer available

17 Bush 13x18x38,2 AP8222336 No longer available

• AP8222336 Bush 13x18x38,2
  No longer available
