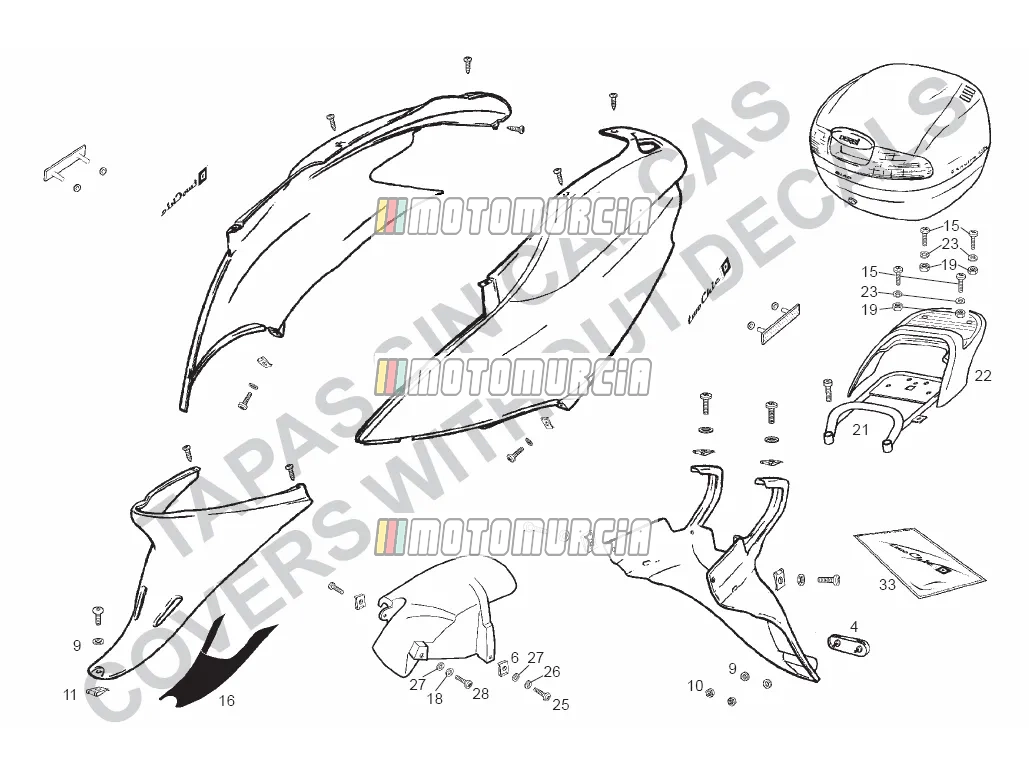

Exploded view — Frame

Products

1 LOWER SADDLE BASE 00G05917838 No longer available

• 00G05917838 LOWER SADDLE BASE
  No longer available
• 00G05917839 LOWER SADDLE BASE
  No longer available

2 LH SIDE COVER SUB/ASSY 00G068153275 No longer available

• 00G068153275 LH SIDE COVER SUB/ASSY
  No longer available
• 00G06817321 LH SIDE COVER SUB/ASSY
  No longer available

3 RIGHT-HAND SIDE COVER 00G01517231 No longer available

• 00G01517231 RIGHT-HAND SIDE COVER
  No longer available
• 00G01514238 RIGHT-HAND SIDE COVER
  No longer available

4 Reflector 00G04403752 No longer available

• 00G04403752 Reflector
  No longer available

5 REAR MUDGUARD EXTENSION Backorder 00G01507862

•

  Splash guard Piaggio Group · 00G01507862 Backorder

  € 7,87

  Add to cart
• 00G01508862 REAR MUDGUARD EXTENSION
  No longer available

6 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

7 Screw Available 00F05900041

•

  Screw M6x16 Piaggio Group · 00F05900041 Available

  € 2,69

  Add to cart

8 Screw Available 00H05900021

•

  Screw M6 Piaggio Group · 00H05900021 Available

  € 5,60

  Add to cart

9 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

10 Nut Backorder 00000023040

•

  Standard nut Piaggio Group · 00000023040 Backorder

  € 2,77

  Add to cart

11 Clip nuts (M5) Available 00G04401462

•

  Sheet nut M5 Piaggio Group · 00G04401462 Available

  € 1,48

  Add to cart

12 Screw 3,6x25 Available 00011032501

•

  Screw 3,6x25 mm Piaggio Group · 00011032501 Available

  € 2,69

  Add to cart

13 Screw Available 00011051801

•

  Screw 5,1x18 mm Piaggio Group · 00011051801 Available

  € 2,06

  Add to cart

14 Screw Available 00011051601

•

  Thread Screw 5x16 mm Piaggio Group · 00011051601 Available

  € 0,99

  Add to cart

15 Screw Available 00012151500

•

  Screw M5 Piaggio Group · 00012151500 Available

  € 2,47

  Add to cart

16 Sticker - Decal 00G04607501 No longer available

• 00G04607501 Sticker - Decal
  No longer available

17 Mudguard rear 00G00704141 No longer available

• 00G00704141 Mudguard rear
  No longer available

18 Washer Available 00402060001

•

  Shim Ø 6,00 mm Piaggio Group · 00402060001 Available

  € 1,48

  Add to cart

19 Nut Available 00000023050

•

  Standard nut Piaggio Group · 00000023050 Available

  € 2,69

  Add to cart

20 Screw Available 00000004830

•

  Screw M8 Piaggio Group · 00000004830 Available

  € 1,38

  Add to cart

21 Lugg.rack support 00G01409191A No longer available

• 00G01409191A Lugg.rack support
  No longer available

22 ATLANTIS UPPER GREY LUGGAGE RACK COVER 00G01404242 No longer available

• 00G01404242 ATLANTIS UPPER GREY LUGGAGE RACK COVER
  No longer available

23 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart

24 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 Available

  € 0,99

  Add to cart

25 Screw Backorder 00092063514

•

  Screw Piaggio Group · 00092063514 Backorder

  € 4,27

  Add to cart

26 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

27 Flat washer 00432060002 No longer available

• 00432060002 Flat washer
  No longer available

28 Screw 00092062014 No longer available

• 00092062014 Screw
  No longer available

29 DECAL 00G01508402 No longer available

• 00G01508402 DECAL
  No longer available
• 00G01508401 DECAL
  No longer available

30 DECAL 00G04907542 No longer available

• 00G04907542 DECAL
  No longer available
• 00G04907541 DECAL
  No longer available

31 Reflector 00G04400752 No longer available

• 00G04400752 Reflector
  No longer available

32 GRAY TOP CASE 00G04902442 No longer available

• 00G04902442 GRAY TOP CASE
  No longer available
• 00G04902441 ATLANTIS WHITE LIRIO TOP CASE 29 L
  No longer available

33 Sticker - Decal 00G05149652 No longer available

• 00G05149652 Sticker - Decal
  No longer available
• 00G05149651 Sticker - Decal
  No longer available
