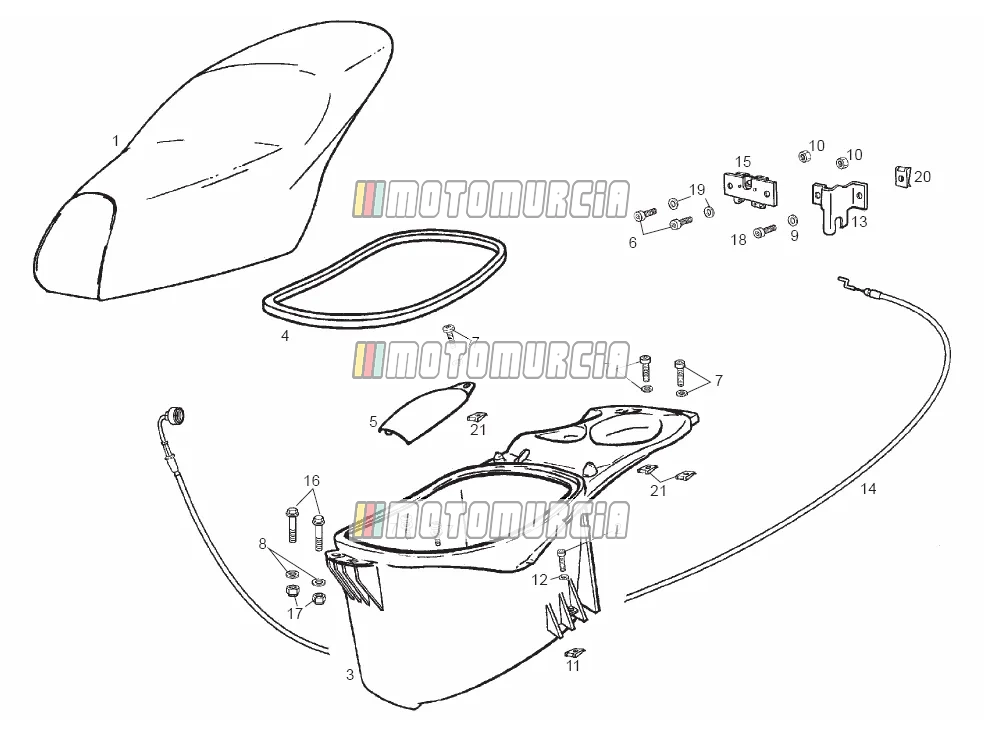

Exploded view — Saddle - Helmet Compartment
‹ Back to model
Derbi Atlantis 50 2T Two Chic 2005
Products
1 SADDLE ASSY
-
00G00623019 SADDLE ASSYNo longer available
2 Screw Available
-
Allen screw M5 Piaggio Group · 00000004515 Available · Shipped in 3–5 working days€ 1,44
3 Helmet holder assembly
-
00G06306721 Helmet holder assemblyNo longer available
4 HELMET BOX RUBBER SEAL PROTECT Backorder
-
Rubber Seal Piaggio Group · 00G06301551 Backorder · Shipped in 2–4 weeks€ 11,56
5 Cover
-
00G01800221 CoverNo longer available
6 Screw Available
-
- Year of manufacture: 2011
Allen screw M5 Piaggio Group · 00002052051 Available · Shipped in 3–5 working days€ 5,60
7 Screw Available
-
- From chassis 9H433718
- Year of manufacture: 2011
- Country: Austria
- Country: Denmark
- Country: Spain
Screw M6x16 Piaggio Group · 00F05900041 Available · Shipped in 3–5 working days€ 2,69
8 Washer Available
-
Washer Ø 6,00 mm Piaggio Group · 00000031060 Available · Shipped in 3–5 working days€ 0,99
9 Washer Available
-
- Old fastening
- Year of manufacture: 2009
- Country: Switzerland
Shim Piaggio Group · 00H03800722 Available · Shipped in 3–5 working days€ 1,75
10 Nut Available
-
- Year of manufacture: 2011
- Country: Switzerland
Standard nut Piaggio Group · 00000023050 Available · Shipped in 3–5 working days€ 2,69
11 Clip nuts (M5) Available
-
- Version with ARAS
- Year of manufacture: 2011
Sheet nut M5 Piaggio Group · 00G04401462 Available · Shipped in 3–5 working days€ 1,48
12 Washer Available
-
- Year of manufacture: 2011
Washer Piaggio Group · 847181 Available · Shipped in 3–5 working days€ 21,21
13 Retainer
-
00G06801051 RetainerNo longer available
14 SADDLE LOCKING CABLE ASSY Backorder
-
Seat release cable Piaggio Group · 00G00602181 Backorder · Shipped in 2–4 weeks€ 45,65
15 PLATE, SADDLE LOCK FITTING Available
-
Lock Mounting Piaggio Group · 00G06800501 Available · Shipped in 3–5 working days€ 34,21
16 Screw Available
-
Screw Piaggio Group · 00G03600991 Available · Shipped in 3–5 working days€ 1,44
17 Nut Available
-
- Switzerland version E3
- Year of manufacture: 2009
- Year of manufacture: 2011
- Country: Switzerland
Standard nut M6 Piaggio Group · 00000023060 Available · Shipped in 3–5 working days€ 0,99
18 Screw Available
-
Screw Piaggio Group · 847227 Available · Shipped in 3–5 working days€ 6,70
19 Washer Available
-
- Year of manufacture: 2011
Shim Ø 6,00 mm Piaggio Group · 00402060001 Available · Shipped in 3–5 working days€ 1,48
20 Clip nuts (M5) Available
-
- Version with ARAS
- Year of manufacture: 2011
Sheet nut M5 Piaggio Group · 00G04401462 Available · Shipped in 3–5 working days€ 1,48
21 Clip nuts (M6) Available
-
- Year of manufacture: 2012
- Year of manufacture: 2013
Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days€ 2,04
