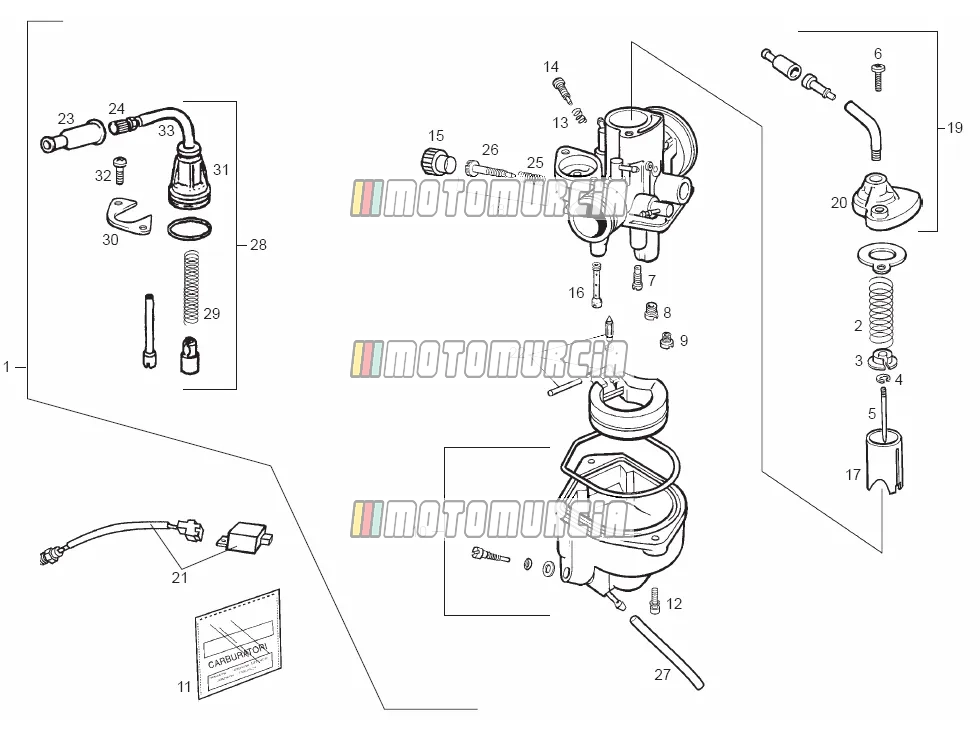

Exploded view — Carburettor

Products

01 CARBURETOR GPR 00 WVTA 00H03240011 No longer available

• 00H03240011 CARBURETOR GPR 00 WVTA
  No longer available
• 00H03224011 Carburettor
  No longer available

02 THROTTLE VALVE RETURN SPRING 00G03202071 No longer available

• 00G03202071 THROTTLE VALVE RETURN SPRING
  No longer available
• 00H03201071 THROTTLE VALVE RETURN SPRING
  No longer available

03 Conical pin clip Available 288873

•

  Tapered Needle Clip Dell Orto Piaggio Group · 288873 Available

  € 2,59

  Add to cart

04 Seeger Available 288872

•

  Tapered Needle Clip Dell Orto Piaggio Group · 288872 Available

  € 1,59

  Add to cart

05 NEEDLE 00H03204431 No longer available

• 00H03204431 NEEDLE
  No longer available

06 Screw Available 00G03200061

•

  Screw Piaggio Group · 00G03200061 Available

  € 1,50

  Add to cart

07 Needle valve Backorder CM106217

•

  Jet Piaggio Group · CM106217 Backorder

  € 10,88

  Add to cart
• 00H03205421 NEEDLE,JET
  No longer available

08 MAIN JET MAX.69 GPR50R FR. 00H03211031 No longer available

• 00H03211031 MAIN JET MAX.69 GPR50R FR.
  No longer available
• 00H03210031 MAIN JET 98
  No longer available

09 JET MIN.34 00G04103181 No longer available

• 00G04103181 JET MIN.34
  No longer available
• CM102107 Idle jet 36
  No longer available

10 Fuel chamber 847519 No longer available

• 847519 Fuel chamber
  No longer available
• 00H03205201 FLOAT BOWL.ASSY
  No longer available

11 Gasket envelope (Dellorto PHVA) Available 498409

•

  Carburettor Gasket Kit Dell Orto Piaggio Group · 498409 Available

  € 15,11

  Add to cart

12 Screw Available 00G03201091

•

  Screw Piaggio Group · 00G03201091 Available

  € 1,86

  Add to cart

13 Spring Backorder 00G03200721

•

  Spring Piaggio Group · 00G03200721 Backorder

  € 1,37

  Add to cart

14 IDLE ADJUSTER SCREW 00H03200731 No longer available

• 00H03200731 IDLE ADJUSTER SCREW
  No longer available

15 THROOTLE VALVE ADJUSTER SCREW Backorder 00G04100741

•

  Knurled Screw Piaggio Group · 00G04100741 Backorder

  € 6,49

  Add to cart

16 IDLE CHOKE 00H03201481 No longer available

• 00H03201481 IDLE CHOKE
  No longer available
• 00H03202481 IDLE CHOKE
  No longer available

17 SLIDE 00H03203211 No longer available

• 00H03203211 SLIDE
  No longer available

18 KIT THROTTLE VALVE ADJUSTER 00H04101131 No longer available

• 00H04101131 KIT THROTTLE VALVE ADJUSTER
  No longer available

19 COVER, CARBURETOR, TOP KIT 00H03205231 No longer available

• 00H03205231 COVER, CARBURETOR, TOP KIT
  No longer available

20 CARBURETOR UPPER COVER 00G03201231 No longer available

• 00G03201231 CARBURETOR UPPER COVER
  No longer available

21 Heater kit Backorder 00H06001151

•

  Carburettor Heater Piaggio Group · 00H06001151 Backorder

  € 363,52

  Add to cart

22 Float Available 482916

•

  Float Dell Orto Piaggio Group · 482916 Available

  € 19,48

  Add to cart

23 THROTTLE CABLE RUBBER CAP 00G03201561 No longer available

• 00G03201561 THROTTLE CABLE RUBBER CAP
  No longer available

24 THROTTLE CABLE ADJUSTER SCREW 00F03200021 No longer available

• 00F03200021 THROTTLE CABLE ADJUSTER SCREW
  No longer available

25 Spring Available 152608

•

  Spring Piaggio Group · 152608 Available

  € 1,40

  Add to cart

26 Gas valve adj.screw Available 828074

•

  Adjusting Screw Piaggio Group · 828074 Available

  € 11,82

  Add to cart

27 TUBE 00H03702121 No longer available

• 00H03702121 TUBE
  No longer available

28 ROUNDHEAD PRHILLIPS SCREW 00G03202711 No longer available

• 00G03202711 ROUNDHEAD PRHILLIPS SCREW
  No longer available

29 IDLE ADJUSTER SPRING 00G03202721 No longer available

• 00G03202721 IDLE ADJUSTER SPRING
  No longer available

30 Plate Available 00G03200551

•

  Locking Ring for carburettor cable Piaggio Group · 00G03200551 Available

  € 4,67

  Add to cart

31 BODY "STARTER" 00G03200391 No longer available

• 00G03200391 BODY "STARTER"
  No longer available

32 Screw Available 00G03200541

•

  Screw Piaggio Group · 00G03200541 Available

  € 2,50

  Add to cart

33 THROTTLE CABLE SLEEVE 00G03200761 No longer available

• 00G03200761 THROTTLE CABLE SLEEVE
  No longer available
