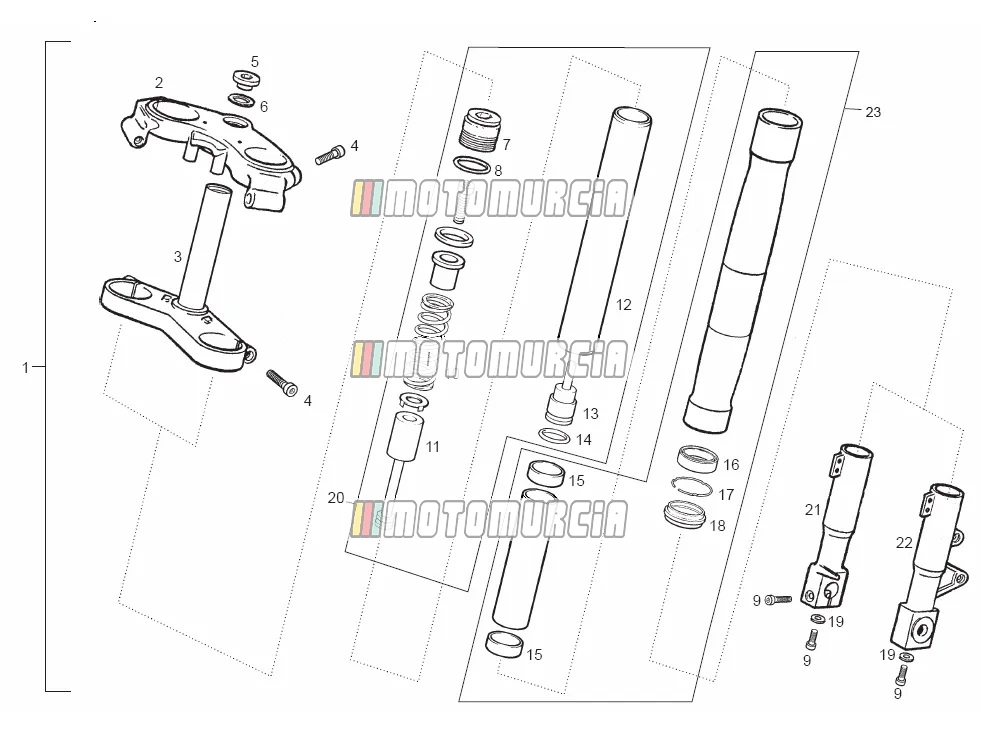

Exploded view — Front Fork

Products

01 CTO.HORQ.DIRECT.GPR RACING 00H00229002 No longer available

• 00H00229002 CTO.HORQ.DIRECT.GPR RACING
  No longer available

02 Washer Available 00H00206101

•

  Washer Piaggio Group · 00H00206101 Available

  € 2,88

  Add to cart

03 R-CTO.TIJA-PLAT.INF.GPR RAC 00H00214011 No longer available

• 00H00214011 R-CTO.TIJA-PLAT.INF.GPR RAC
  No longer available

04 Screw Available 00000004835

•

  Allen screw M8x35 Piaggio Group · 00000004835 Available

  € 1,44

  Add to cart

05 Plug Available 861627

•

  Lock Piaggio Group · 861627 Available

  € 65,84

  Add to cart

07 R-TAPON SUP.PNA.HORQ.GPR RAC 00H00206271 No longer available

• 00H00206271 R-TAPON SUP.PNA.HORQ.GPR RAC
  No longer available

08 R-ANILLO TOR.TAP.TUB.PNA.GPR R 00H00203501 No longer available

• 00H00203501 R-ANILLO TOR.TAP.TUB.PNA.GPR R
  No longer available

09 Screw (M8x25) Available AP8150170

•

  Screw M8x25 Piaggio Group · AP8150170 Available

  € 5,13

  Add to cart

10 R-MUELLE HORQ.GPR RACING 00H00212171 No longer available

• 00H00212171 R-MUELLE HORQ.GPR RACING
  No longer available

11 R-SCTO.TUBO VALV.HORQ.GPR RAC 00H00205921 No longer available

• 00H00205921 R-SCTO.TUBO VALV.HORQ.GPR RAC
  No longer available

12 R-TUBO PRINCIPAL GPR RAC. 00H00206191 No longer available

• 00H00206191 R-TUBO PRINCIPAL GPR RAC.
  No longer available

13 R-TAPON INF.TUBO PRINC.GPR RAC 00H00201571 No longer available

• 00H00201571 R-TAPON INF.TUBO PRINC.GPR RAC
  No longer available

14 Washer 00H00202691 No longer available

• 00H00202691 Washer
  No longer available

15 BUSHING 00H00205151 No longer available

• 00H00205151 BUSHING
  No longer available

16 LOWER FORK TUBE SEAL Available 00G00204471

•

  Gasket Piaggio Group · 00G00204471 Available

  € 16,90

  Add to cart

17 RING 00G00201601 No longer available

• 00G00201601 RING
  No longer available

18 Fork dust seal (M) Available 600127

•

  Dust guard Piaggio Group · 600127 Available

  € 25,93

  Add to cart

19 ARAND.ESTRELL.INT.D10-DIN6797J 00000034100 No longer available

• 00000034100 ARAND.ESTRELL.INT.D10-DIN6797J
  No longer available

20 R-CTO.TUBO HIDRAUL.GPR RAC 00H00204531 No longer available

• 00H00204531 R-CTO.TUBO HIDRAUL.GPR RAC
  No longer available

21 R-PUNTERA DR.HORQ.GPR RAC 00H02006831 No longer available

• 00H02006831 R-PUNTERA DR.HORQ.GPR RAC
  No longer available
• 00H02006832 R-PUNTERA DR.HORQ.GPR RAC
  No longer available

22 R-PUNTERA IZ.HORQ.GPR RAC 00H02007822 No longer available

• 00H02007822 R-PUNTERA IZ.HORQ.GPR RAC
  No longer available
• 00H02007821 R-PUNTERA IZ.HORQ.GPR RAC
  No longer available

23 R-PIERNA HORQ. GPR RACING 00H00212122 No longer available

• 00H00212122 R-PIERNA HORQ. GPR RACING
  No longer available
