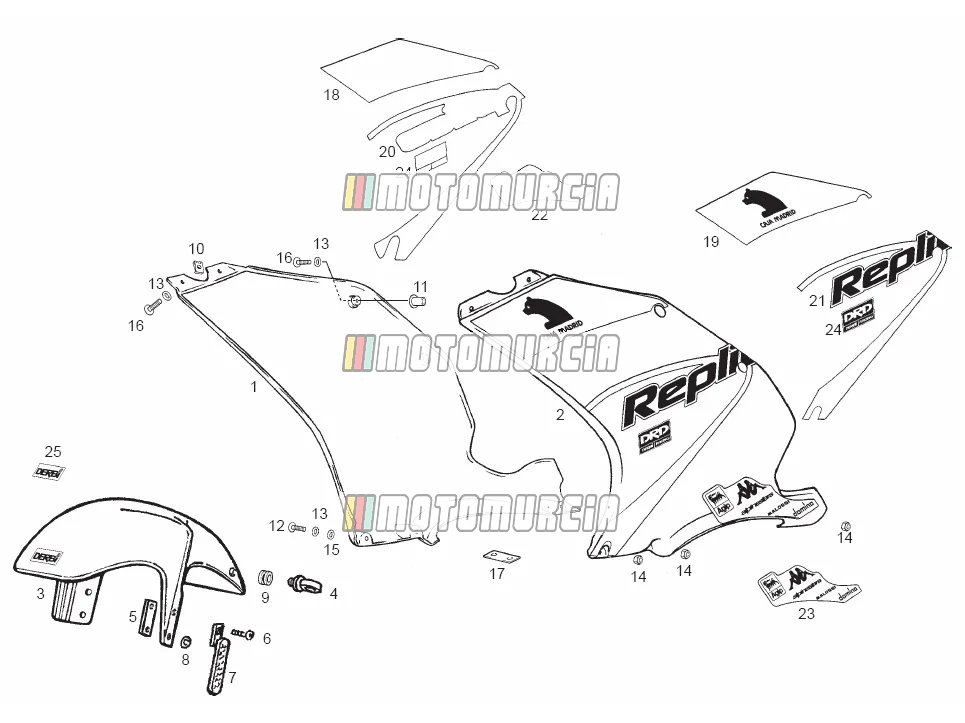

Exploded view — Front Mudguard

Products

01 SCTO.CAREN.LAT.DR.RACIN.03 00H015142315 No longer available

• 00H015142315 SCTO.CAREN.LAT.DR.RACIN.03
  No longer available

02 CTO.CAREN.LAT.IZQ.RACIN.ROJ.03 00H04913641 No longer available

• 00H04913641 CTO.CAREN.LAT.IZQ.RACIN.ROJ.03
  No longer available

03 CTO.GUARDAB.DEL.RACING 03 00H00715431C5 No longer available

• 00H00715431C5 CTO.GUARDAB.DEL.RACING 03
  No longer available

04 Guard Available 00H02201591

•

  Protection piece Piaggio Group · 00H02201591 Available

  € 2,49

  Add to cart

05 FRONT MUDGUARD SECURING PLATE 00H05700441 No longer available

• 00H05700441 FRONT MUDGUARD SECURING PLATE
  No longer available

06 Screw Available 00008062000

•

  Screw Piaggio Group · 00008062000 Available

  € 2,54

  Add to cart

07 Reflector Available 00H01802081

•

  Reflector Piaggio Group · 00H01802081 Available

  € 13,98

  Add to cart

08 Washer Available 00000031060

•

  Washer Ø 6,00 mm Piaggio Group · 00000031060 Available

  € 0,99

  Add to cart

09 Damper Available 00D01500021

•

  Rubber Piaggio Group · 00D01500021 Available

  € 10,61

  Add to cart

10 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

11 FAIRING SECURING SILENTBLOC NU 00H04901351 No longer available

• 00H04901351 FAIRING SECURING SILENTBLOC NU
  No longer available

12 Screw (6x14) Available 00H06300861

•

  Screw M6x14 Piaggio Group · 00H06300861 Available

  € 1,44

  Add to cart

13 8 - Front dust cover ring Available AP8120622

•

  Washer Piaggio Group · AP8120622 Available

  € 1,59

  Add to cart

14 Nut Available 00000023060

•

  Standard nut M6 Piaggio Group · 00000023060 Available

  € 0,99

  Add to cart

15 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

16 FAIRING SECURING SCREW 6X18 GP Available 00H06301861

•

  Screw Piaggio Group · 00H06301861 Available

  € 1,19

  Add to cart

17 LOWER FAIRING JOINT BRACKET GP 00H01502261 No longer available

• 00H01502261 LOWER FAIRING JOINT BRACKET GP
  No longer available
• 00H01503261 CARTELA INF.UNION CAREN GPR W.
  No longer available

18 CALCA SUPERIOR CAR.LAT.DR.RAC 00H01510401 No longer available

• 00H01510401 CALCA SUPERIOR CAR.LAT.DR.RAC
  No longer available

19 CALCA SUPERIOR CAR.LAT.IZ.RAC 00H01807961 No longer available

• 00H01807961 CALCA SUPERIOR CAR.LAT.IZ.RAC
  No longer available

20 CALCA CENTRAL CAR.LAT.DR RJ/NG 00H02211321 No longer available

• 00H02211321 CALCA CENTRAL CAR.LAT.DR RJ/NG
  No longer available

21 CALCA CENTRAL CAR.LAT.IZ.RJ/NG 00H04616221 No longer available

• 00H04616221 CALCA CENTRAL CAR.LAT.IZ.RJ/NG
  No longer available

22 CALCA SPONSORS DR. RACING 00H04617221 No longer available

• 00H04617221 CALCA SPONSORS DR. RACING
  No longer available

23 CALCA SPONSORS IZ.RACING 00H04610231 No longer available

• 00H04610231 CALCA SPONSORS IZ.RACING
  No longer available

24 CALCA DERBI DRD RACING 00H01515781 No longer available

• 00H01515781 CALCA DERBI DRD RACING
  No longer available

25 CALCA DERBI TAPA LAT.ATL.CITY 00G00500151 No longer available

• 00G00500151 CALCA DERBI TAPA LAT.ATL.CITY
  No longer available
