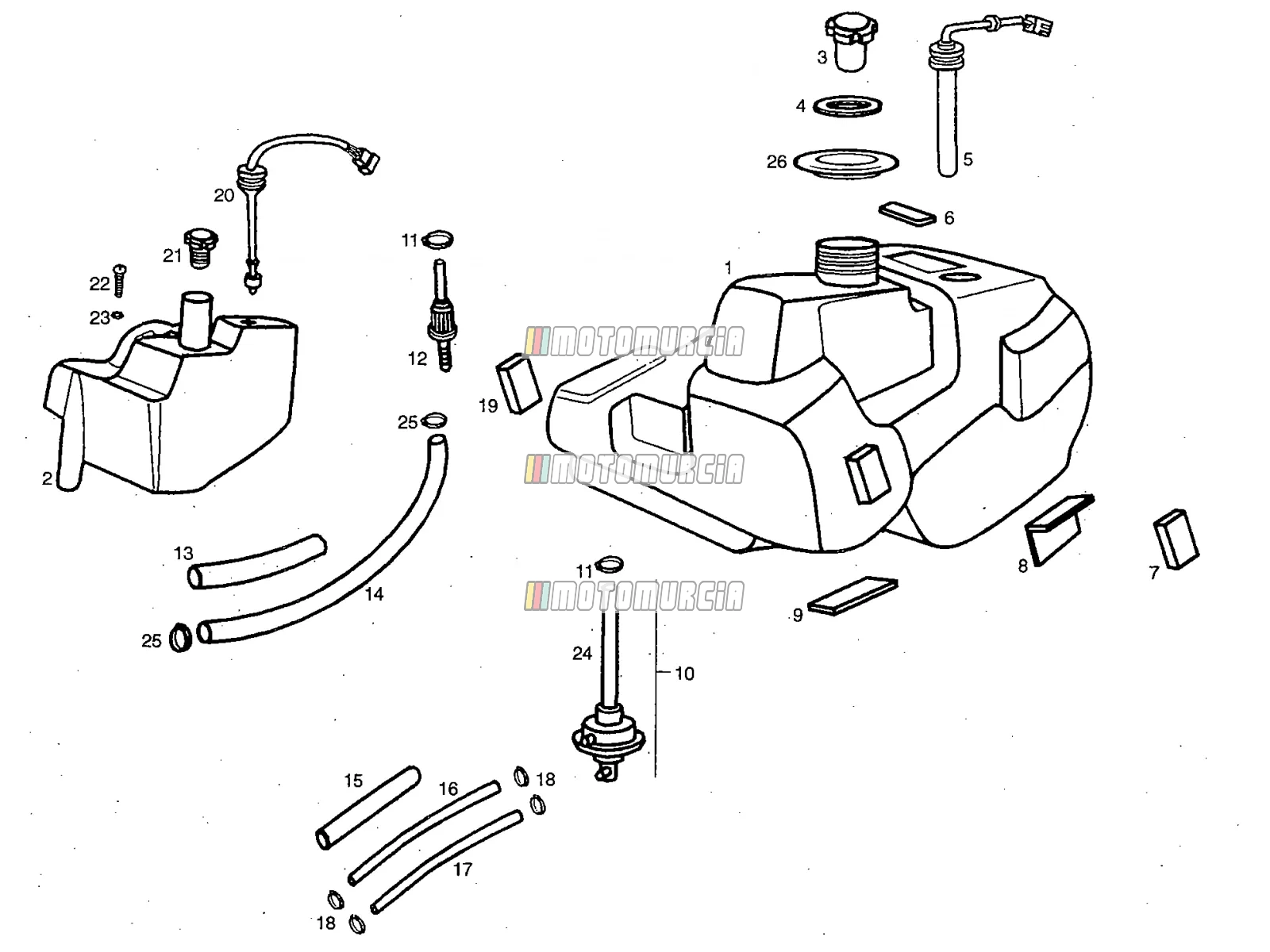

Exploded view — Tank

Products

01 Fuel tank 00G00413011 No longer available

• 00G00413011 Fuel tank
  No longer available
• 00G00409011 Fuel tank
  No longer available
• 00G00406011 Fuel tank
  No longer available

02 OIL RESERVOIR HUNTER 00G03701081 No longer available

• 00G03701081 OIL RESERVOIR HUNTER
  No longer available
• 00G03702081 OIL RESERVOIR
  No longer available

03 Oil filler cap Available 00G00401131

•

  Tank Cap Piaggio Group · 00G00401131 Available

  € 21,84

  Add to cart

04 Washer Available 00F00400771

•

  Gasket Piaggio Group · 00F00400771 Available

  € 4,67

  Add to cart

05 FUEL LEVEL FLOAT ASSY 00G04306181 No longer available

• 00G04306181 FUEL LEVEL FLOAT ASSY
  No longer available
•

  Petrol Guage Piaggio Group · 00G04303181 Backorder

  € 84,59

  Add to cart

06 UPPER TANK STOP 00G00400831 No longer available

• 00G00400831 UPPER TANK STOP
  No longer available

07 FUEL TANK SIDE STOP 00G06301771 No longer available

• 00G06301771 FUEL TANK SIDE STOP
  No longer available

08 LOWER TANK STOP 00G06200081 No longer available

• 00G06200081 LOWER TANK STOP
  No longer available

09 LEFT AND RIGHT LOWER TANK STOP 00G00401581 No longer available

• 00G00401581 LEFT AND RIGHT LOWER TANK STOP
  No longer available

10 Fuel tap Available 674594

•

  Petrol Tap Piaggio Group · 674594 Available

  € 20,74

  Add to cart

11 Clamp Available 00G00400501

•

  Hose Clamp Piaggio Group · 00G00400501 Available

  € 2,18

  Add to cart

12 Oil filter Available 00G03700411

•

  Oil Filter Piaggio Group · 00G03700411 Available

  € 14,07

  Add to cart

13 OIL TUBE PROTECTOR HOSE 00G03700651 No longer available

• 00G03700651 OIL TUBE PROTECTOR HOSE
  No longer available

14 PUMP-CONNECTOR OIL TUBE 00G03702221 No longer available

• 00G03702221 PUMP-CONNECTOR OIL TUBE
  No longer available

15 OIL PIPE COUPLING CONNECTOR 00H03701351 No longer available

• 00H03701351 OIL PIPE COUPLING CONNECTOR
  No longer available

16 OIL RESERVOIR OUTLET PIPE 00F03740111 No longer available

• 00F03740111 OIL RESERVOIR OUTLET PIPE
  No longer available

17 FUEL COCK VACUUM TUBE 00G06202061 No longer available

• 00G06202061 FUEL COCK VACUUM TUBE
  No longer available

18 Clamp Backorder 00H00400501

•

  Clamp 7,8-8,3 mm Piaggio Group · 00H00400501 Backorder

  € 0,99

  Add to cart

19 FUEL TANK SIDE STOP 00G06300771 No longer available

• 00G06300771 FUEL TANK SIDE STOP
  No longer available

20 OIL LEVEL INDICATOR ASSY 00G03708051 No longer available

• 00G03708051 OIL LEVEL INDICATOR ASSY
  No longer available
• 00G03702051 OIL LEVEL INDICATOR ASSY
  No longer available

21 Oil filler cap Available 00F03710241

•

  Oil Tank Cap Piaggio Group · 00F03710241 Available

  € 15,75

  Add to cart

22 ROUNDHEAD PHILIPS SCREW, 5M80X 00000012510 No longer available

• 00000012510 ROUNDHEAD PHILIPS SCREW, 5M80X
  No longer available

23 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

24 FUEL TANK/FUEL COCK TUBE Available 00H00400371

•

  Petrol Hose Piaggio Group · 00H00400371 Available

  € 8,12

  Add to cart

25 Clamp Available 00D03700131

•

  Hose Clamp Piaggio Group · 00D03700131 Available

  € 1,37

  Add to cart

26 Gasket Available 00G06200051

•

  Gasket Piaggio Group · 00G06200051 Available

  € 2,46

  Add to cart
