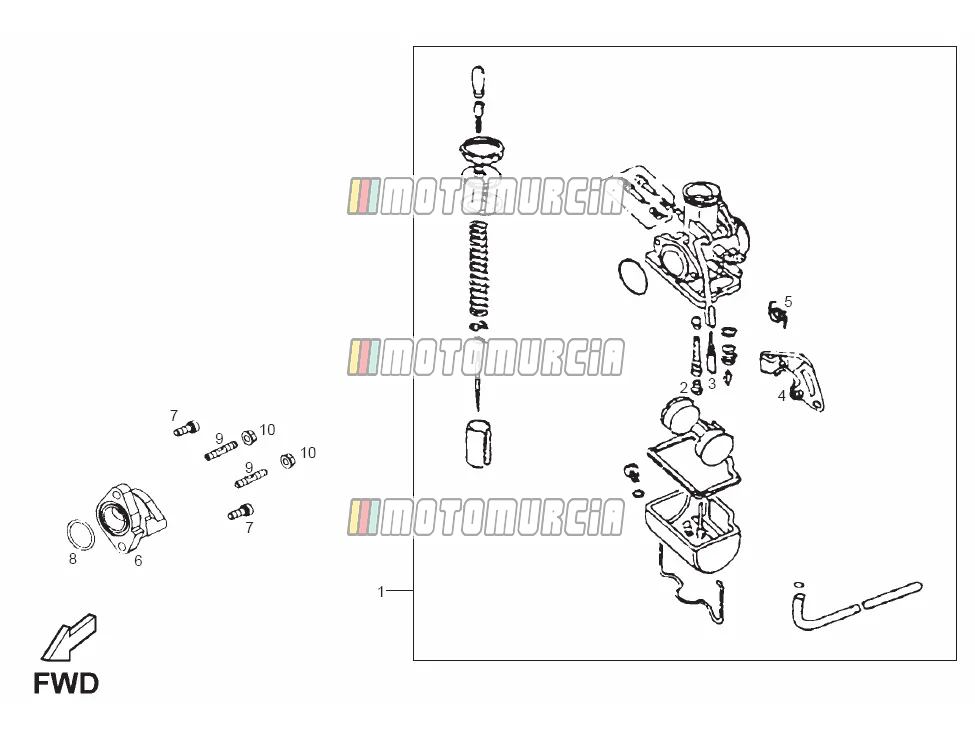

Exploded view — Carburettor

Products

1 CARBURETOR ASS’Y 00Q25001025 No longer available

• 00Q25001025 CARBURETOR ASS’Y
  No longer available

2 Main jet 00Q25001026 No longer available

• 00Q25001026 Main jet
  No longer available

3 JET, SLOW 00Q25001027 No longer available

• 00Q25001027 JET, SLOW
  No longer available

4 HOLDER, CHOKE CABLE 00Q25001028 No longer available

• 00Q25001028 HOLDER, CHOKE CABLE
  No longer available

5 Return spring 00Q25001029 No longer available

• 00Q25001029 Return spring
  No longer available

6 INSULATOR, CARB COMP 00Q20001029 No longer available

• 00Q20001029 INSULATOR, CARB COMP
  No longer available

7 BOLT,FLANGE 6*20 00Q25001498 No longer available

• 00Q25001498 BOLT,FLANGE 6*20
  No longer available

8 O-Ring 00Q20001148 No longer available

• 00Q20001148 O-Ring
  No longer available

9 Stud bolt 00Q20001166 No longer available

• 00Q20001166 Stud bolt
  No longer available

10 Nut 00Q25001455 No longer available

• 00Q25001455 Nut
  No longer available
