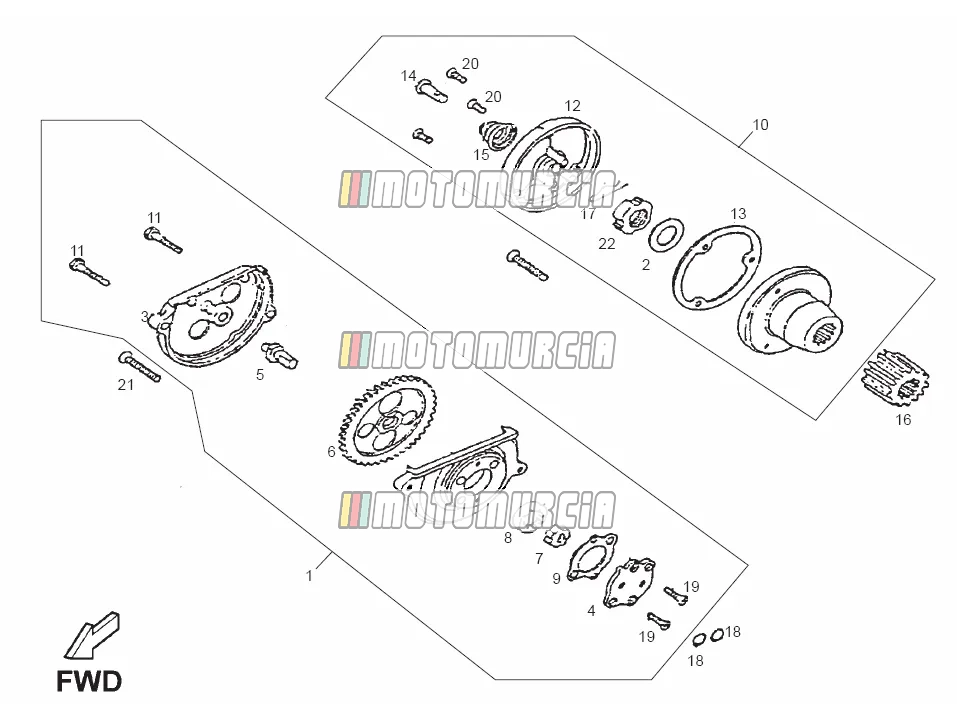

Exploded view — Oil Pump

Products

1 PUMP ASS'Y, OIL 00Q20001012 No longer available

• 00Q20001012 PUMP ASS'Y, OIL
  No longer available

2 WASHER, CONICAL SPRING 16.4*26 00Q20001194 No longer available

• 00Q20001194 WASHER, CONICAL SPRING 16.4*26
  No longer available

3 COVER, OIL PUMP GEAR 00Q20001014 No longer available

• 00Q20001014 COVER, OIL PUMP GEAR
  No longer available

4 PLATE, OIL PUMP 00Q20001015 No longer available

• 00Q20001015 PLATE, OIL PUMP
  No longer available

5 SHAFT, OIL PUMP 00Q20001016 No longer available

• 00Q20001016 SHAFT, OIL PUMP
  No longer available

6 GEAR, OIL PUMP 00Q20001017 No longer available

• 00Q20001017 GEAR, OIL PUMP
  No longer available

7 ROTOR, OIL PUMP INNER 00Q20001019 No longer available

• 00Q20001019 ROTOR, OIL PUMP INNER
  No longer available

8 ROTOR, OIL PUMP OUTER 00Q20001021 No longer available

• 00Q20001021 ROTOR, OIL PUMP OUTER
  No longer available

9 Gasket - Oil pump 00Q20001022 No longer available

• 00Q20001022 Gasket - Oil pump
  No longer available

10 OIL FILTER ROTOR ASS'Y 00Q20001023 No longer available

• 00Q20001023 OIL FILTER ROTOR ASS'Y
  No longer available

11 BOLT, HEXAGON 5*20 00Q25001465 No longer available

• 00Q25001465 BOLT, HEXAGON 5*20
  No longer available

12 CAP, OIL FILTER ROTOR 00Q20001025 No longer available

• 00Q20001025 CAP, OIL FILTER ROTOR
  No longer available

13 WASHER, OIL FILTER ROTOR 00Q20001026 No longer available

• 00Q20001026 WASHER, OIL FILTER ROTOR
  No longer available

14 THROUGH OIL 00Q20001027 No longer available

• 00Q20001027 THROUGH OIL
  No longer available

15 SPRING, OIL THROUGH 00Q20001028 No longer available

• 00Q20001028 SPRING, OIL THROUGH
  No longer available

16 GEAR, PRIMARY DRIVE (18T) 00Q20001077 No longer available

• 00Q20001077 GEAR, PRIMARY DRIVE (18T)
  No longer available

17 COTTER PIN 00Q25001335 No longer available

• 00Q25001335 COTTER PIN
  No longer available

18 O-Ring 00Q20001144 No longer available

• 00Q20001144 O-Ring
  No longer available

19 SCREW, FLAT HEAD 4*12 00Q20001163 No longer available

• 00Q20001163 SCREW, FLAT HEAD 4*12
  No longer available

20 SCREW, FLAT HEAD 5*12 00Q20001164 No longer available

• 00Q20001164 SCREW, FLAT HEAD 5*12
  No longer available

21 SCREW, FLAT HEAD 6*30 00Q20001165 No longer available

• 00Q20001165 SCREW, FLAT HEAD 6*30
  No longer available

22 NUT, RING 16MM 00Q20001170 No longer available

• 00Q20001170 NUT, RING 16MM
  No longer available
