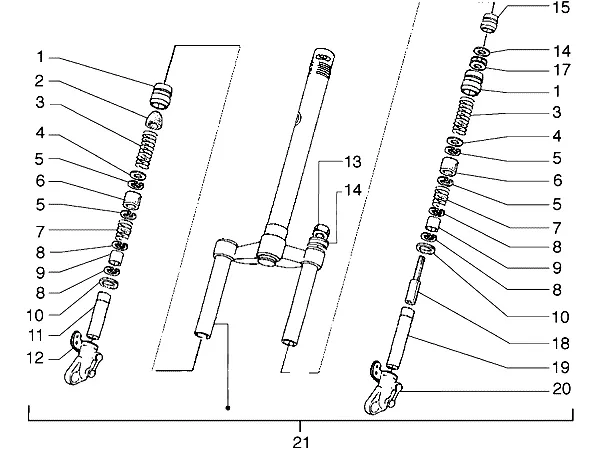

Exploded view — Front Fork

Products

1 Sleeve 561917 No longer available

• 561917 Sleeve Quantity needed: 2
  No longer available

2 Pad 561926 No longer available

• 561926 Pad
  No longer available

3 Spring 561925 No longer available

• 561925 Spring Quantity needed: 4
  No longer available

4 Sleeve plug 561924 No longer available

• 561924 Sleeve plug Quantity needed: 2
  No longer available

5 Seeger Available 561922

•

  Snap-in Ring Piaggio Group · 561922 · Quantity needed: 2 Available

  € 5,25

  Add to cart

6 Bushing 561927 No longer available

• 561927 Bushing Quantity needed: 2
  No longer available

7 Spring 562789 No longer available

• 562789 Spring Quantity needed: 2
  No longer available

8 Seeger Available 561919

•

  Locking Ring Piaggio Group · 561919 · Quantity needed: 4 Available

  € 5,25

  Add to cart

9 Spacer Backorder 274468

•

  Sleeve Piaggio Group · 274468 · Quantity needed: 2 Backorder

  € 45,25

  Add to cart

10 Fork oil seal Available 564236

•

  Fork Seal 30x39/43x12 mm Piaggio Group · 564236 · Quantity needed: 2 Available

  € 33,26

  Add to cart

11 Fork tube Right Available 561916

•

  Front Forks left Piaggio Group · 561916 Available

  € 33,19

  Add to cart

12 Leg 494633 No longer available

• 494633 Leg
  No longer available

14 Nut 494695 No longer available

• 494695 Nut Quantity needed: 2
  No longer available

15 Mounting drift 561929 No longer available

• 561929 Mounting drift
  No longer available

17 Nut 562001 No longer available

• 562001 Nut
  No longer available

18 Damper cartridge 561928 No longer available

• 561928 Damper cartridge
  No longer available

19 LH hub 561915 No longer available

• 561915 LH hub
  No longer available

20 Leg 494632 No longer available

• 494632 Leg
  No longer available

21 Front fork 600858 No longer available

• 600858 Front fork
  No longer available
