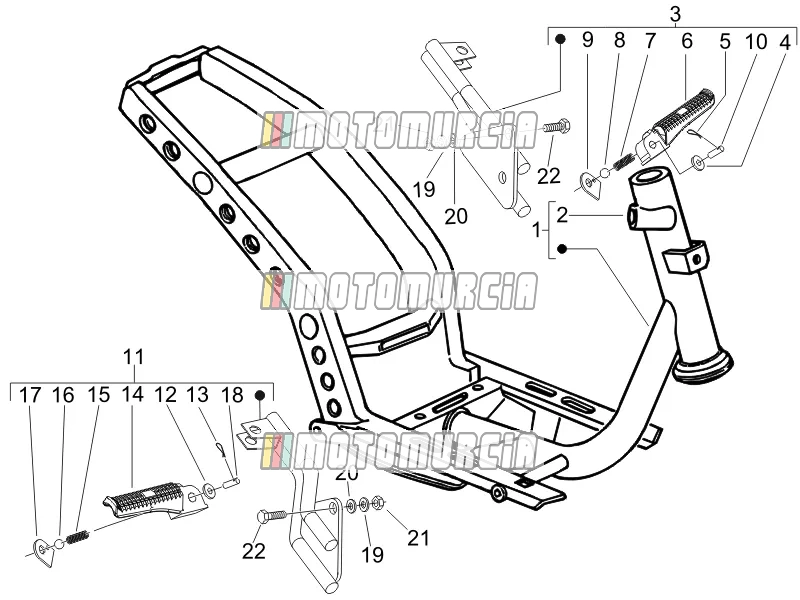

Exploded view — Frame/bodywork

Products

1 Frame 6206885 No longer available

• 6206885 Frame Quantity needed: 2
  No longer available

2 Lock body Available 259420

•

  Lock Mounting Piaggio Group · 259420 · Quantity needed: 2 Available

  € 17,21

  Add to cart

3 Footrest Backorder 573629

•

  Footrest left Piaggio Group · 573629 · Quantity needed: 2 Backorder

  € 110,47

  Add to cart

4 Washer Available 003058

•

  Washer 15x8,4x1,5 mm Piaggio Group · 003058 · Quantity needed: 2 Available

  € 1,84

  Add to cart

5 Elastic spring Available 259933

•

  Split Pin Piaggio Group · 259933 · Quantity needed: 2 Available

  € 0,99

  Add to cart

6 Foot rest 574226 No longer available

• 574226 Foot rest Quantity needed: 2
  No longer available

7 Return spring 295590 No longer available

• 295590 Return spring Quantity needed: 2
  No longer available

8 Ball D6 295591 No longer available

• 295591 Ball D6 Quantity needed: 2
  No longer available

9 Rubber mat stop foot rest Available 573956

•

  Washer Piaggio Group · 573956 · Quantity needed: 2 Available

  € 1,40

  Add to cart

10 Pin Available 295593

•

  Bolts Piaggio Group · 295593 · Quantity needed: 2 Available

  € 5,43

  Add to cart

11 Footrest 573630 No longer available

• 573630 Footrest Quantity needed: 2
  No longer available

14 Foot rest Available 574227

•

  Footrest right Piaggio Group · 574227 · Quantity needed: 2 Available

  € 9,92

  Add to cart

19 Washer (spring) Available 016408

•

  Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 · Quantity needed: 4 Available

  € 1,84

  Add to cart

20 Washer Available 709077

•

  Washer Piaggio Group · 709077 · Quantity needed: 4 Available

  € 0,99

  Add to cart

21 Nut Available 020108

•

  Standard nut Piaggio Group · 020108 · Quantity needed: 4 Available

  € 0,99

  Add to cart

22 Screw Available 031116

•

  Screw M8x16 Piaggio Group · 031116 · Quantity needed: 4 Available

  € 2,18

  Add to cart
