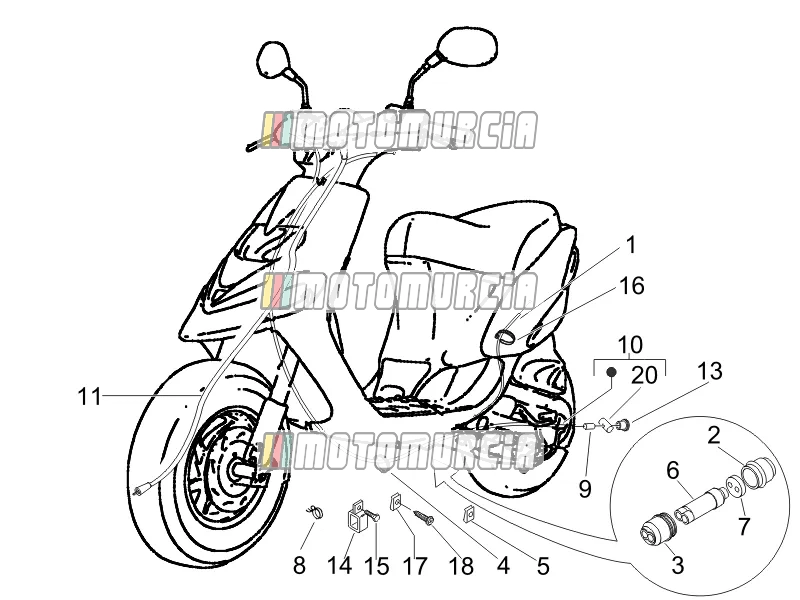

Exploded view — Transmissions

Products

1 Gas control transmission Available 268403

•

  Oil pump cable Piaggio Group · 268403 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 5,41

  Add to cart

2 Splitter lower protection Available 271976

•

  Rubber bellows Piaggio Group · 271976 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 6,27

  Add to cart

3 Splitter upper protection Available 271977

•

  Rubber bellows Piaggio Group · 271977 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 6,46

  Add to cart

4 Hose clamp Available 257134

• • Taiwan
  • iGET version


  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

5 Spring Available 217280

• 217280 Spring Quantity needed: 2


  Clamp for on-board tools Piaggio Group · 298729 ↻ Replaces 217280, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

6 Splitter Available 269571

•

  Cable splitter Piaggio Group · 269571 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 16,20

  Add to cart

7 Steath ward trailing Available 269572

•

  Brass Sleeve Piaggio Group · 269572 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 3,10

  Add to cart

8 Elastic spring Available 231590

•

  Clip Piaggio Group · 231590 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

9 Adjuster pin Available 179640

•

  Trunnion Piaggio Group · 179640 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 9,05

  Add to cart

10 Brake Cable Available 561151

•

  Brake cable rear Piaggio Group · 561151 Available · Shipped in 3–5 working days

  € 22,20

  Add to cart

11 Speedometer cable Available 561152

•

  Speedometer shaft Piaggio Group · 561152 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 27,49

  Add to cart

13 Registro freno posteriore Available 270310

•

  Adjustment Screw Piaggio Group · 270310 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 6,30

  Add to cart

14 Hose clamp Available 216983

•

  Clamp Piaggio Group · 216983 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,63

  Add to cart

15 Screw Available 414838

• • iGET version


  Screw M6x35 Piaggio Group · 414838 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

16 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart

17 Plate Available 564497

• • Type approval ZD4TGB***


  Plate Piaggio Group · 564497 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

18 Screw Available B016774

•

  Hexagon Screw M6x25 Piaggio Group · B016774 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

20 Bush Available 266040

•

  Sleeve Piaggio Group · 266040 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart
